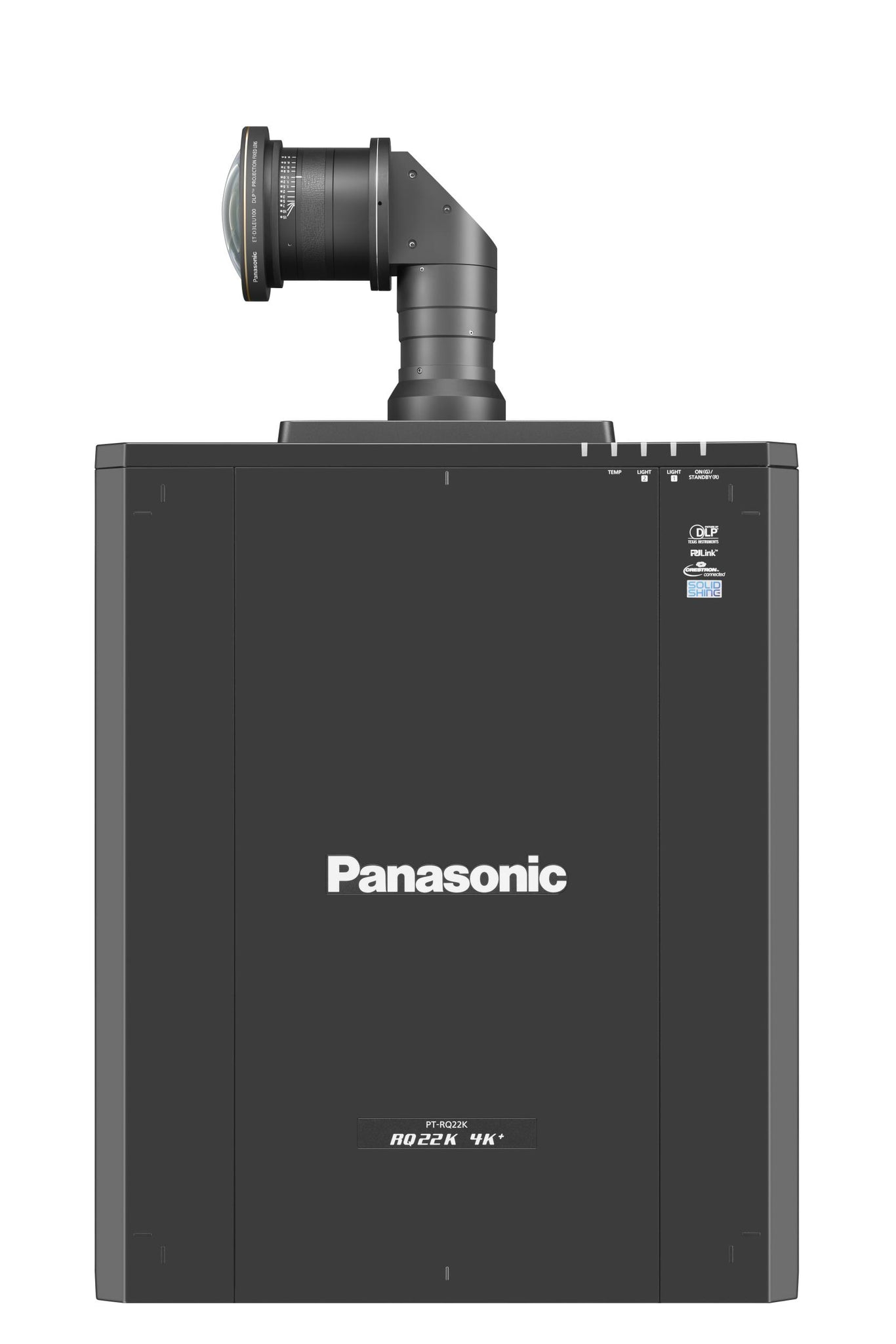

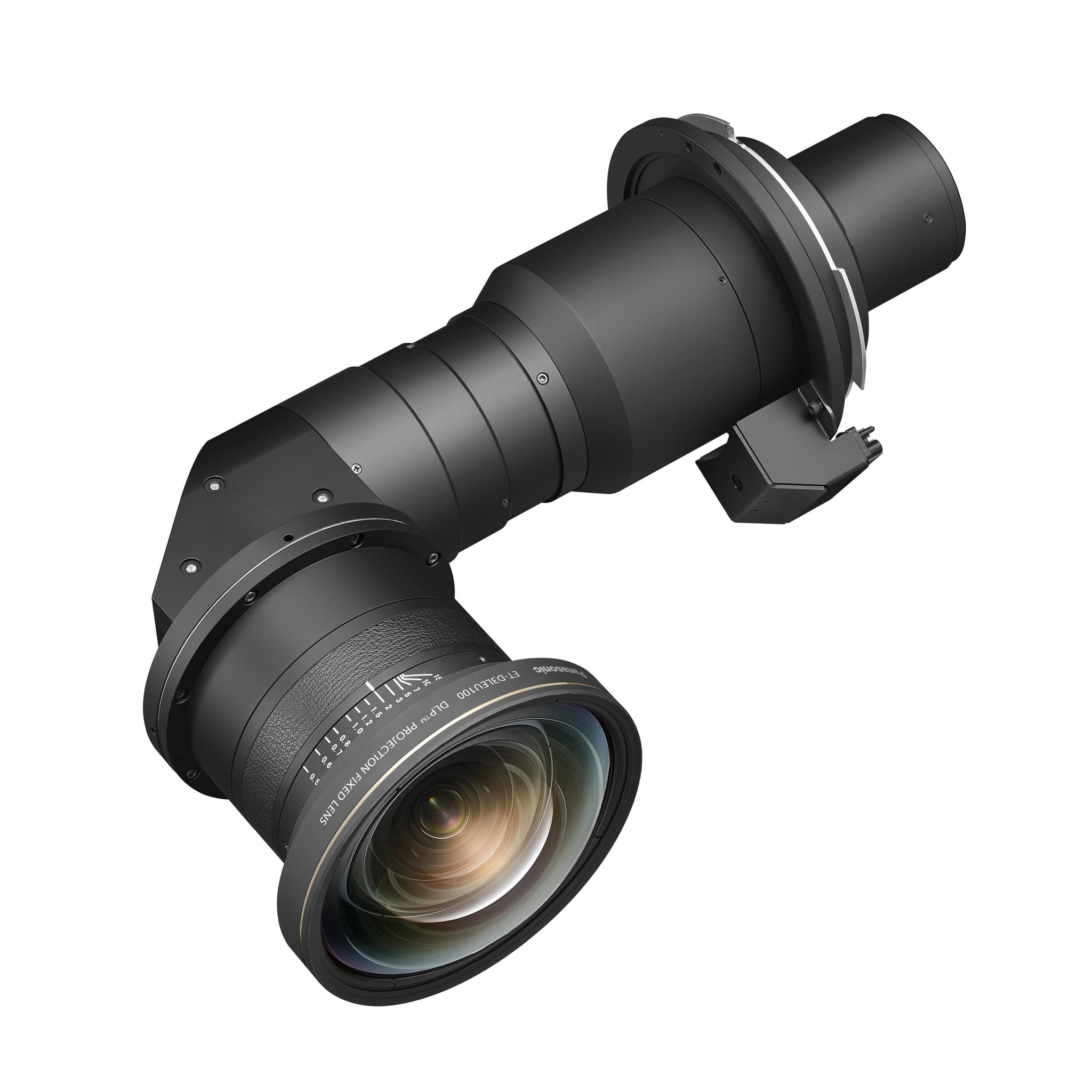

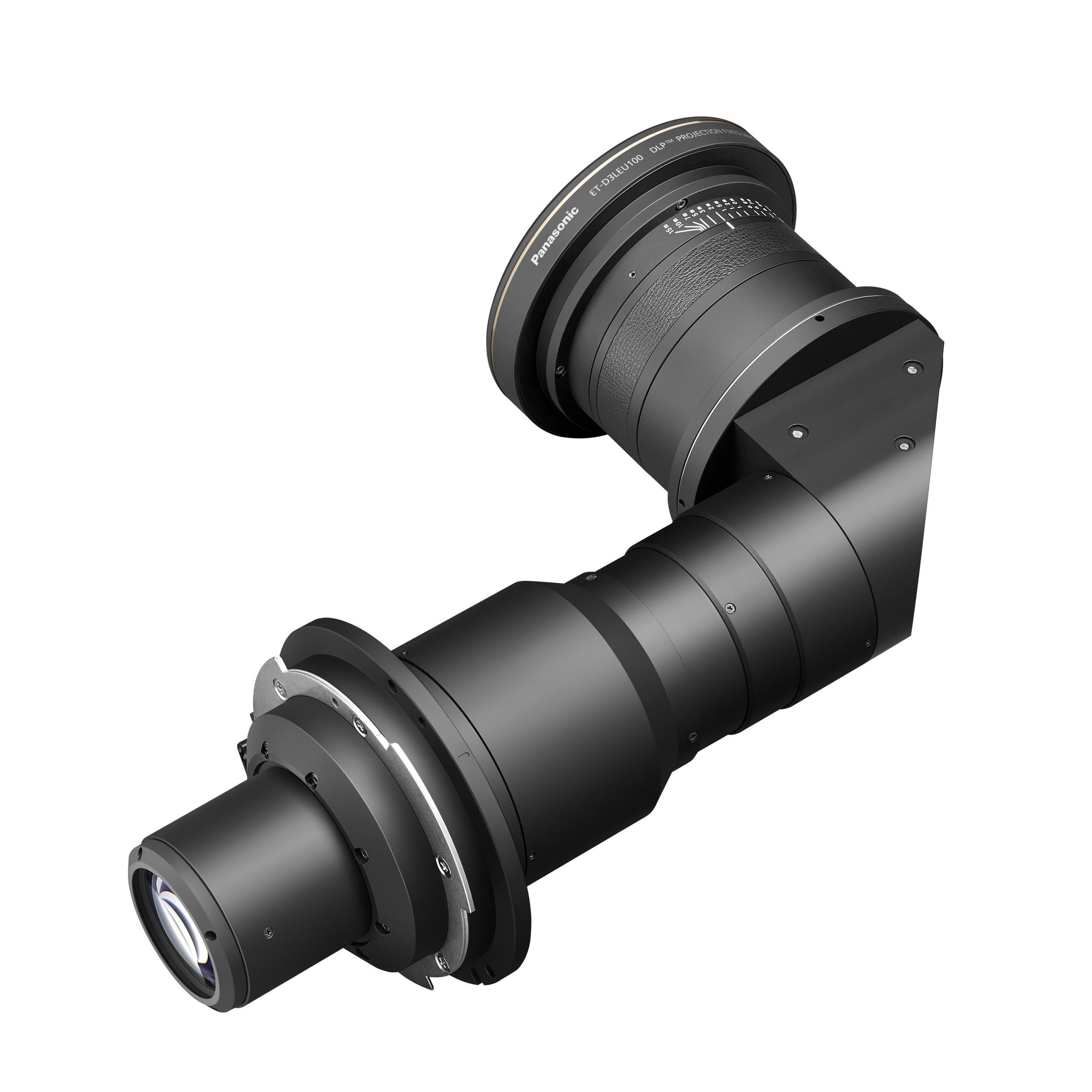

The Panasonic ET-D3LEU101 is an ultra‑short‑throw, 90° periscope lens for select Panasonic large‑venue projectors. It delivers a 0.37:1 throw ratio on PT‑RQ35K/RZ34K and 0.447:1 on PT‑RQ25K/RZ24K models, creating expansive images from very short distances. With a fixed 8.0 mm focal length and bright f/2.5 aperture, it maintains uniform sharpness and brightness with minimal distortion, even in tight installations. The compact, L‑shaped optical path helps preserve audience sightlines and enables discreet placement close to the screen for low ceilings, rear projection, and creative floor or wall mapping.
Motorised horizontal and vertical lens shift streamlines setup and fine alignment after installation, reducing the need to physically move the projector. Its robust design suits both permanent venues and touring rigs where reliability and repeatable accuracy are essential. When conventional lenses cannot achieve the required image size due to space constraints, the ET‑D3LEU101 unlocks high‑impact visuals without compromise.
Ideal for museums, galleries, immersive attractions, corporate display suites, and live events where space is limited and precise imaging is critical.
Includes
- Panasonic ET-D3LEU101 UST Lens 0.37:1 for RQ/RZ 35K & 25K
