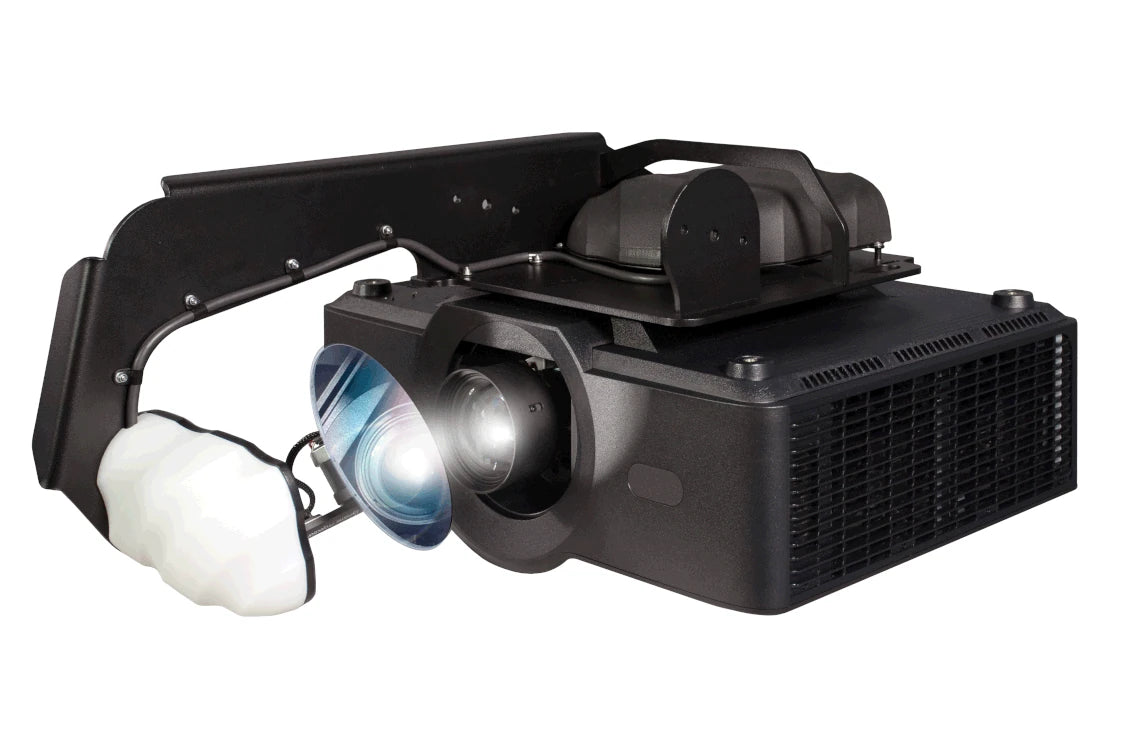

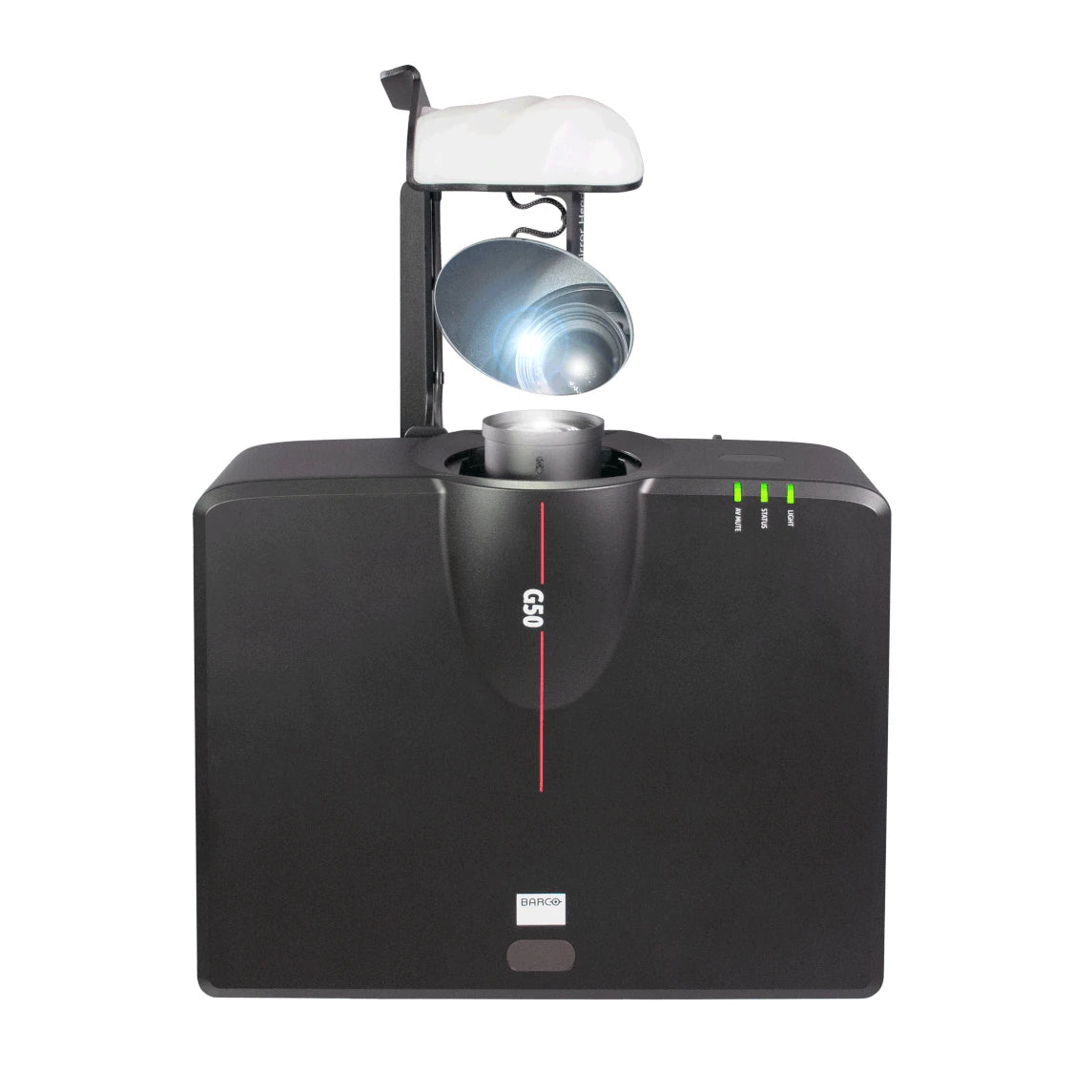

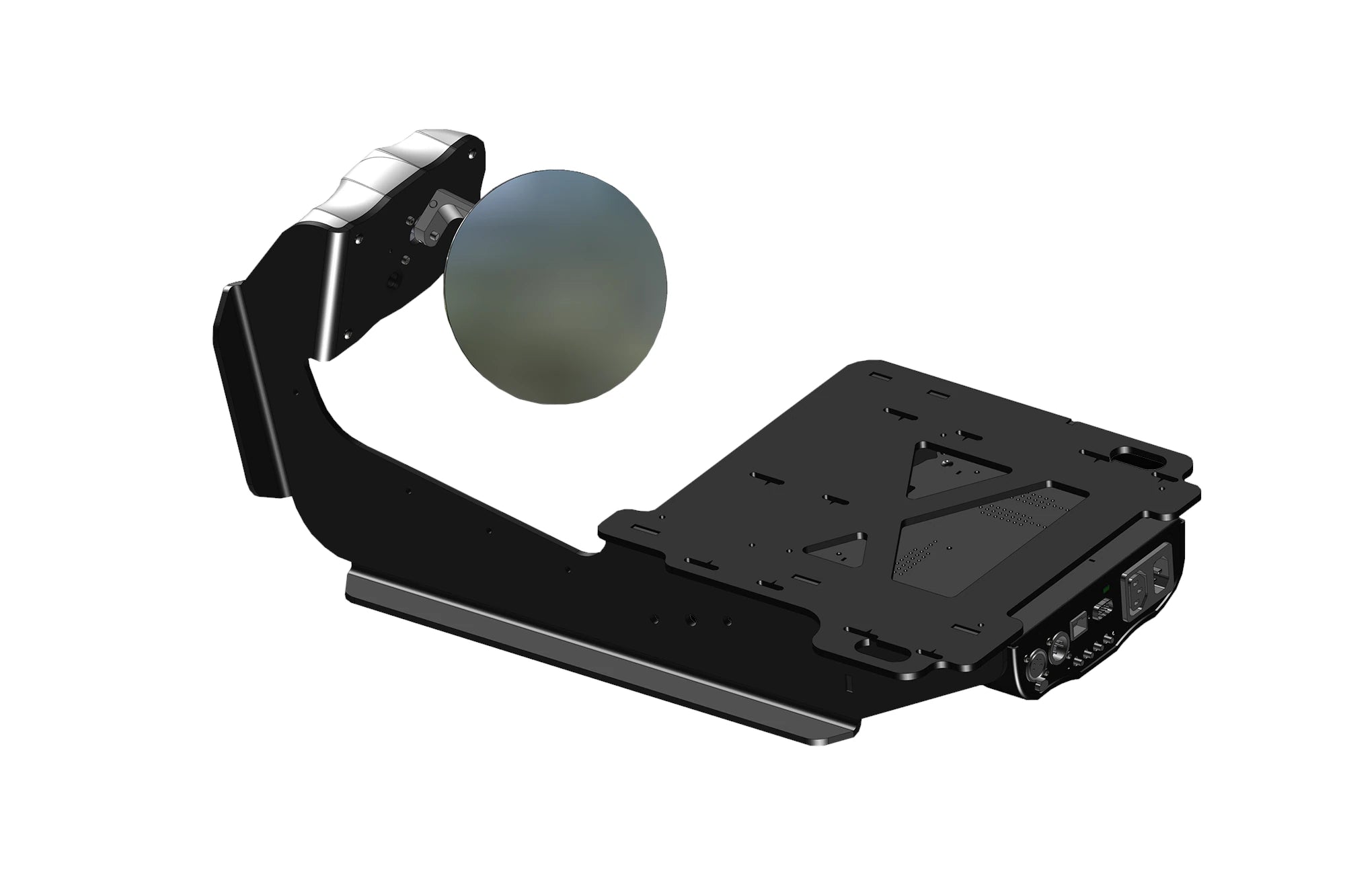

The Dynamic Projection Institute Mirror Head MH09-G50L adds precise, motorised mirror movement to Barco G50 projectors, allowing you to redirect imagery across multiple targets without moving the projector. Purpose-built for G50 models (G50-W6, G50-W7, G50-W8), it supports G‑Lens options from 1.22–5.50:1, with a recommended throw ratio above 1.40:1 for maximum sweep. High‑resolution micro‑stepping drives deliver 16‑bit PAN/TILT with around 0.01° positioning accuracy and under 0.03° absolute repeatability, enabling reliable, repeatable show cues and kinetic projection.
Integration is straightforward: control via 14‑channel DMX‑512, Art‑Net, HTTP, MQTT, plus integrated RS‑232 projector control. The DPCC web interface enables simple browser-based setup, calibration and operation. Built for professional environments, it features a front‑surface mirror with approximately 98% reflectance, a robust powder‑coated steel chassis, passive fanless cooling and self‑calibrating positioning.
Physical data: 486 × 661 × 285 mm; Mirror Head 9 kg; typical combined weight with projector approximately 21 kg. Operating range 5–35 °C, 20–80% non‑condensing. Universal power 100–240 V, 50–60 Hz. Ideal for immersive exhibits, architectural projection, museums, retail and live events where one projector must serve multiple, precisely defined projection areas.
Includes
- Dynamic Projection Mirror Head MH09-G50L for Barco G50
