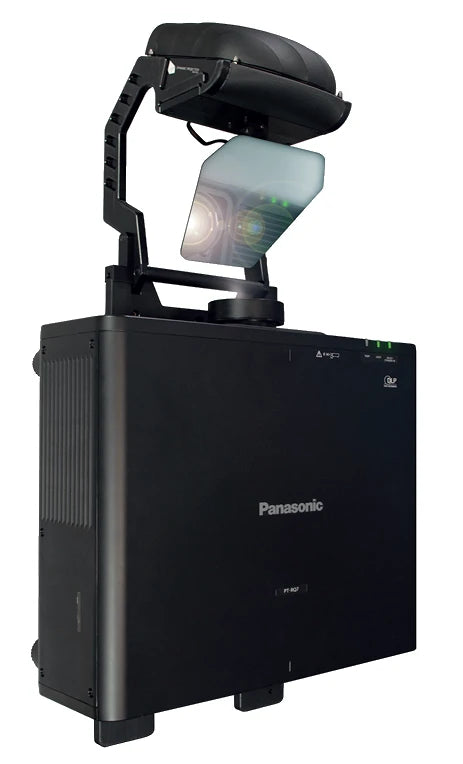

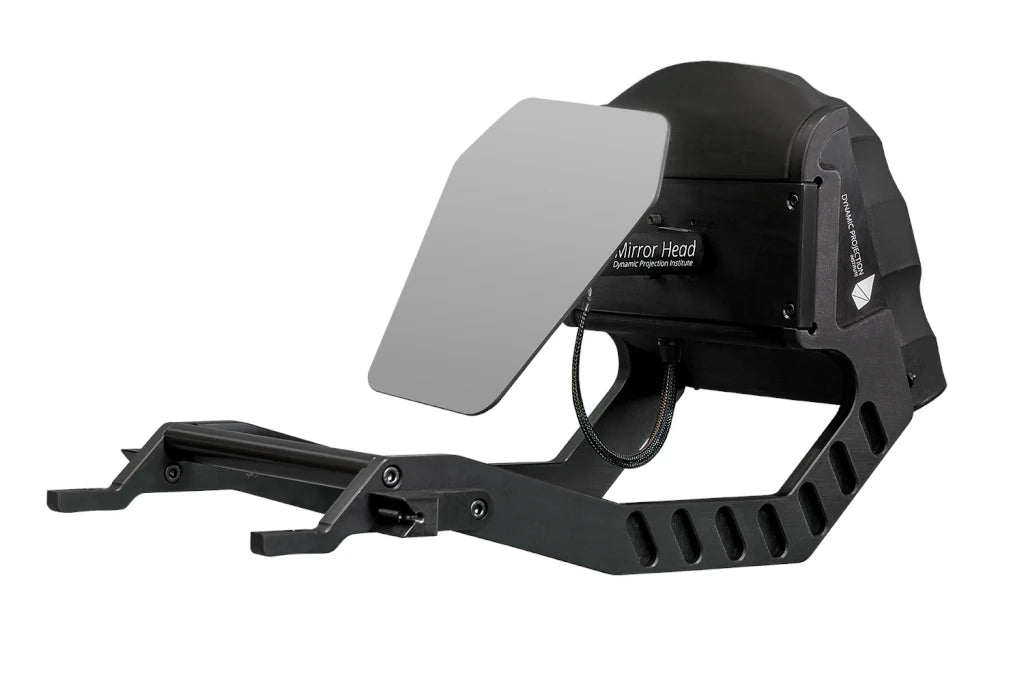

The Dynamic Projection Institute Mirror Head 47 – Rental Edition is a precision mirror module for Panasonic PT-REQ and PT-REZ projectors, adding high‑accuracy 16‑bit PAN/TILT control for dynamic beam redirection. Designed for professional rental, touring and event use, it enables repositionable and repeatable projections across multiple surfaces with movement precision of around 0.01° and absolute repeatability under 0.03°. A self‑calibrating mechanism maintains long‑term accuracy, while maintenance‑free direct‑drive micro‑stepping motors deliver smooth, reliable motion. Integration is straightforward via DMX‑512 over 14 channels, Art‑Net (RJ45) and RS232, with DMX IN/OUT for streamlined daisy‑chaining. An on‑board LED display supports local configuration and firmware updates are handled via USB. The front surface mirror offers approximately 98% reflectivity for crisp imaging, and passive cooling keeps operation quiet—ideal for museums, exhibitions and immersive environments. Built in Austria with an anodised lightweight metal chassis, the MH47 Rental Edition is engineered for fast, secure mounting and compatibility with professional rigging and projector frames. Perfect for projection mapping, live events, digital art and architectural projection where accuracy, speed and reliability matter.
Includes
- MIRROR HEAD 47 - RENTAL EDITION
STAGE16.5.100.600
