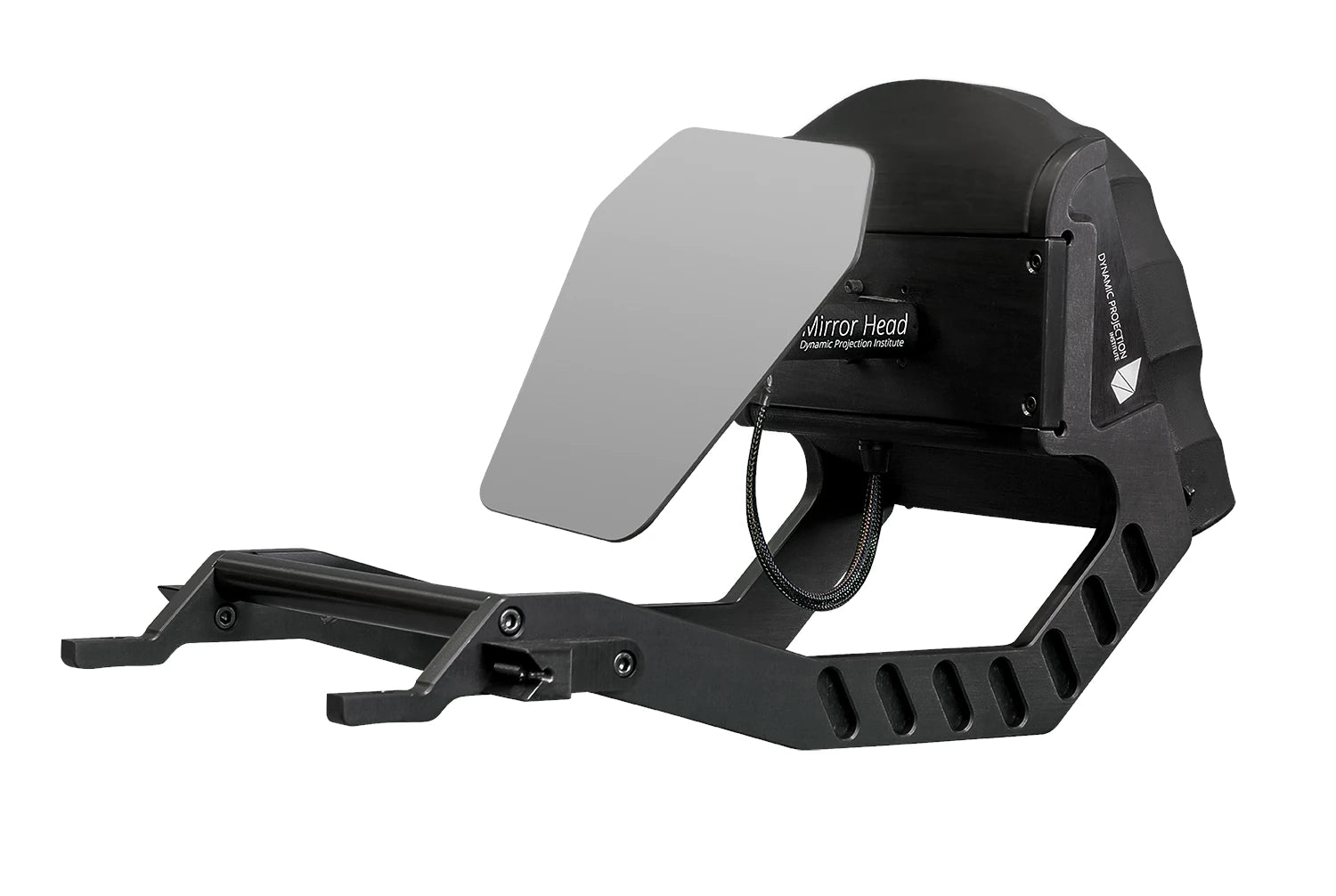

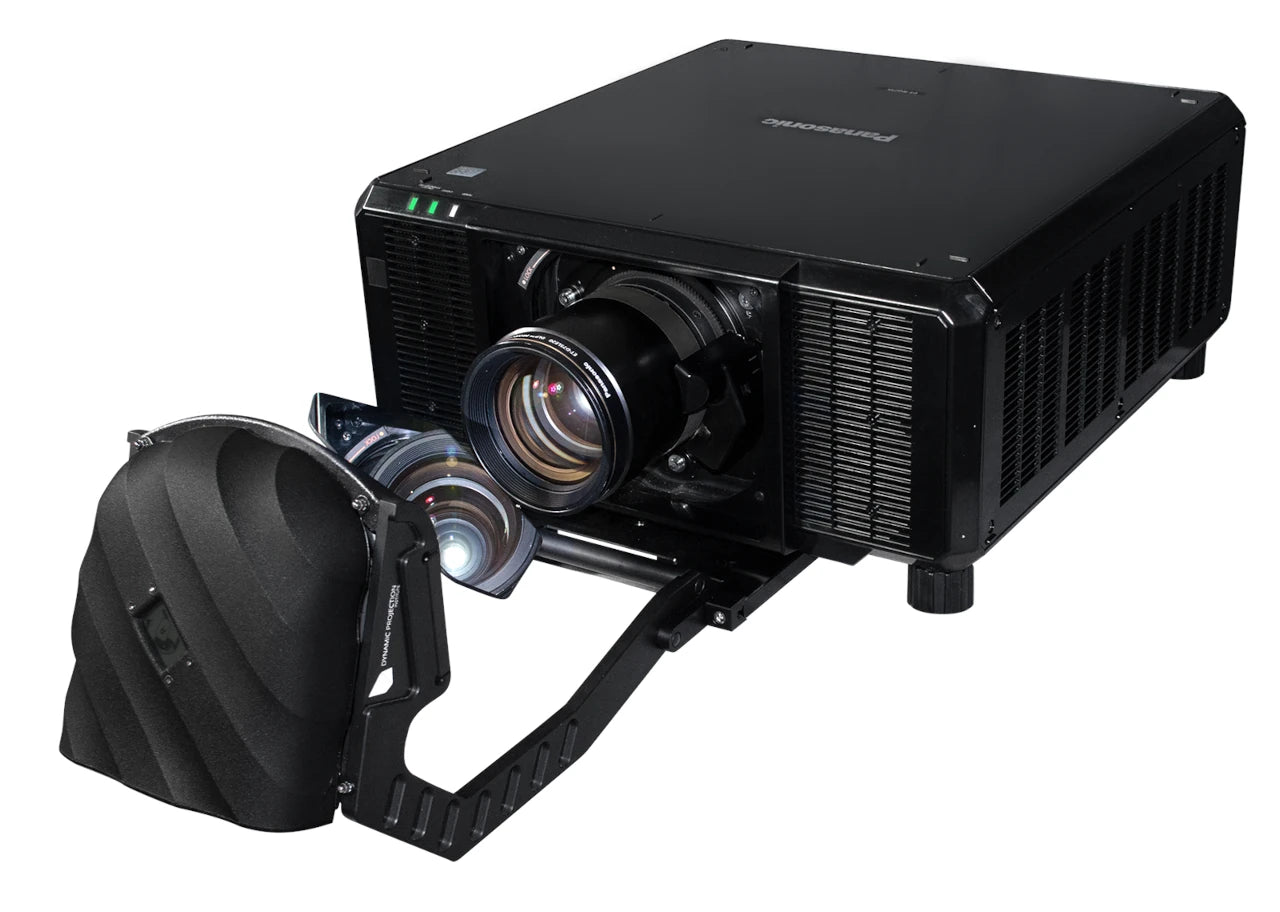

The Mirror Head 43 – Rental Edition from Dynamic Projection Institute is a precision mirror module for Panasonic PT‑RQ25K series projectors. It adds high‑resolution 16‑bit pan/tilt control to dynamically redirect and position projections with repeatable accuracy. Designed for rental, touring and large‑scale events, the robust construction integrates easily with projector frames and rigging, enabling fast set‑ups for projection mapping, immersive environments and architectural displays.
Control is flexible and show‑ready, with DMX‑512, Art‑Net over RJ45, HTTP control and MQTT publish/subscribe supported, plus RS‑232 for direct projector control. The DPCC web interface streamlines configuration of movement profiles, cues and system parameters. A self‑calibrating mechanism maintains stable, repeatable mirror positioning, while a front‑surface mirror with approximately 98% reflectivity preserves image quality. Passive cooling keeps operation quiet. For best results, a minimum throw ratio of 1.40:1 is recommended. Made in Austria, the MH43 is built for dependable performance in demanding professional AV workflows.
Ideal for projection mapping, live events, immersive installations and fixed attractions using Panasonic PT‑RQ25K projectors.
Includes
- MIRROR HEAD 43 - RENTAL EDITION
