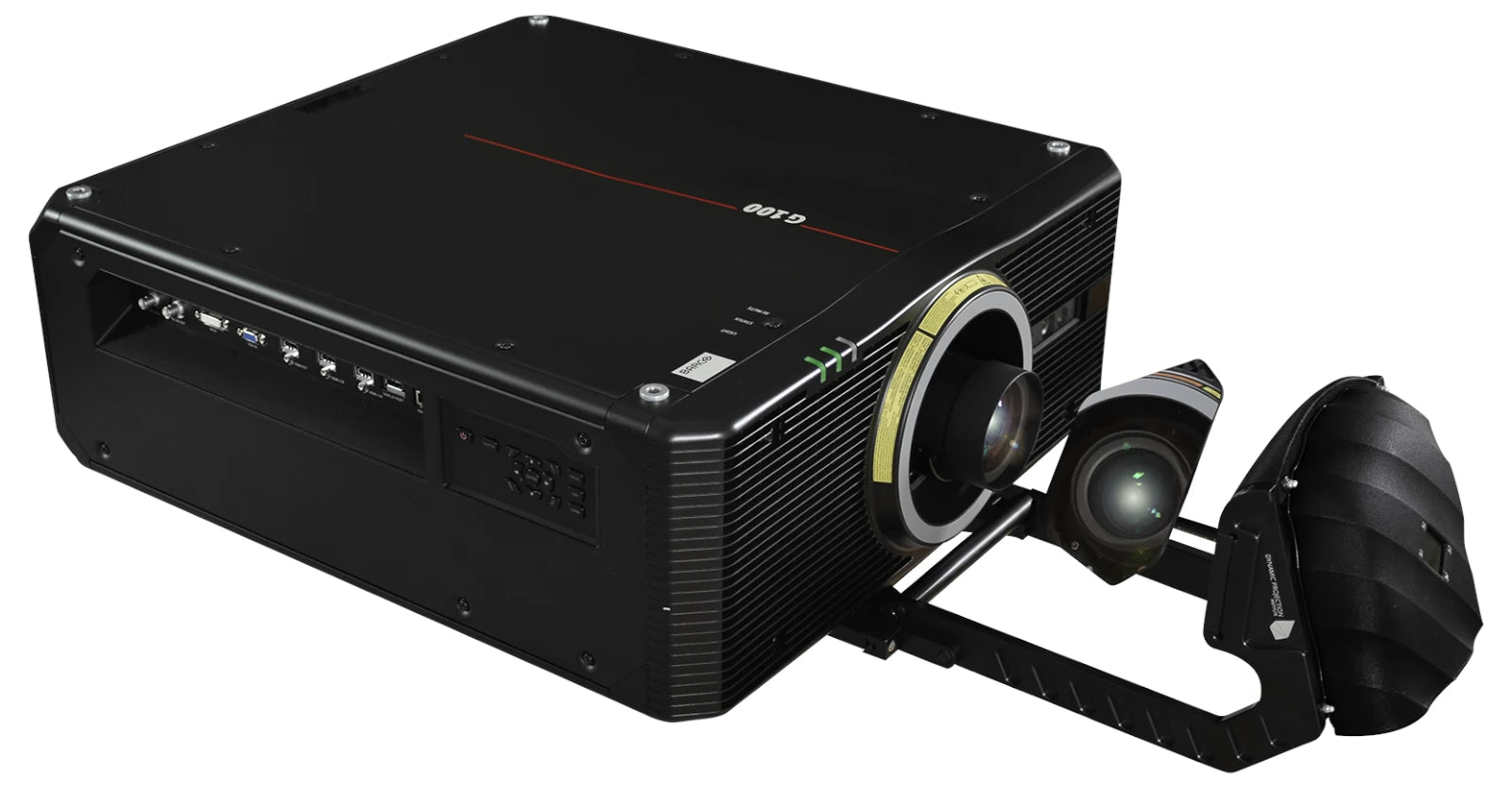

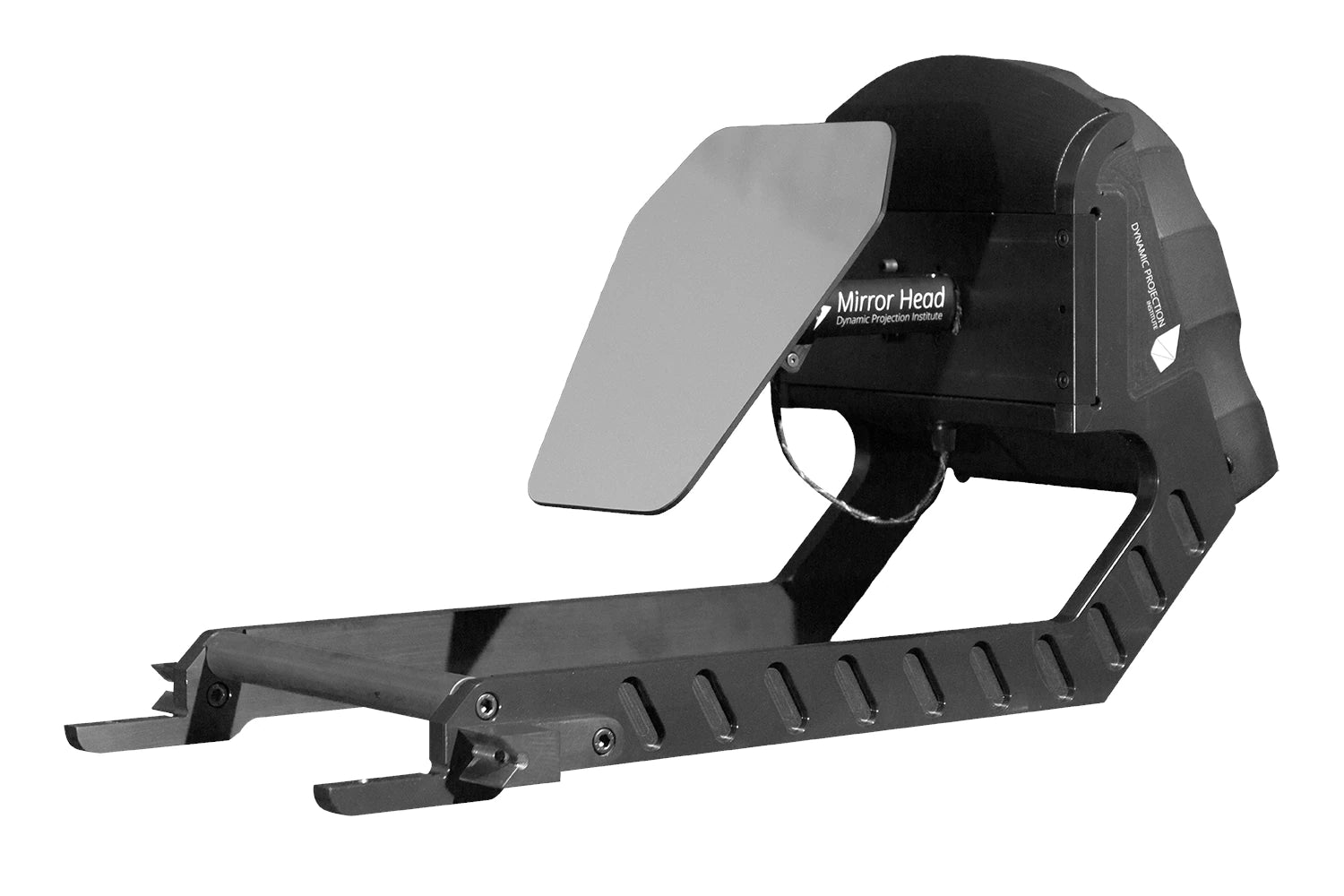

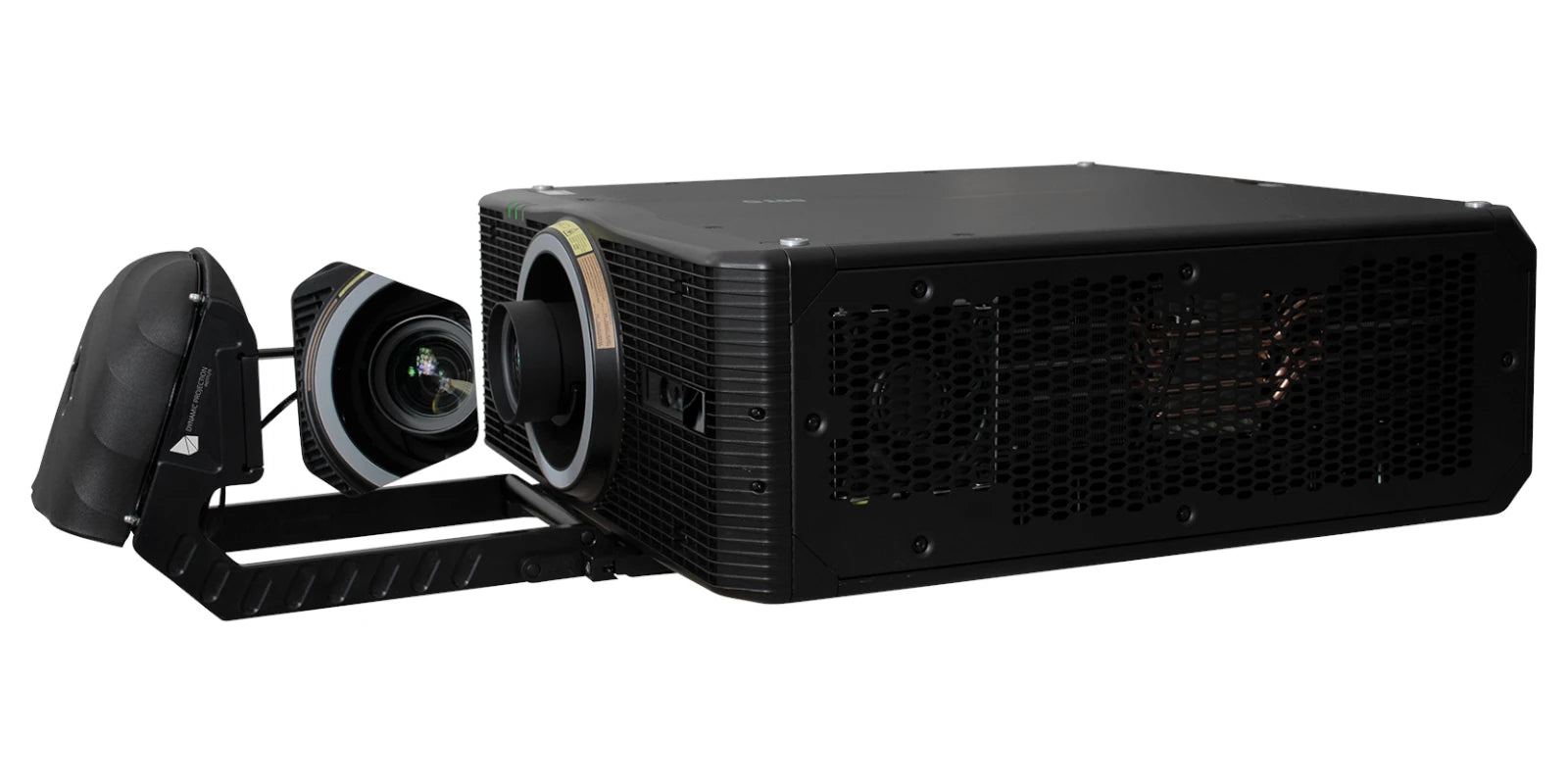

The Mirror Head 34 Rental Edition is a dynamic mirror module for Barco G100 projectors, adding precise 16‑bit pan/tilt control for moving and positioning projections with exceptional accuracy. Designed for professional rental, touring and live event workflows, it features self‑calibrating mirror positioning, repeatability better than 0.03°, and movement precision down to approximately 0.01°. Integration is straightforward via DMX‑512, Art‑Net over RJ45, HTTP control and MQTT publish/subscribe, with RS232 provided for direct projector control. Configuration and show management are handled through the DPCC web interface for fast setup and reliable operation on site. A specialised front‑surface mirror with around 98% reflectivity ensures efficient beam redirection and high image quality, while passive cooling inside the mirror head supports low‑noise performance. Engineered specifically for selected Barco G100 models, the MH34 is ideal for projection mapping, immersive environments, exhibitions and fast‑turnaround event installations. Dynamic Projection Institute recommends a minimum throw ratio of 1.40:1. Designed and manufactured in Austria, the Rental Edition is built for robust integration into frames and rigging systems, delivering flexible, repeatable projection experiences for touring and events.
Includes
- MIRROR HEAD 34 - RENTAL EDITION
STAGE16.5.100.400
