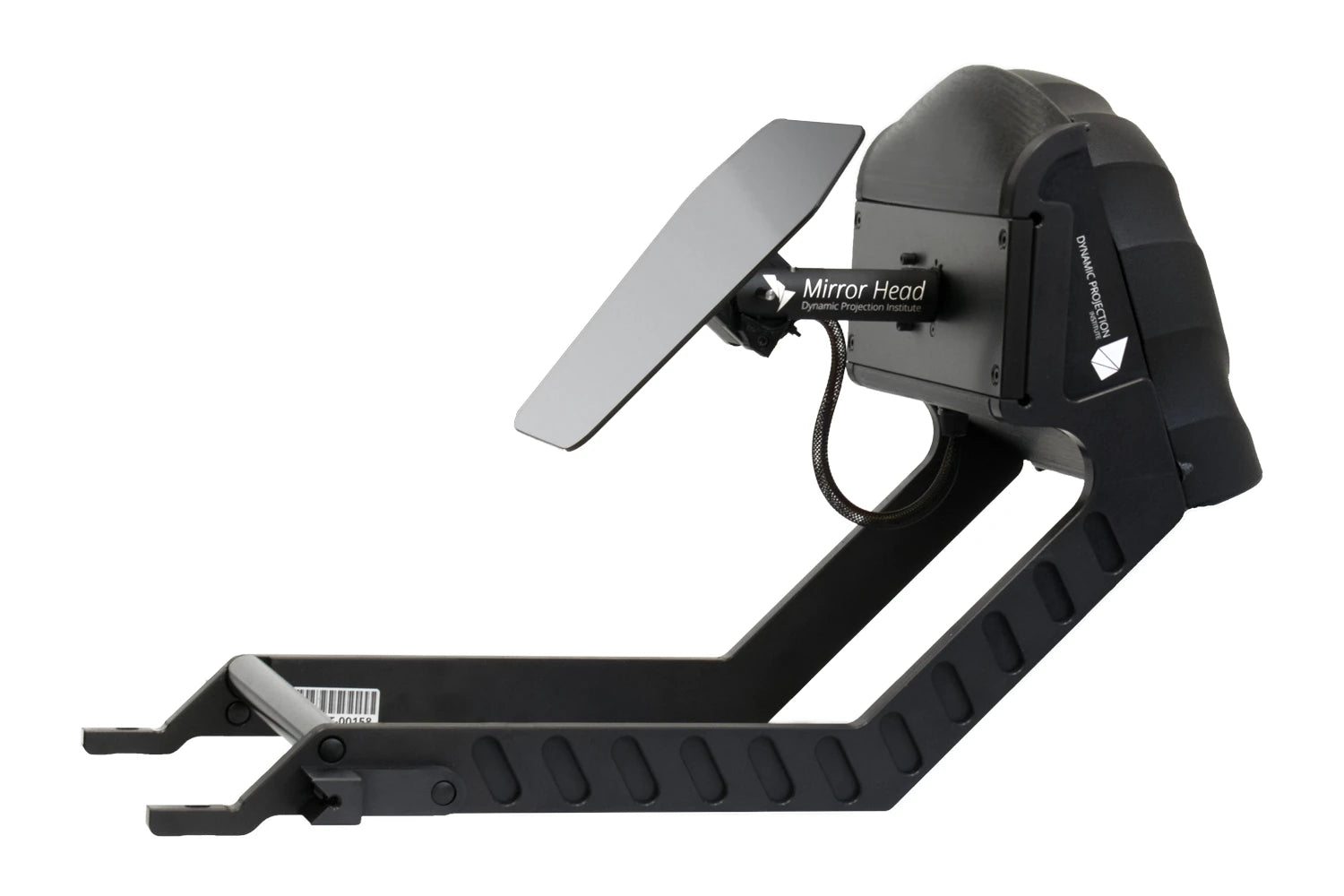

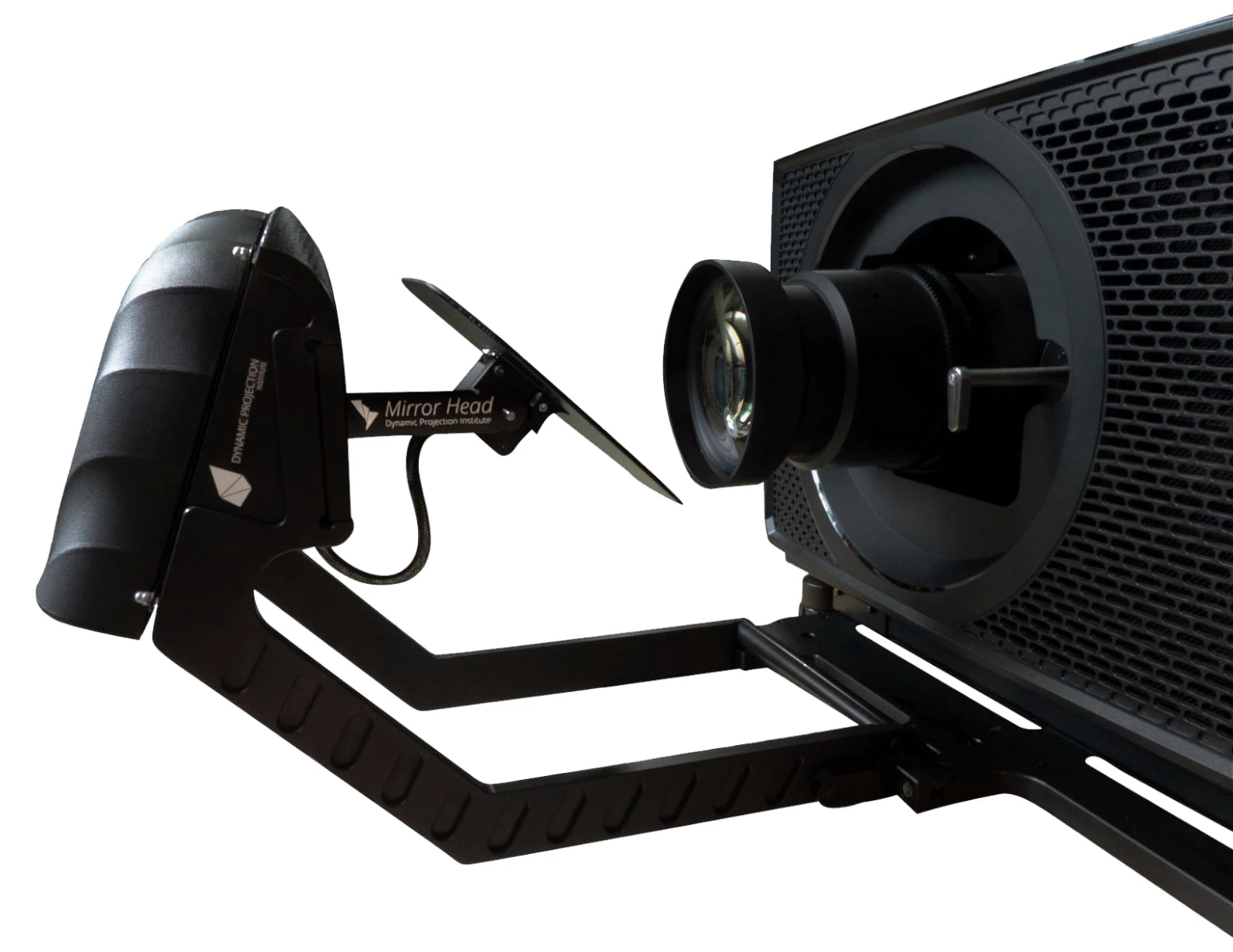

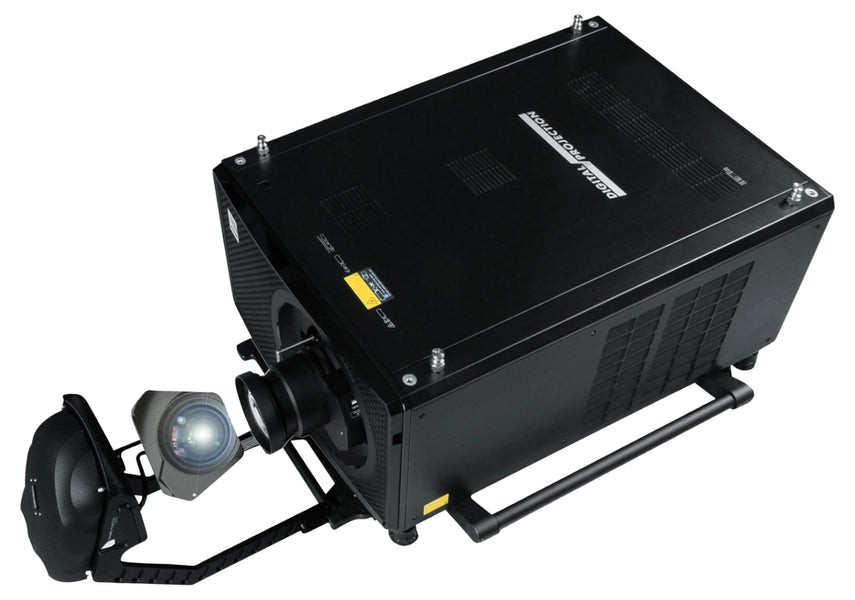

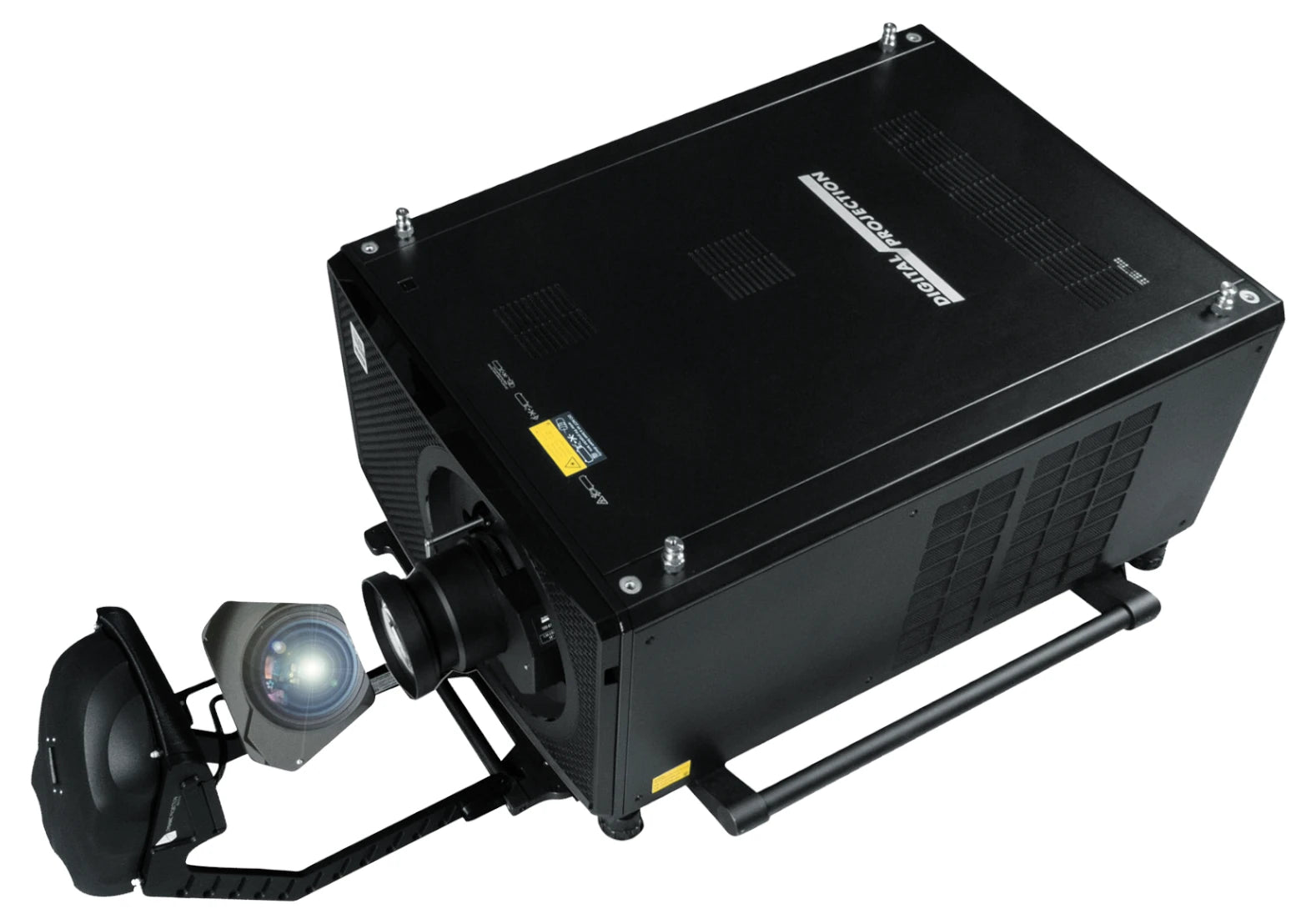

The Dynamic Projection Institute Mirror Head 33 – Rental Edition is a motorised mirror module designed for Digital Projection TITAN Laser projectors. It adds precision pan/tilt control to redirect and position projections dynamically in professional AV environments.
With high‑resolution 16‑bit pan/tilt control, the MH33 offers movement accuracy of around 0.01° and absolute repeatability of better than 0.03°, ensuring consistent cueing and alignment. A self‑calibrating mirror mechanism and maintenance‑free direct‑drive micro‑step motors deliver smooth, reliable operation over long deployments. Control is show‑ready via DMX‑512 across 14 channels with DMX IN/OUT, or over Art‑Net via RJ45 for integration into modern media networks. A specialised front‑surface mirror with approximately 98% reflectivity maintains image brightness and quality, while passive cooling eliminates internal fans for quiet performance. The Rental Edition construction supports quick mounting into professional frames and rigging systems.
Ideal for projection mapping, immersive installations, architectural projection and large‑scale live events, the MH33 excels wherever bright, mobile imagery is required. Recommended minimum throw ratio: 1.40:1. Designed and manufactured in Austria for demanding rental and touring applications.
Includes
- MIRROR HEAD 33 - RENTAL EDITION
STAGE16.6.100.900
