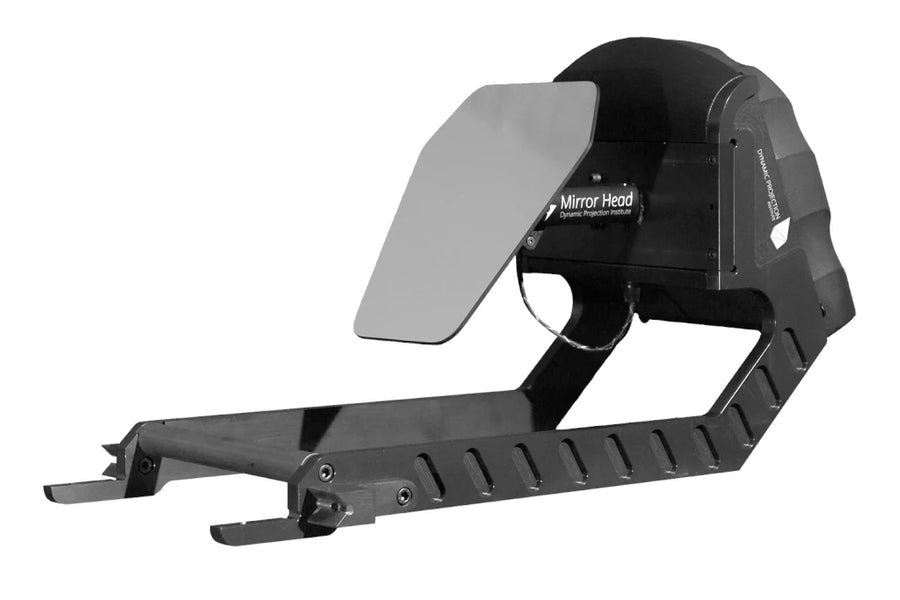

The Dynamic Projection Institute Mirror Head 21 – Rental Edition is a precision mirror system for Christie Boxer projectors, adding high‑accuracy pan/tilt control for dynamic projection placement. Engineered for the Boxer 2K20, 2K30, 4K20 and 4K30, it enables agile repositioning of content across multiple surfaces, ideal for projection mapping, large‑scale events and immersive environments.
The MH21 delivers 16‑bit pan/tilt with movement accuracy of around 0.01° and absolute repeatability under 0.03°, supported by self‑calibrating positioning and maintenance‑free direct‑drive micro‑step motors. Control is straightforward via 14‑channel DMX‑512, Art‑Net over RJ45 and RS232 projector control, with an onboard LED display and firmware updates via Mini‑USB. A specialised front‑surface mirror offers approximately 98% reflectance, while passive cooling ensures quiet operation.
Designed for touring and rental, the robust lightweight construction and snap‑in mounting speed up rigging and strike. Compatible Christie HB zoom lenses from 1.63–2.17:1 to 4.96–7.69:1 are supported, with optional MHZ‑LE8 for select long‑throw optics. Made in Austria for dependable performance in demanding professional AV.
Perfect for touring shows, trade fairs, architectural projection and complex media installations.
Includes
- MIRROR HEAD 21 - RENTAL EDITION
STAGE16.7.100.100
