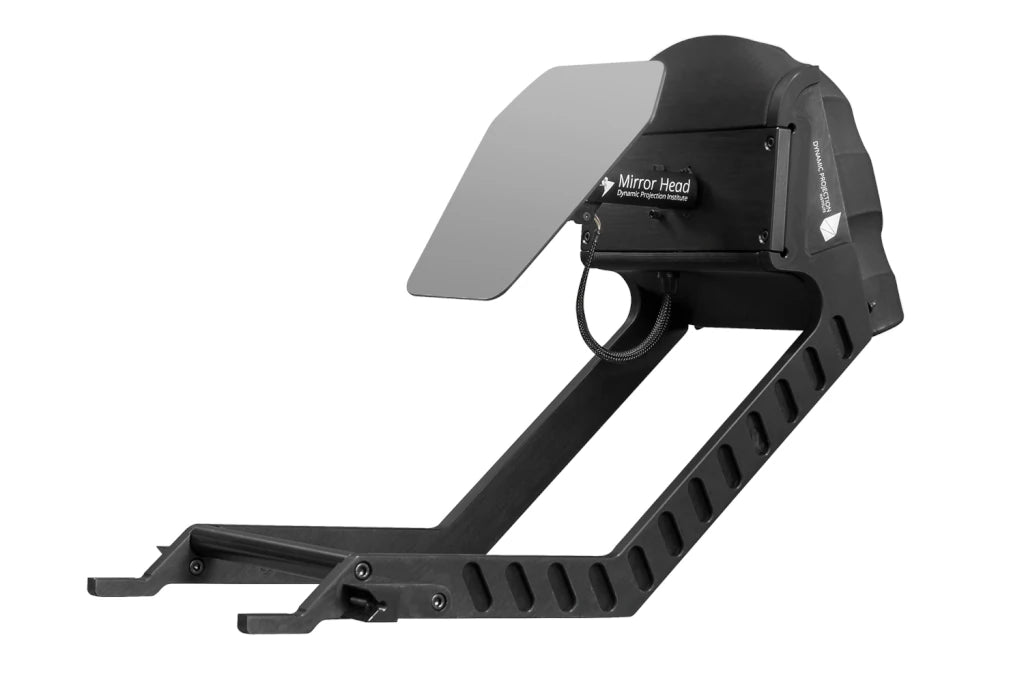

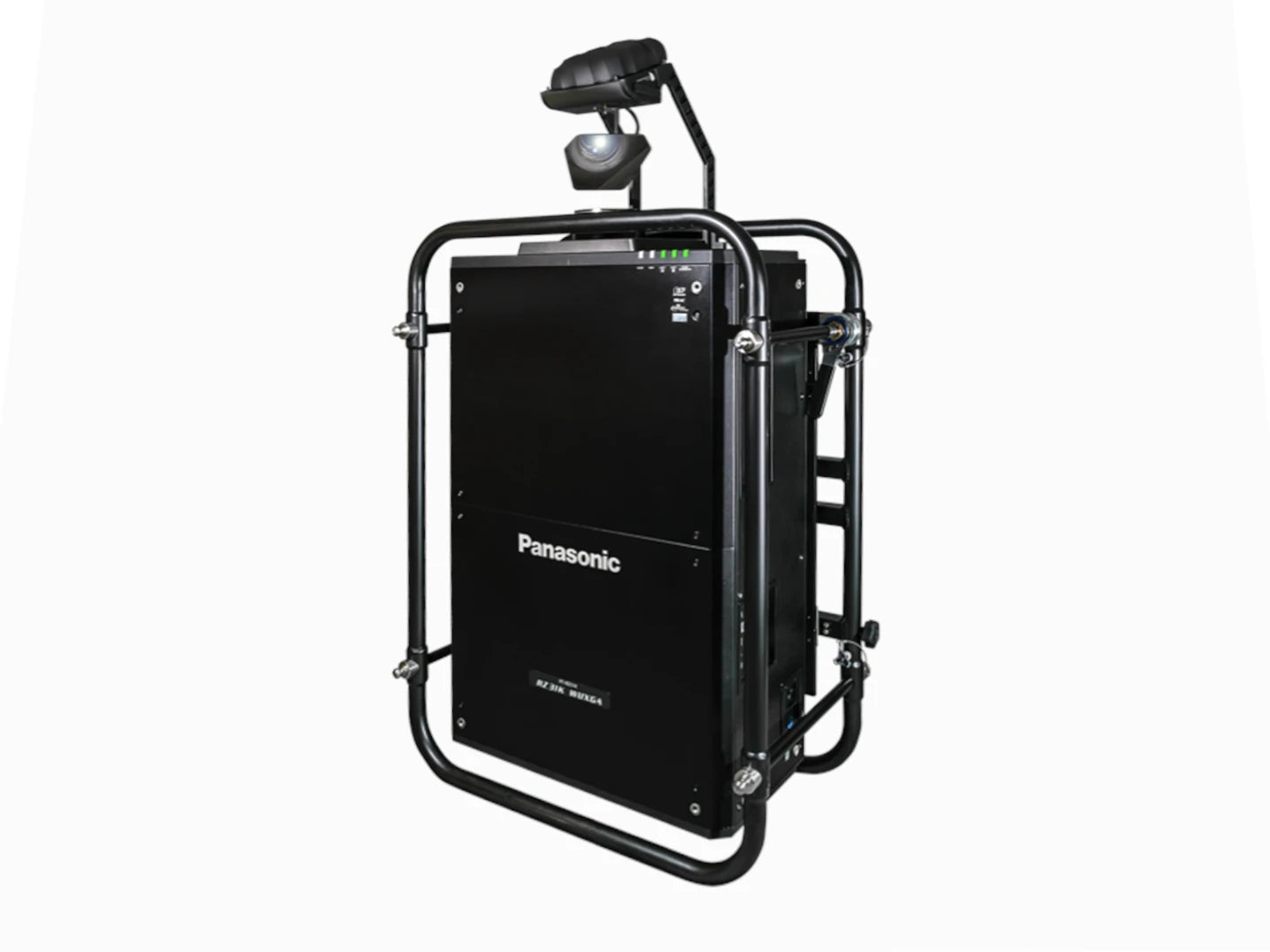

The Mirror Head 18 – Rental Edition from Dynamic Projection Institute is a high-precision, motorised mirror system for selected Panasonic 3‑Chip DLP projectors (PT‑RZ31K, PT‑RS30K, PT‑RQ32K). It adds accurate, repeatable PAN/TILT control to redirect and position bright projections dynamically across venues and surfaces. With 16‑bit control delivering movement accuracy of about 0.01° and absolute repeatability under 0.03°, the self‑calibrating mechanism supports reliable, show‑ready performance. Control is professional and flexible: DMX‑512 over 14 channels with DMX IN/OUT, Art‑Net via RJ45, plus RS232 for direct projector control. A maintenance‑free direct drive and on‑board LED display streamline setup and operation. The front‑surface mirror offers around 98% reflectivity, optimised for high‑brightness output, while passive cooling ensures quiet running. Designed for rental, touring and staging, the robust, anodised construction integrates with professional frames and rigging, featuring a rapid snap‑in mounting system and provisions for crane or custom installs. Compatible with Panasonic ET‑D75LE lenses; for certain variants a throw ratio of 1.60:1 or greater is recommended. Ideal for projection mapping, immersive environments, architectural projections and large‑scale live events.
Includes
- MIRROR HEAD 18 - RENTAL EDITION
STAGE16.7.100.100
