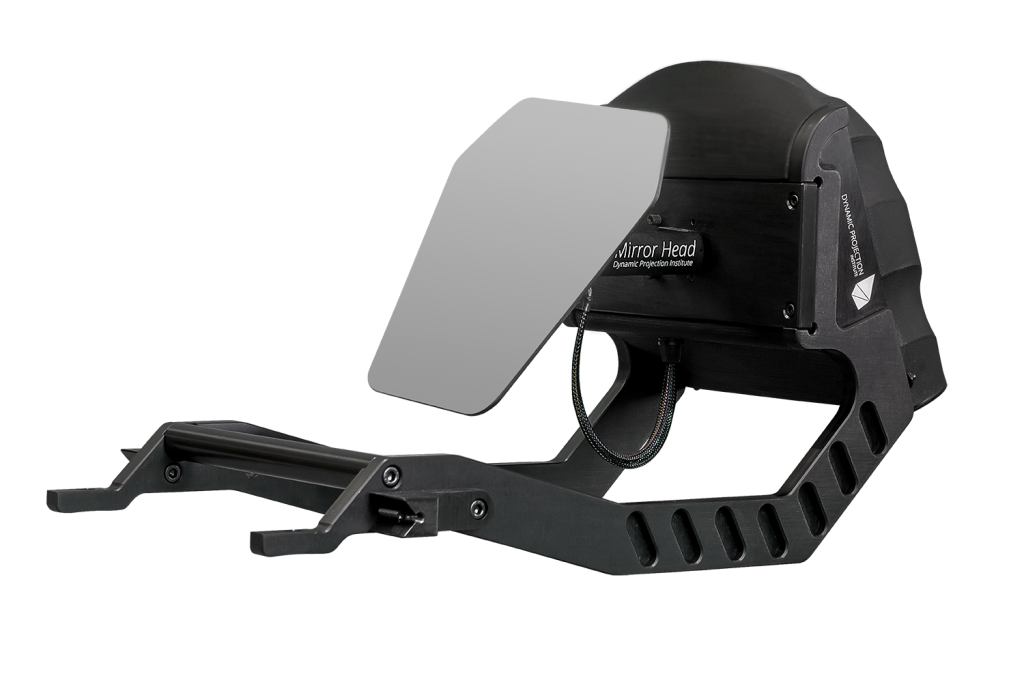

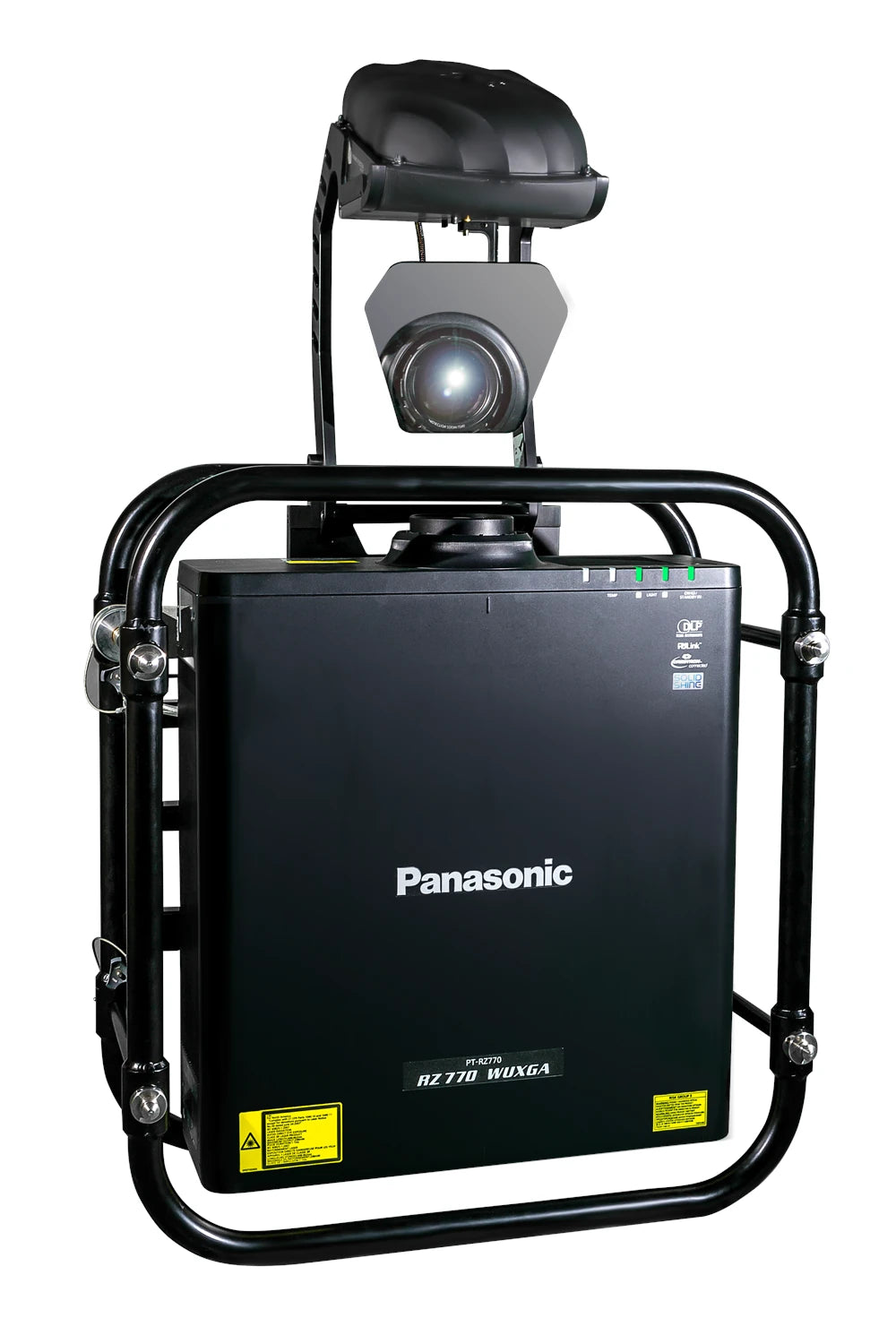

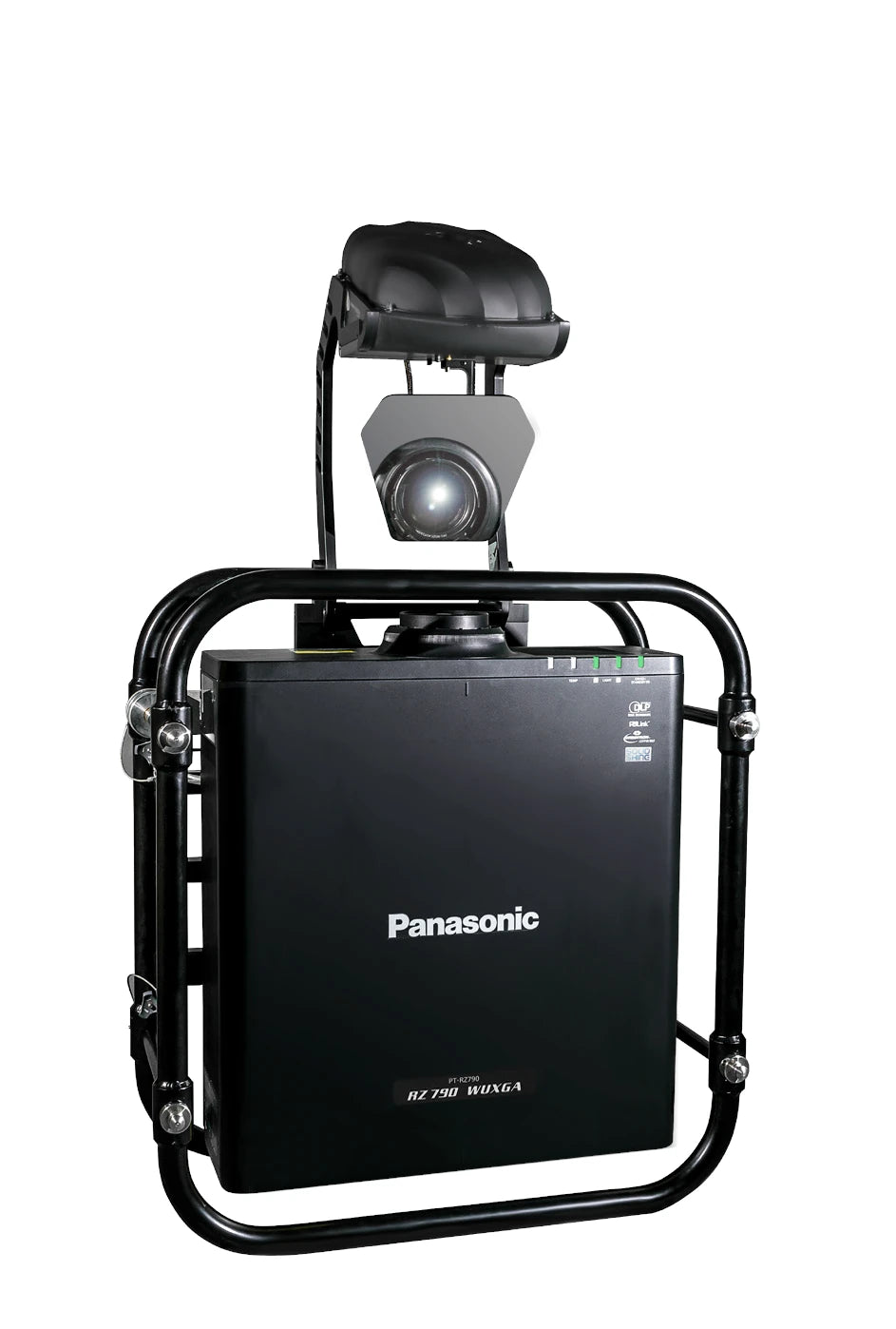

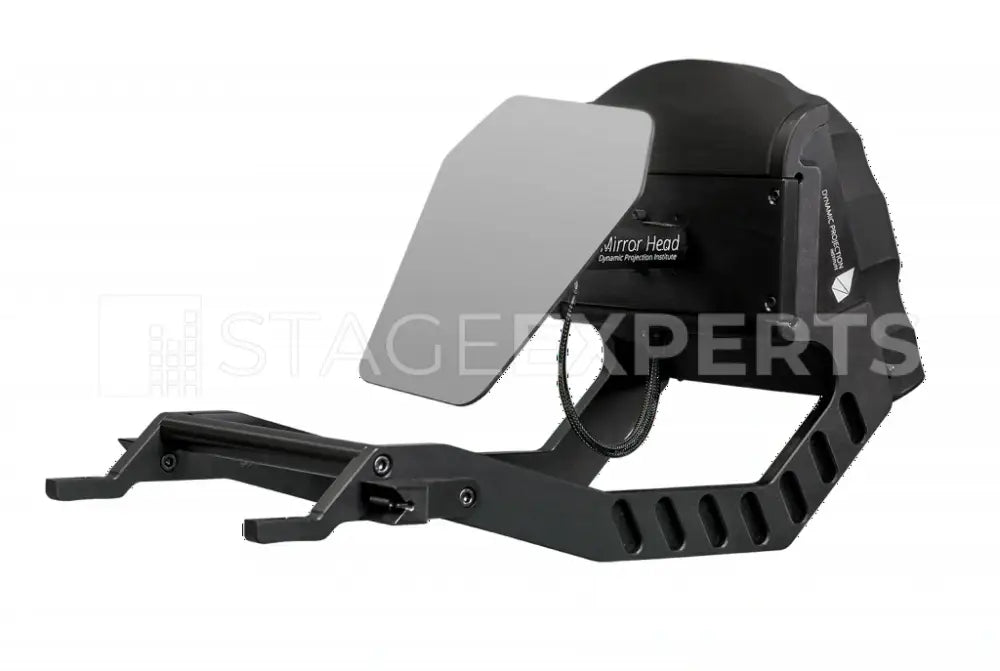

The Dynamic Projection Institute Mirror Head 17 Rental Edition transforms compatible Panasonic 1‑Chip DLP projectors into agile, precision-steered projection systems. A self-calibrating front-surface mirror (approx. 98% reflectivity) delivers efficient light use and crisp imaging, while 16‑bit pan/tilt control offers movement precision around 0.01° and repeatability better than 0.03°. Designed for touring and temporary installs, the Rental Edition features a robust anodised lightweight chassis, direct-drive mechanics with high‑resolution microstep motors, and a fast snap‑in mount that fits common projector frames including EVO P10, ET‑RFD91 and Rigtec X‑10. Control and integration are comprehensive: DMX‑512 across 14 channels, Art‑Net via RJ45, HTTP control, MQTT publish/subscribe, plus RS232 for direct projector control. The DPCC web interface simplifies setup of movement profiles, cues and show parameters, and passive cooling ensures low-noise operation within the mirror assembly. Compatible models include Panasonic PT‑RCQ10, PT‑RCQ80, PT‑RZ120, PT‑RZ990, PT‑RZ970, PT‑RZ890, PT‑RZ790, PT‑RZ770 and PT‑RZ690, along with a wide range of Panasonic lenses. Ideal for projection mapping, immersive environments, live shows, exhibitions and other time-critical event applications.
Includes
- MIRROR HEAD 17 - RENTAL EDITION
STAGE16.5.100.200
