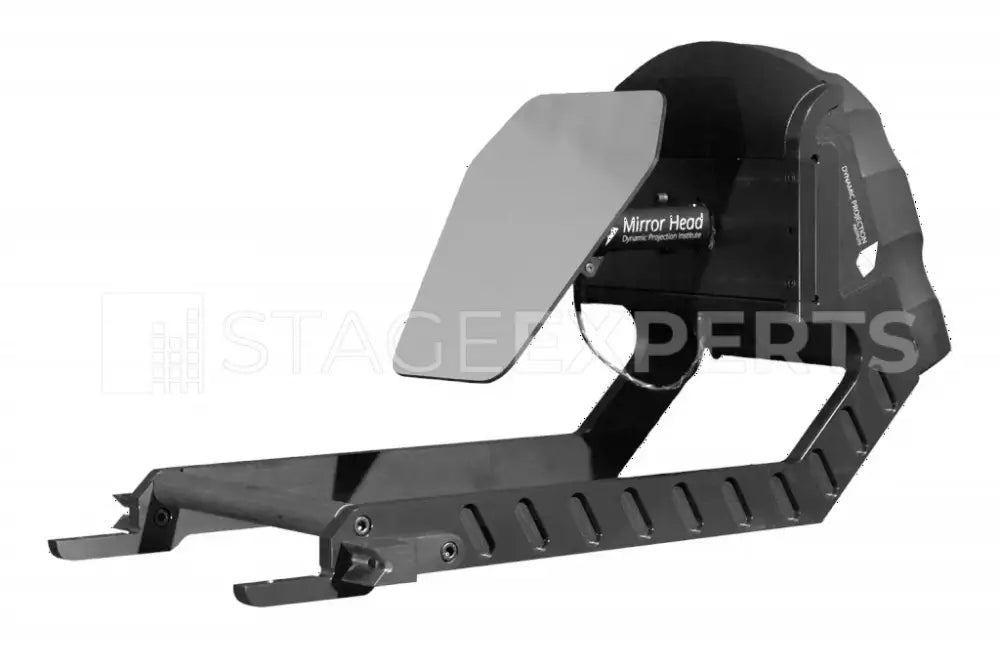

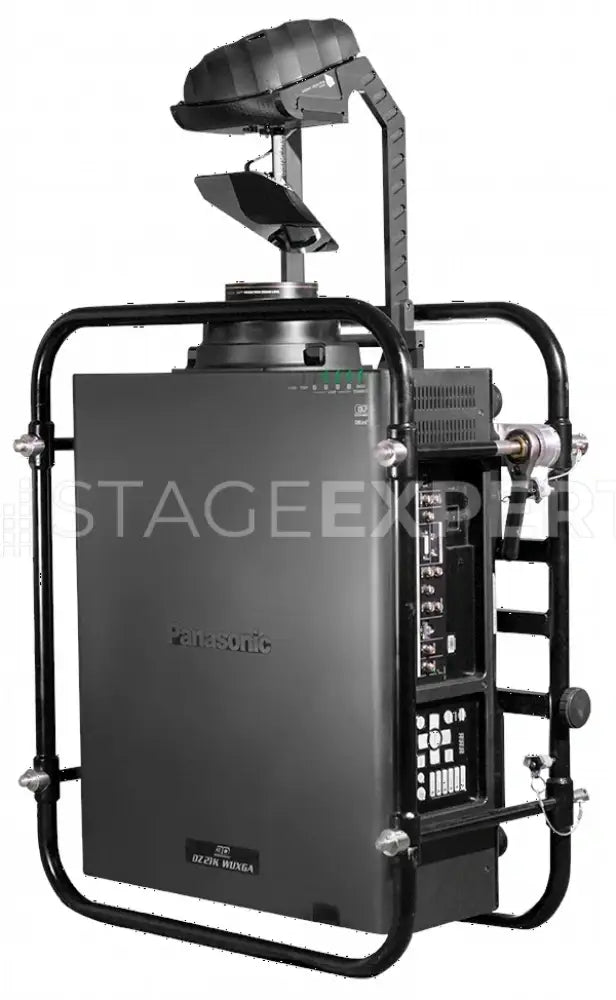

The Mirror Head 14 – Rental Edition from Dynamic Projection Institute is a precision, motorised mirror system that adds dynamic pan/tilt control to select Panasonic 3‑Chip DLP projectors. Designed for professional rental, touring and live event use, it enables fast, repeatable repositioning of projected content across multiple surfaces with exceptional accuracy. High‑resolution 16‑bit movement delivers fine control down to around 0.01°, with self‑calibrating positioning and an absolute repeatability of under 0.03°. Integration is straightforward thanks to DMX‑512 (14 channels) and Art‑Net control, plus RS‑232 for direct projector commands. A robust snap‑in mounting concept speeds setup within professional frames and rigging systems, while the passive, fanless mirror head ensures quiet operation. The front‑surface mirror offers approximately 98% reflectivity for efficient beam redirection and high image quality. Compatible Panasonic models include PT‑DZ21K, PT‑DZ21K2, PT‑DS20K, PT‑DW17K, PT‑RZ21K, PT‑RS20K, PT‑RZ12K, PT‑RS11K, PT‑RQ13K and PT‑RQ22K, with ET‑D75LE series lenses; a throw ratio from 1.60:1 is recommended for certain optics. Ideal for projection mapping, immersive environments, architectural projection and show control workflows.
Includes
- MIRROR HEAD 14 - RENTAL EDITION
STAGE16.6.100.400
