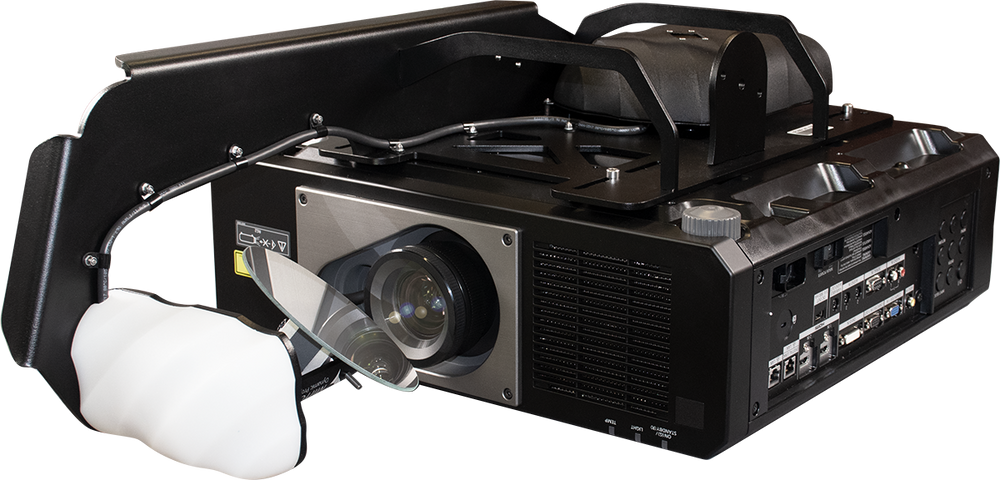

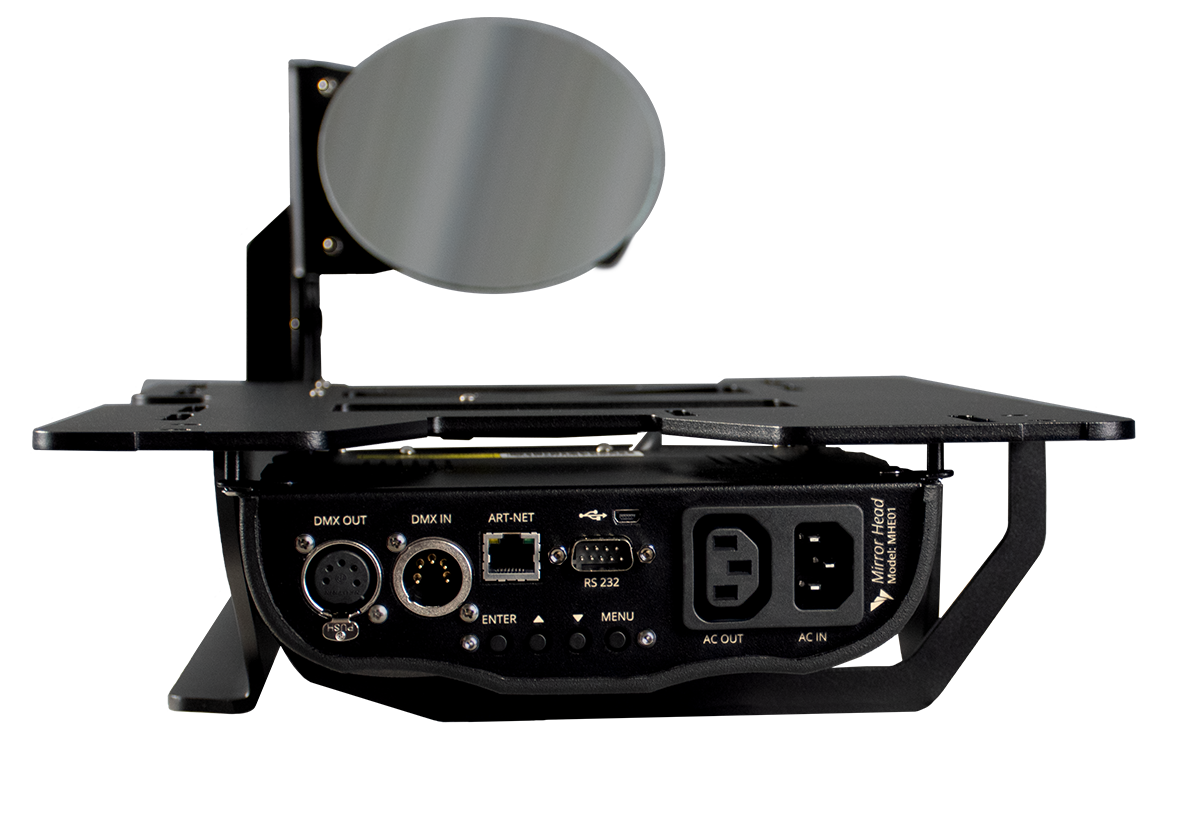

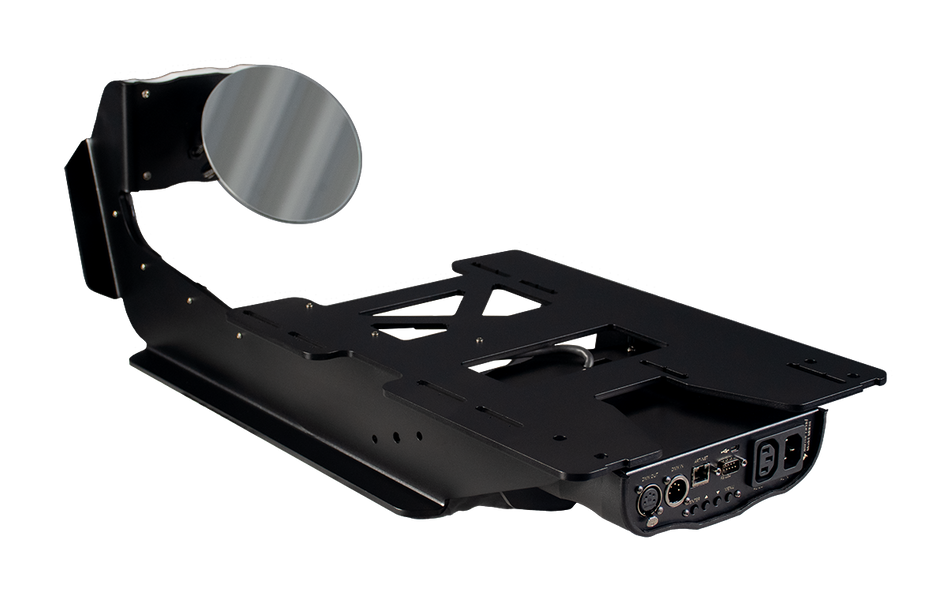

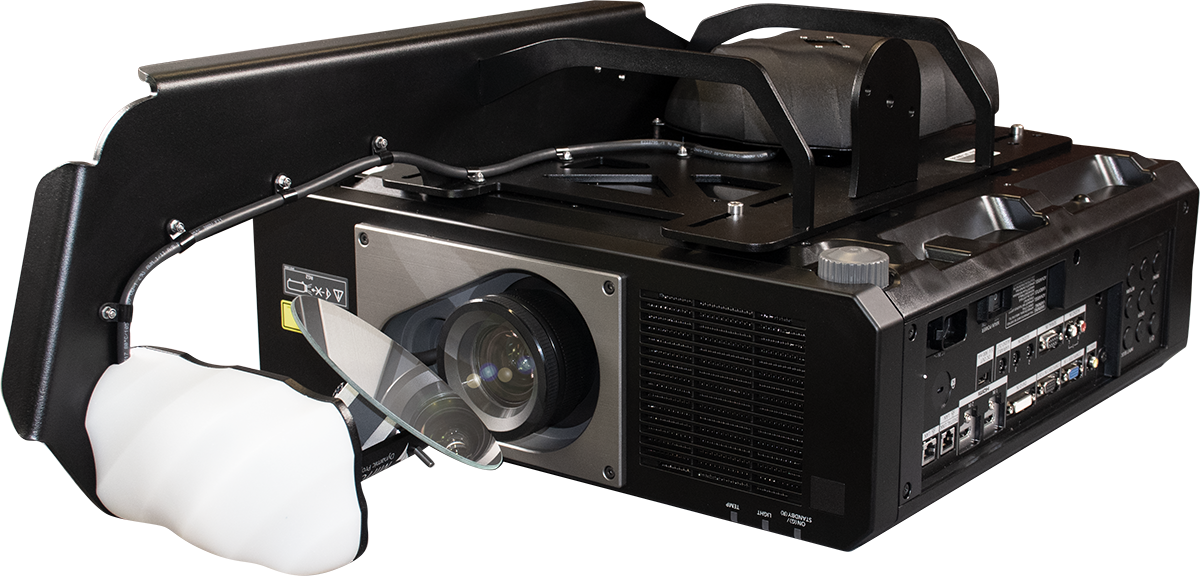

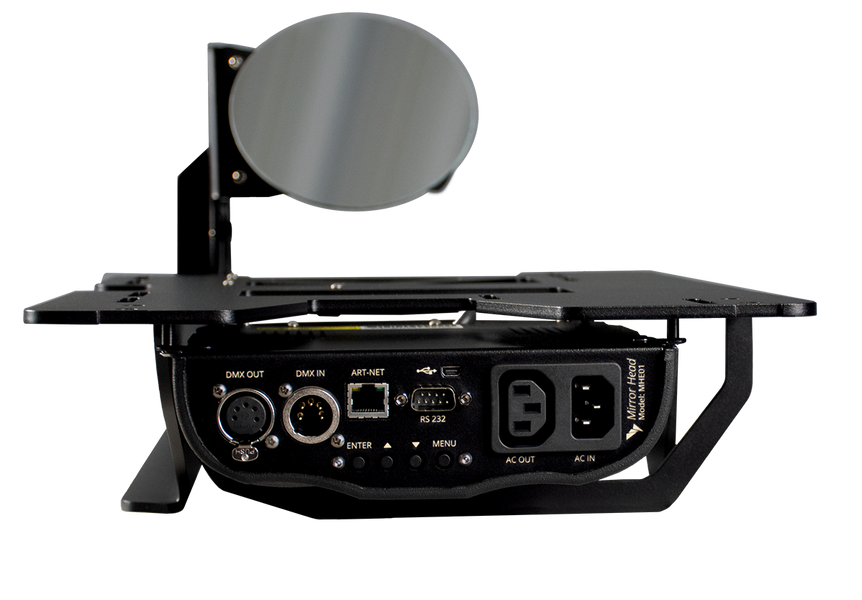

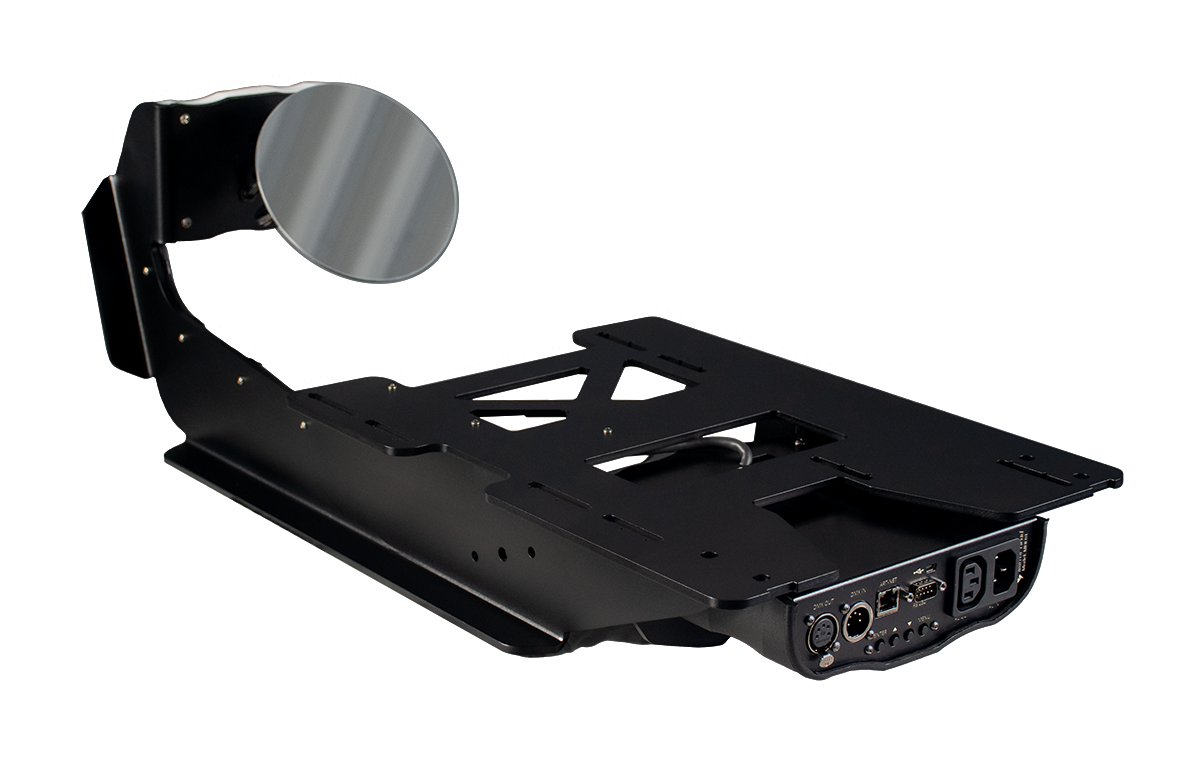

The Dynamic Projection Institute Mirror Head 13 is a precision motorised mirror designed specifically for the Panasonic PT-MZ670 projector, enabling agile, real-time redirection of your image with exceptional repeatability. Delivering ultra-smooth pan and tilt with up to 0.01° positioning accuracy and <0.02° repeatability, it ensures content lands exactly where you need it, time after time. A specially coated, high-reflectivity mirror (around 98%) maintains brightness and clarity, while the robust, powder-coated steel housing is built for dependable service in demanding professional environments. Integration is straightforward via 16-bit DMX-512 (14 channels) on 5-pin XLR in/out, Art-Net over RJ45, HTTP and MQTT control, plus RS232 for projector control. Practical features include auto-calibration, passive cooling (projector excluded), a high-resolution setup display with auto power-off, and firmware updates via Mini USB OTG. The Easy-to-Adjust mounting system speeds installation and alignment, with optimised mirror configurations for the PT-MZ670. Ideal for live events, theatre, museums and experiential installs requiring dynamic projection mapping and swift, repeatable repositioning.
Includes
- Dynamic Projection Institute Mirror Head 13 for PT-MZ670
STAGE16.3.100.060
