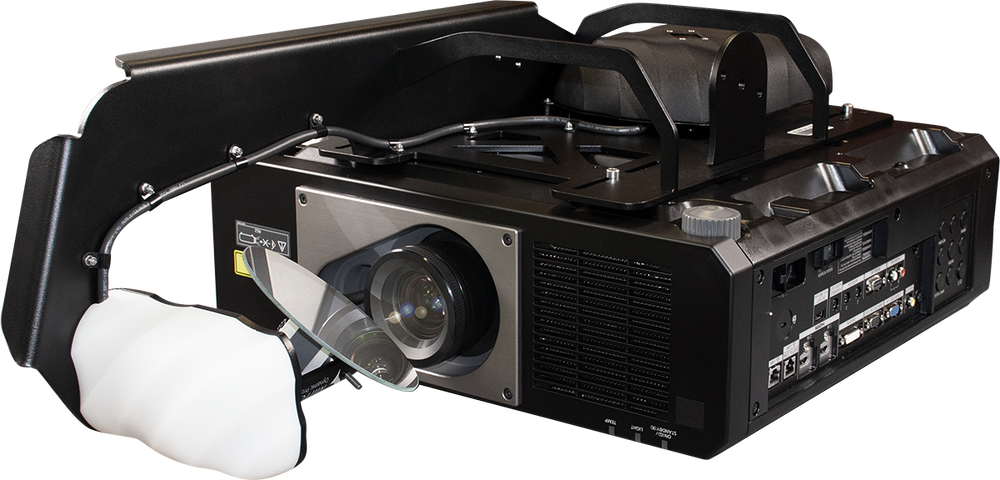

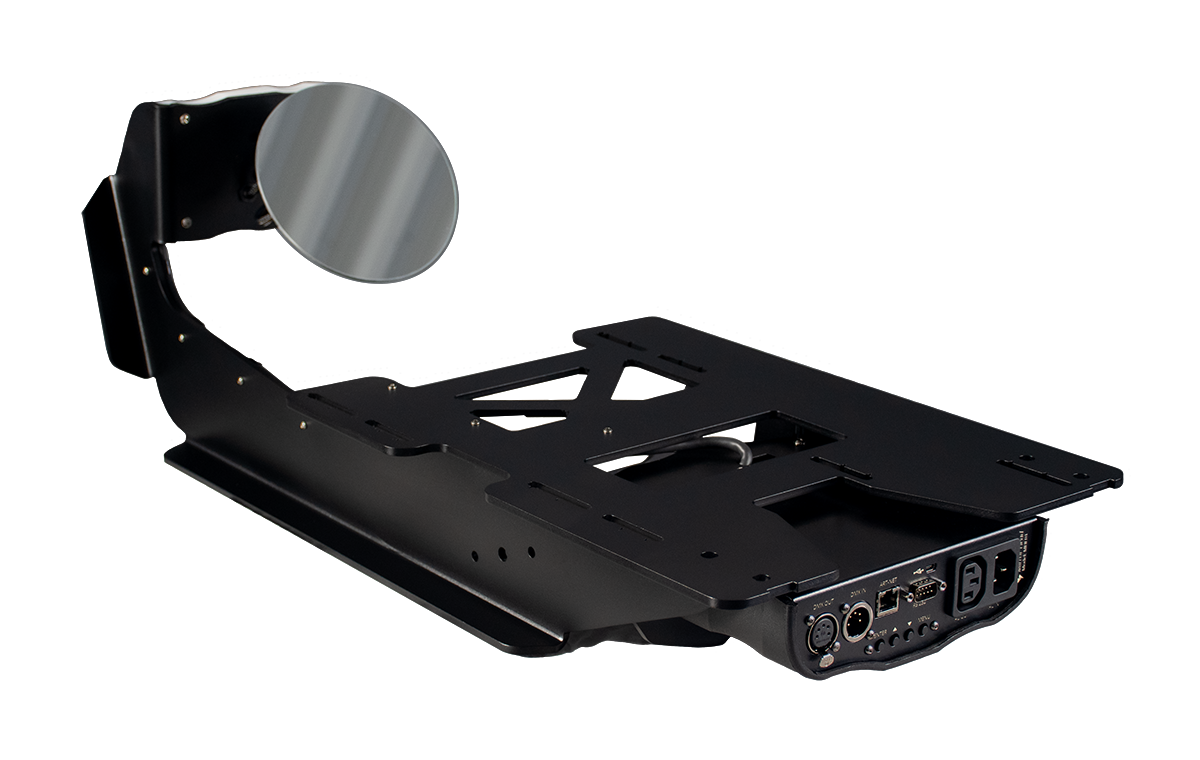

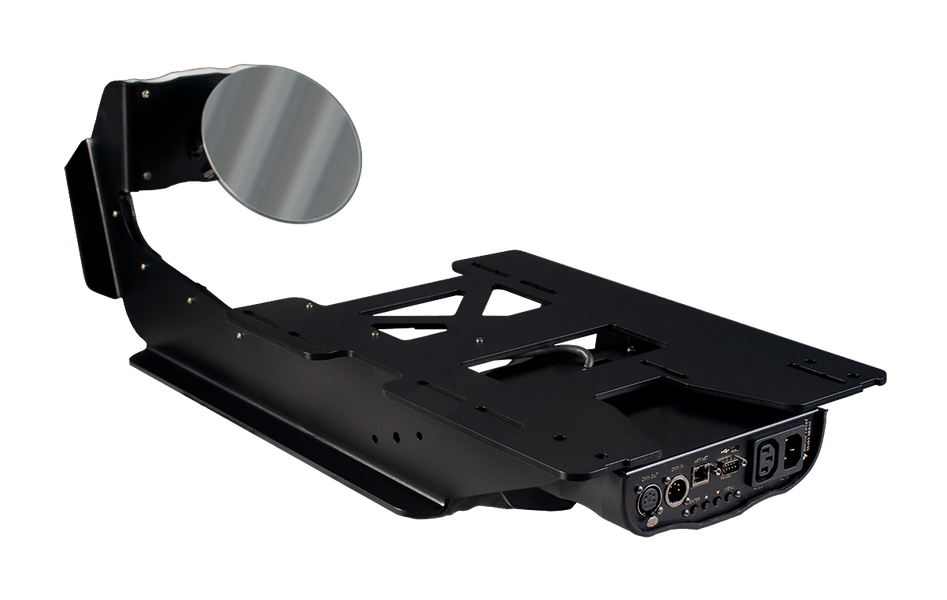

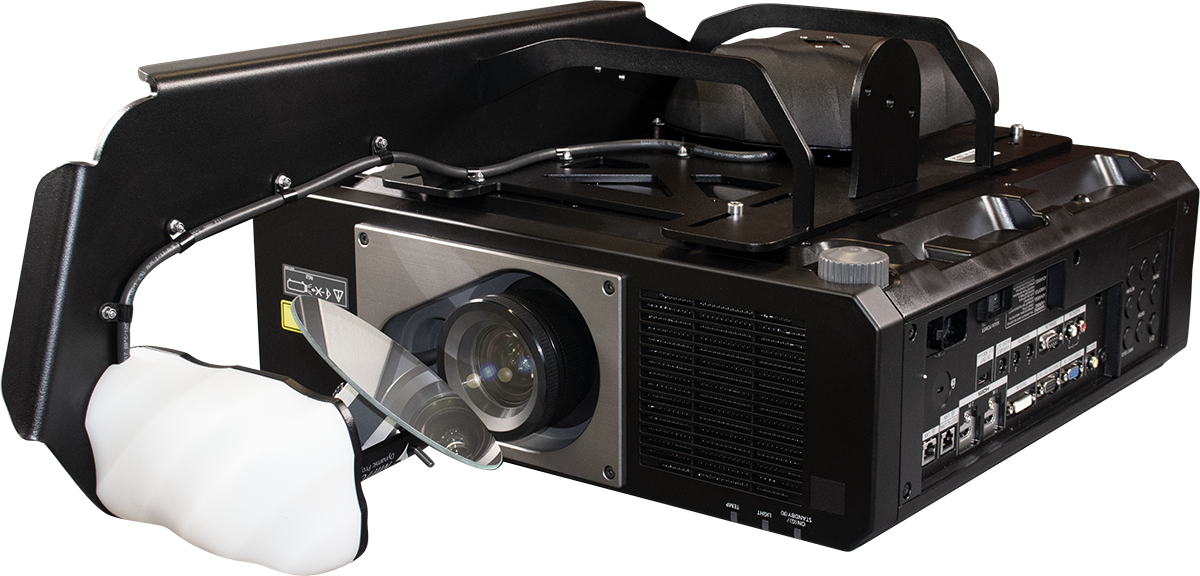

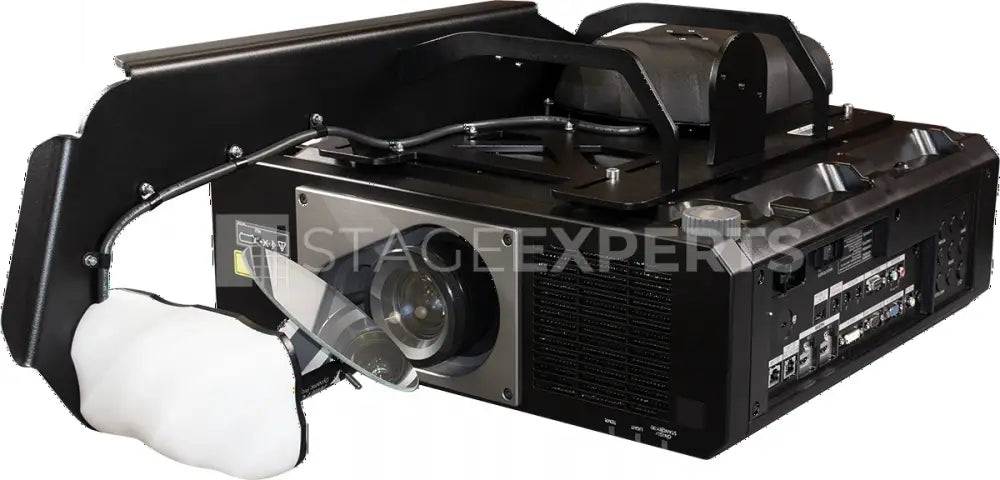

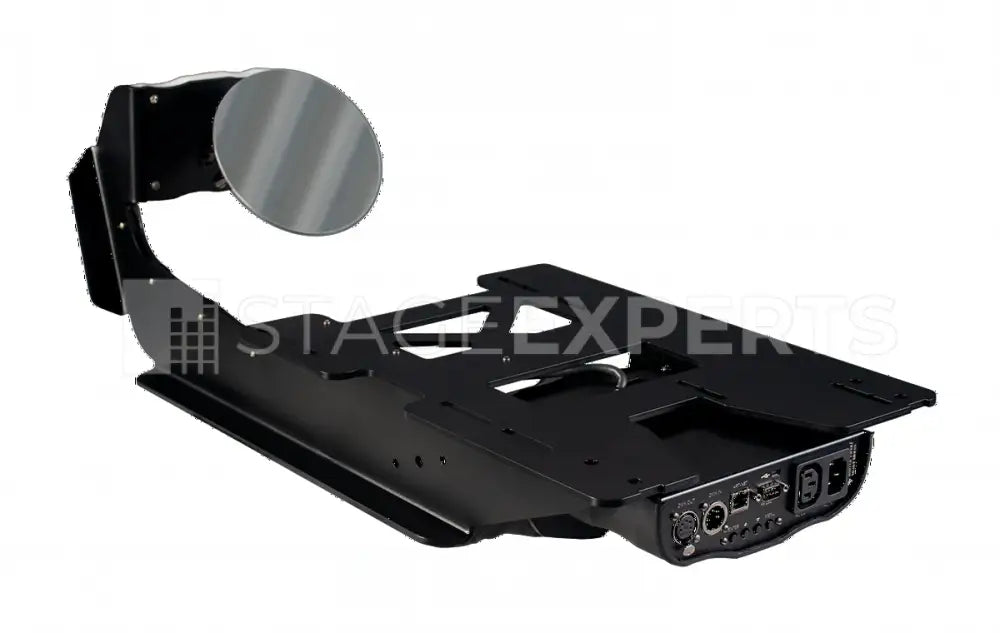

The Mirror Head 13 is a precision, motorised mirror system engineered for the Panasonic PT-FRZ60, redirecting the projection beam in real time without moving the projector. Direct-drive micro stepper motors provide exceptionally smooth, near-silent motion with auto-calibration, repeatability to approximately 0.02°, and positioning accuracy around 0.01°. A high-reflectivity coated mirror (circa 98%) preserves brightness and image fidelity, while the robust powder-coated steel chassis is built for demanding professional environments.

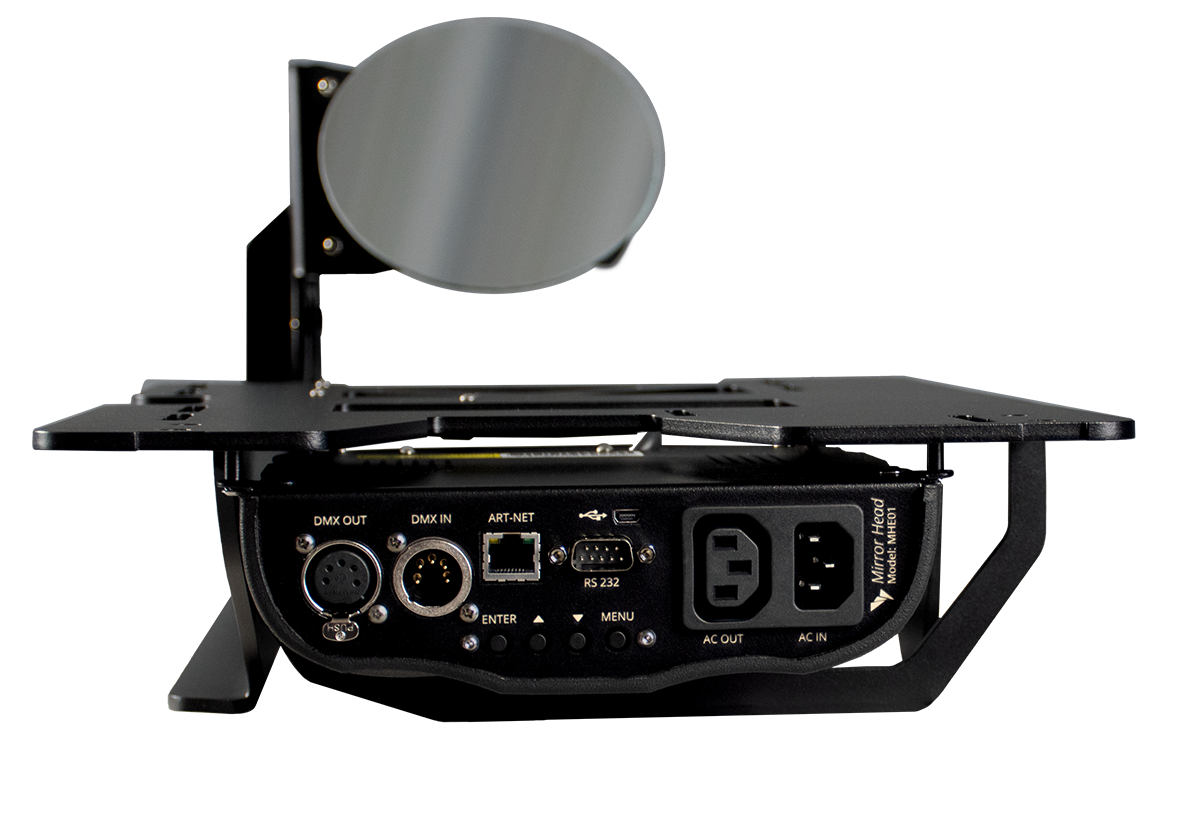

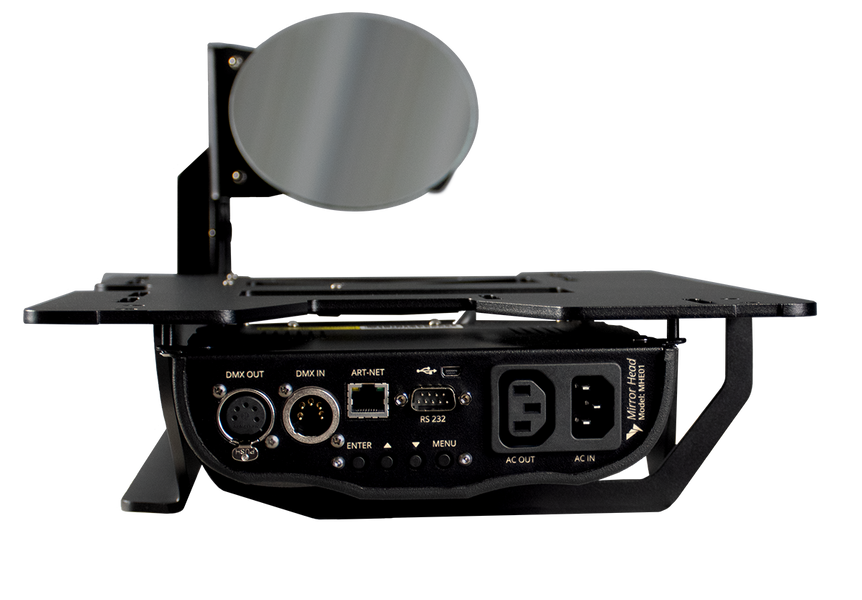

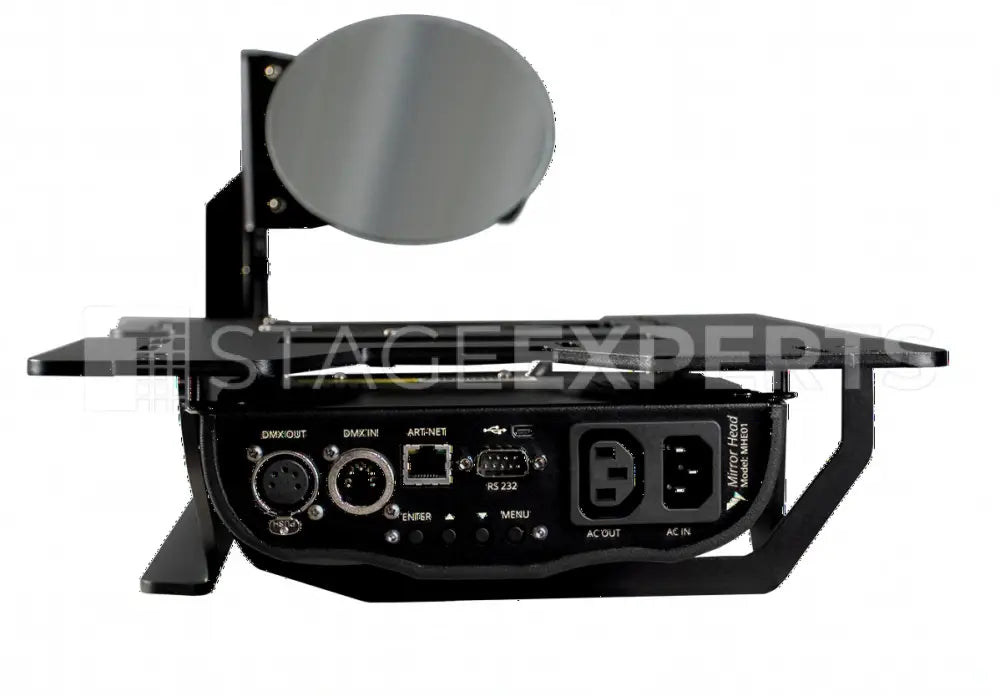

Control is comprehensive: 16-bit PAN/TILT over DMX512 (14 channels), Art-Net via RJ45, HTTP and MQTT, plus an RS-232 link for projector control. Setup is quick via the high-resolution LED display and the pre-installed DPCC web interface. The system is passively cooled (projector excluded) and operates reliably across typical venue conditions (5–35°C, 20–80% non-condensing). Made in Austria, it’s ideal for creative projection mapping, immersive attractions and agile multi-surface displays.
Choose the Mirror Head 13 when you need fast, accurate and repeatable beam steering for live events, theatre, museums and exhibitions.
Includes
- Dynamic Projection Mirror Head 13 for Panasonic PT-FRZ60
