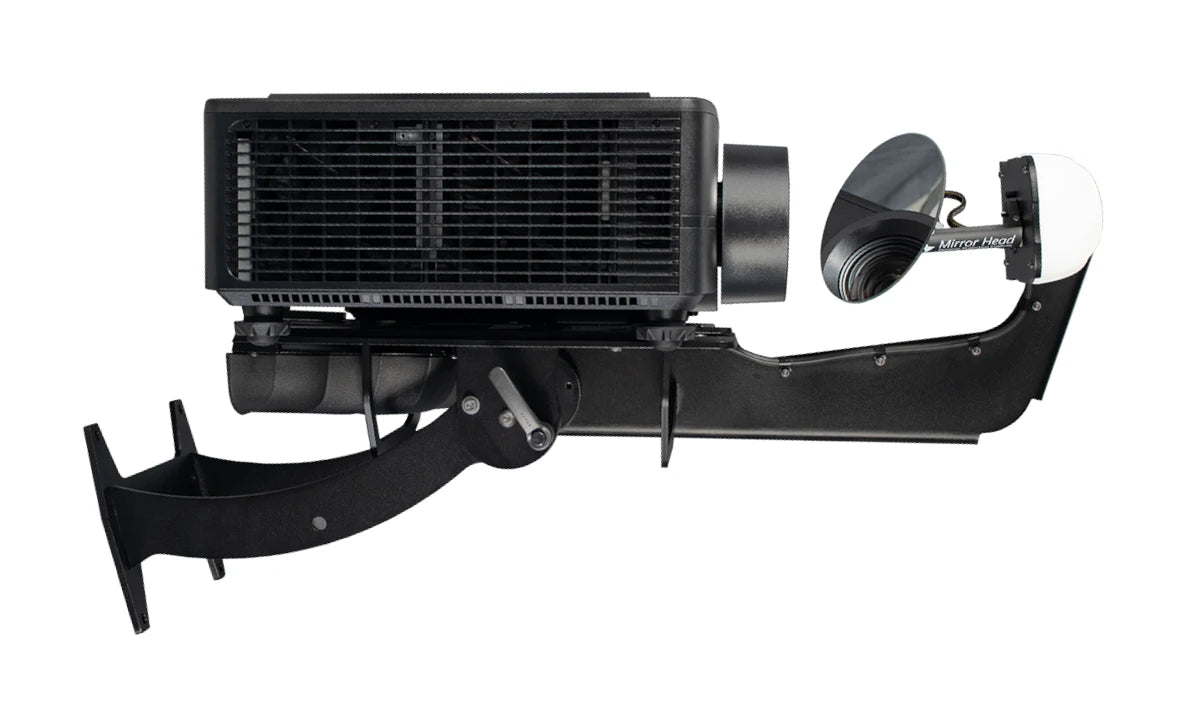

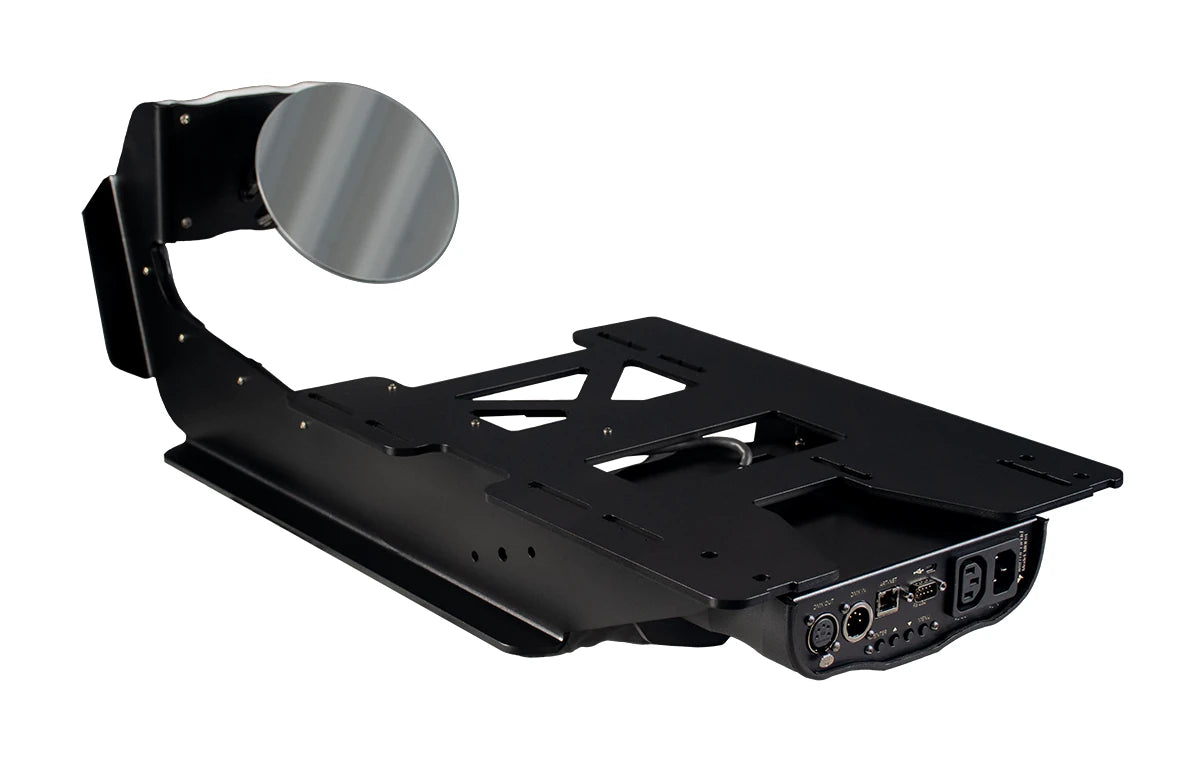

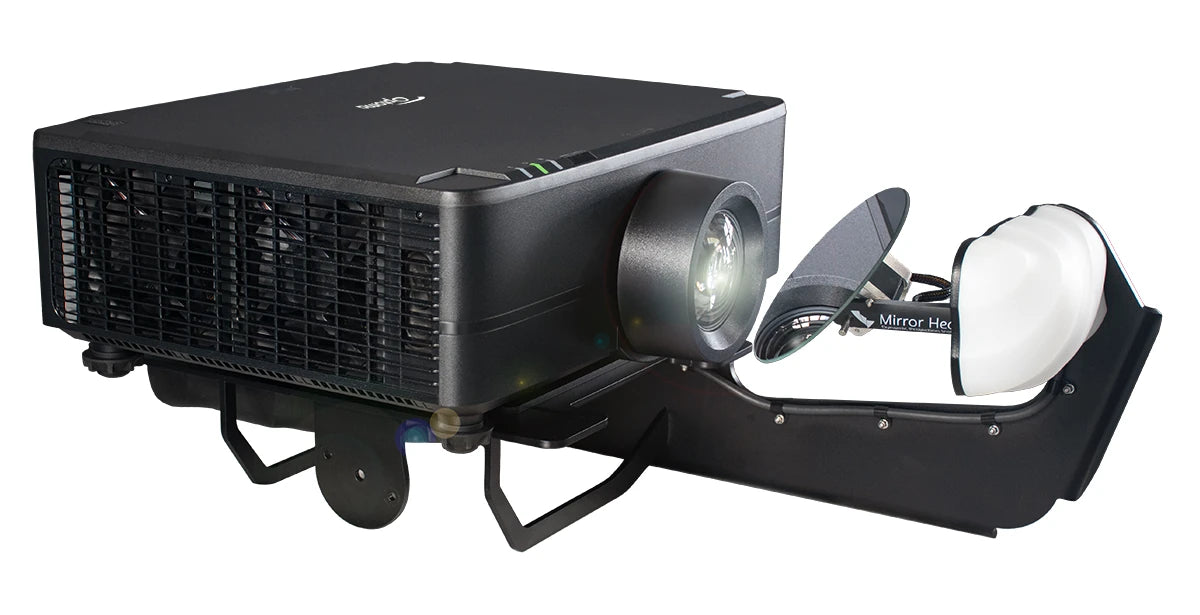

The Dynamic Projection Institute Mirror Head 13 (MH13-ZU92L) is a precision, motorised mirror system engineered for Optoma ZU920T, ZU820T, ZU725T and ZK810T projectors. It redirects the projected image to multiple surfaces, enabling dynamic mapping, moving projections and multi-zone coverage from a single projector position. A front-surface mirror with approximately 98% reflectivity preserves brightness and contrast, while the powder-coated steel chassis is designed for both permanent installations and touring rigs.

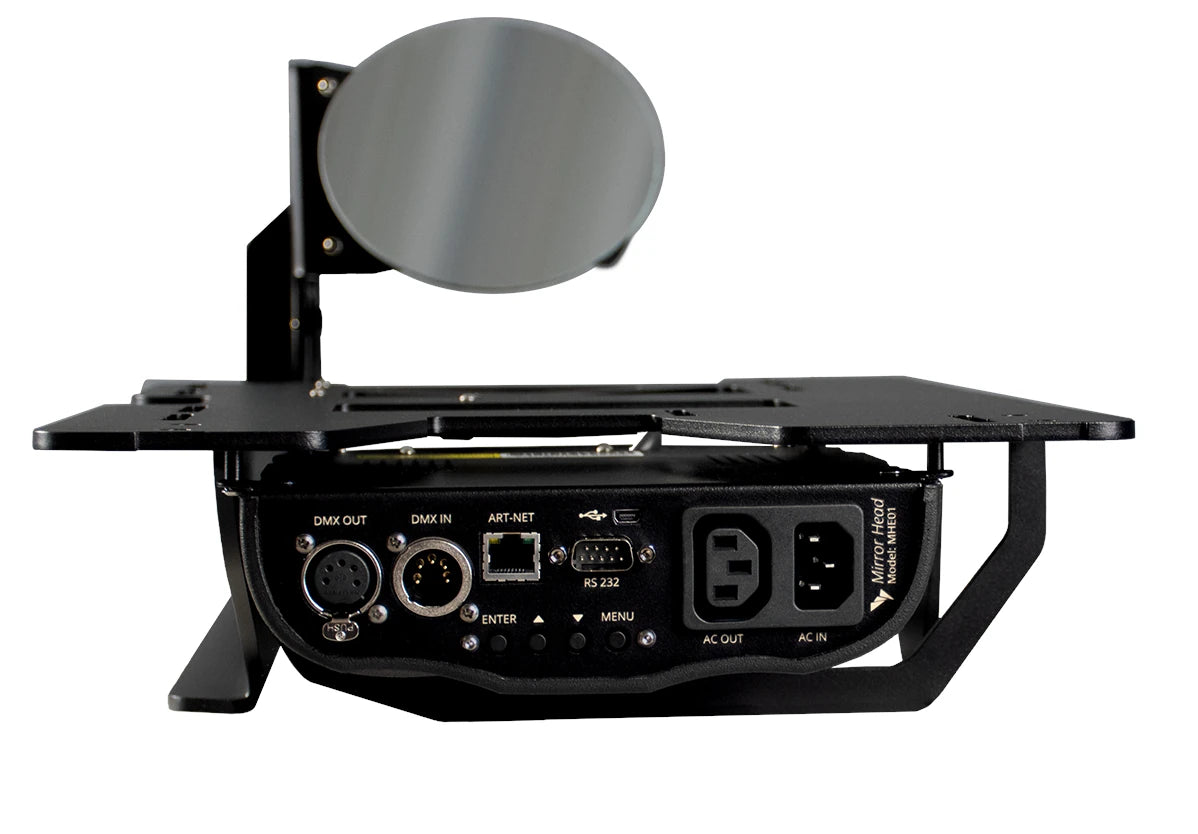

Control is comprehensive and show-ready: 16-bit pan/tilt across 14 DMX channels, plus Art-Net, HTTP and MQTT for integration with lighting, media and control systems. High-resolution micro stepper motors deliver around 0.01° positioning with absolute repeatability below 0.03°, and the self-calibrating mechanism ensures reliable, consistent performance. Passive cooling provides silent operation, and the DPCC web interface streamlines configuration and cueing from any modern browser. For best geometry and movement range, a throw ratio above 1.50:1 is recommended.
Ideal for immersive environments, architectural projection, live events and interactive installations where precise, repeatable projection movement is essential.
Includes
- Dynamic Projection Mirror Head 13 for Optoma ZU920T Series
STAGE16.3.100.060
