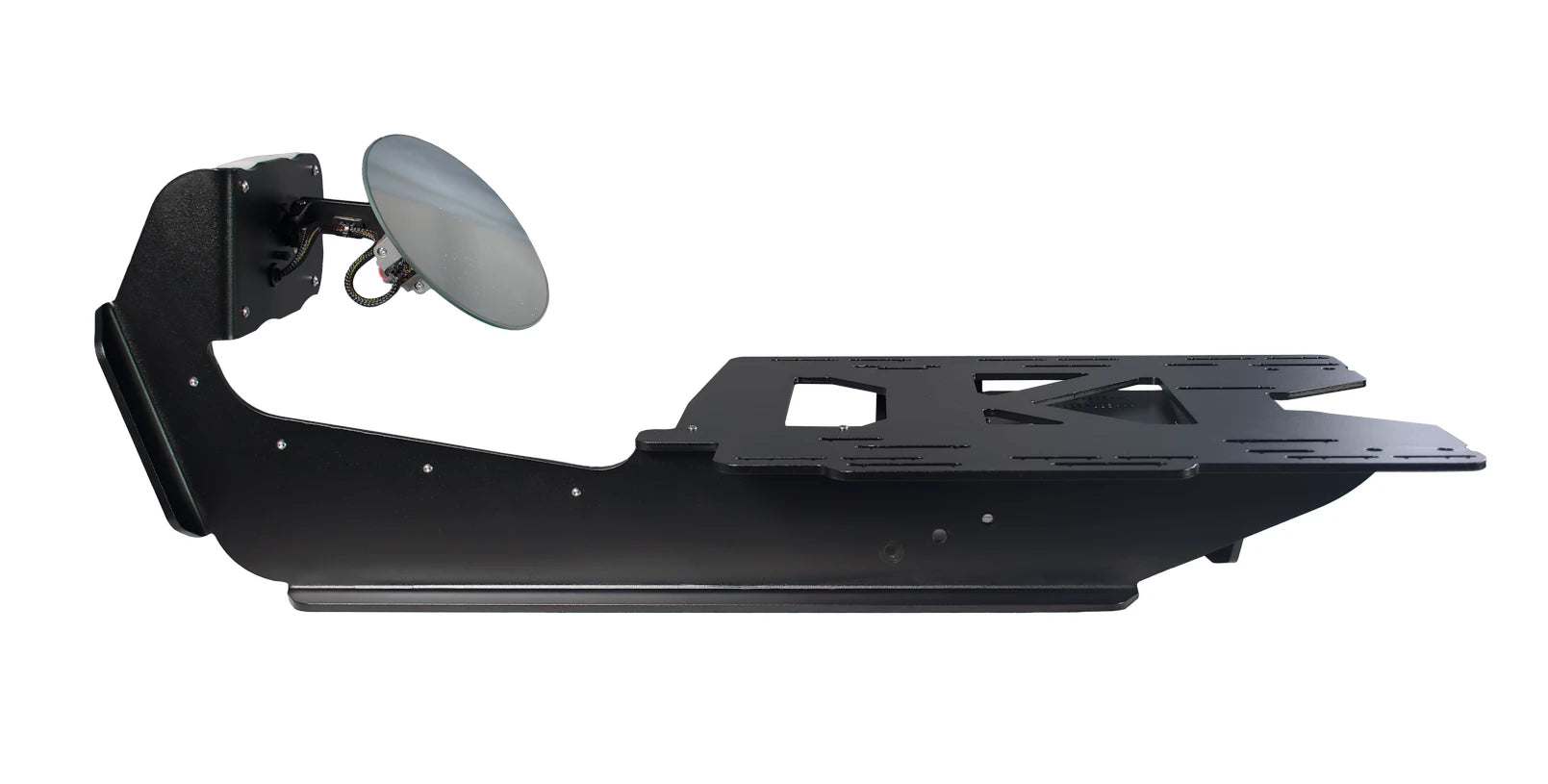

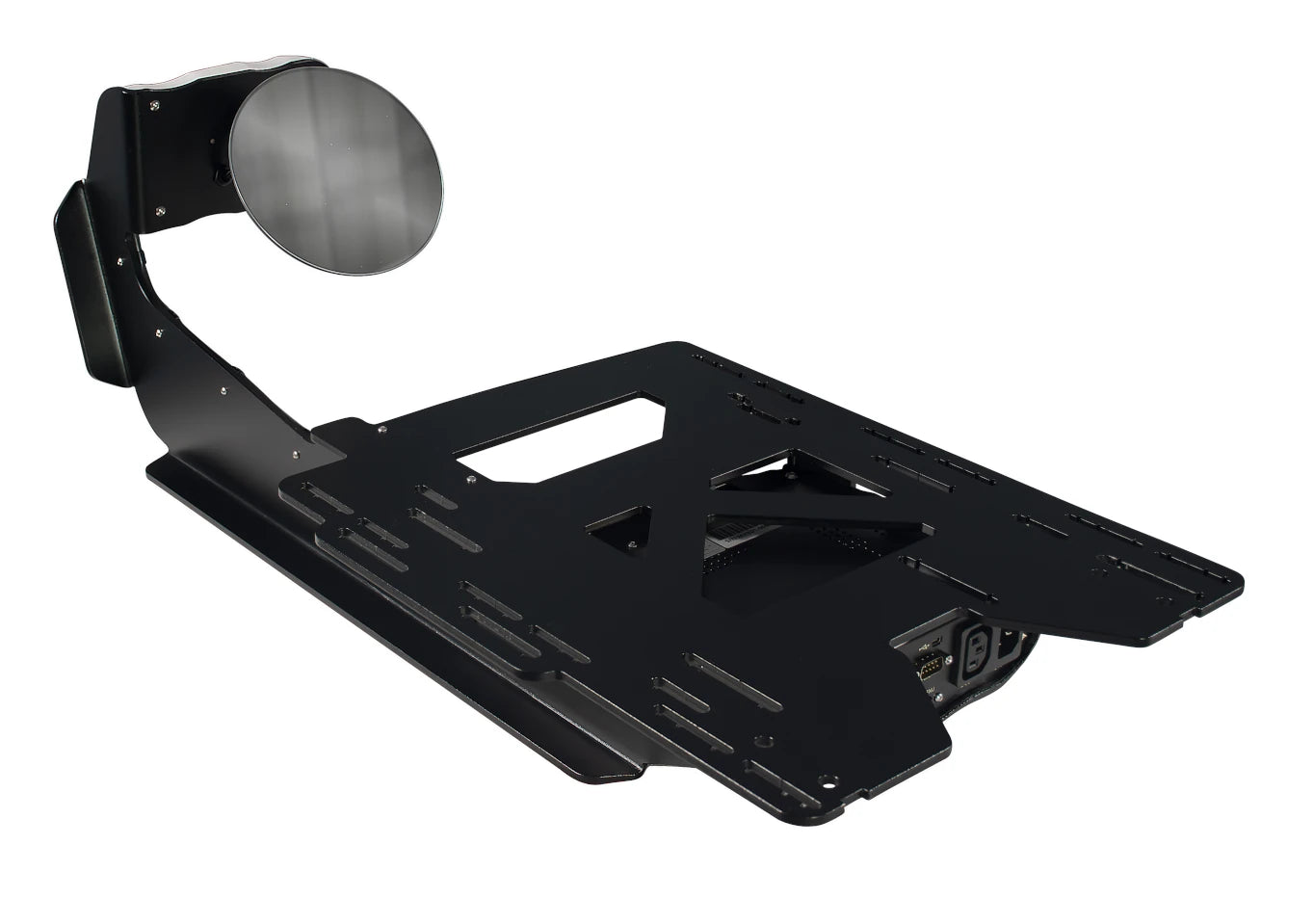

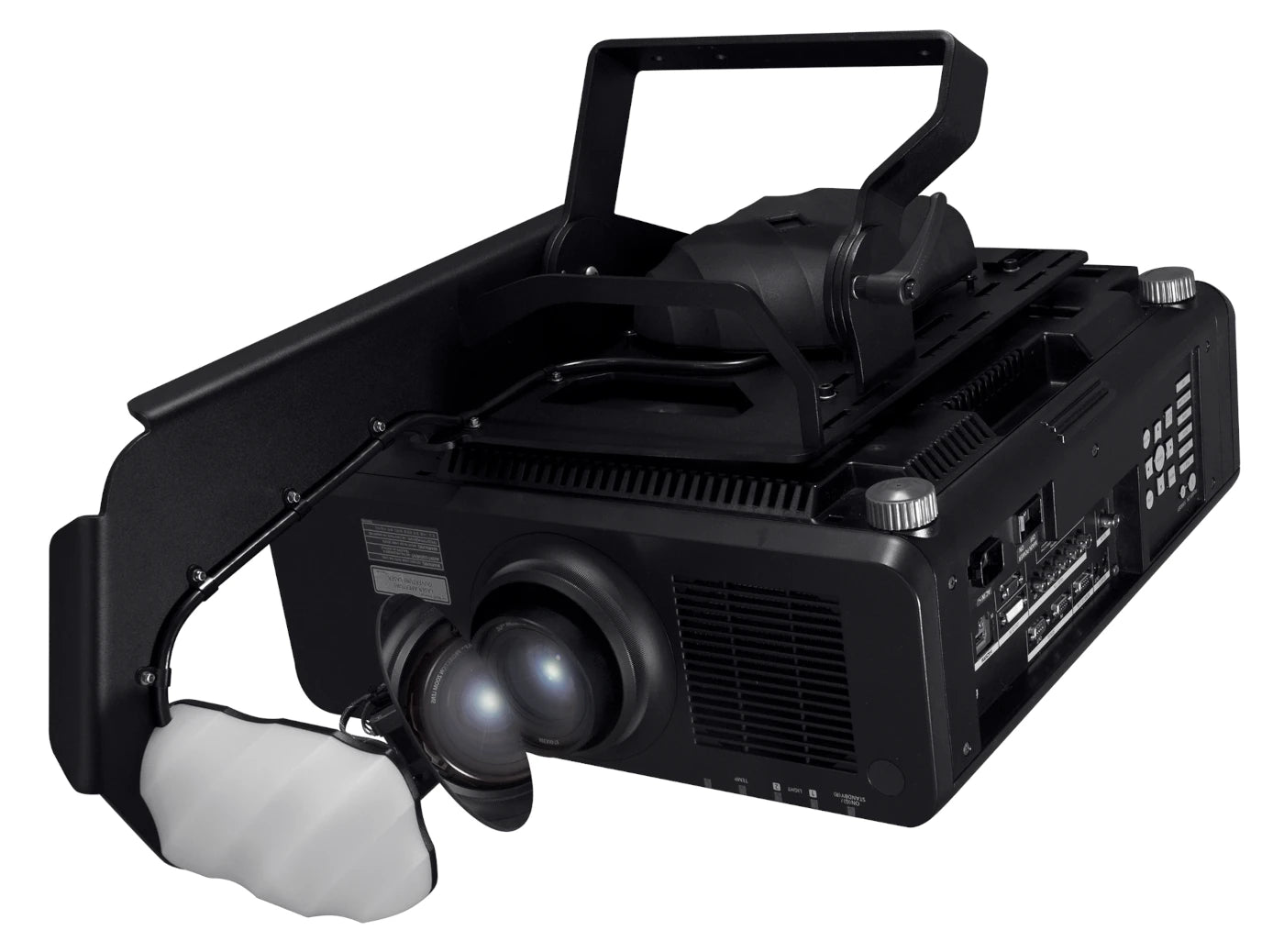

The Dynamic Projection Institute Mirror Head 11 (MH11‑L) brings precision kinetic projection to Panasonic PT‑RZ installation projectors, redirecting a single image source onto multiple surfaces with smooth, repeatable motion. Engineered for the PT‑RZ690, PT‑RZ790, PT‑RZ890, PT‑RZ990 and PT‑RZ120, it offers high‑resolution micro‑step control with around 0.01° positioning accuracy and absolute repeatability under 0.03°. Choose TILT ranges of 90° or 162° and PAN of 180° to suit your mapping and show design.

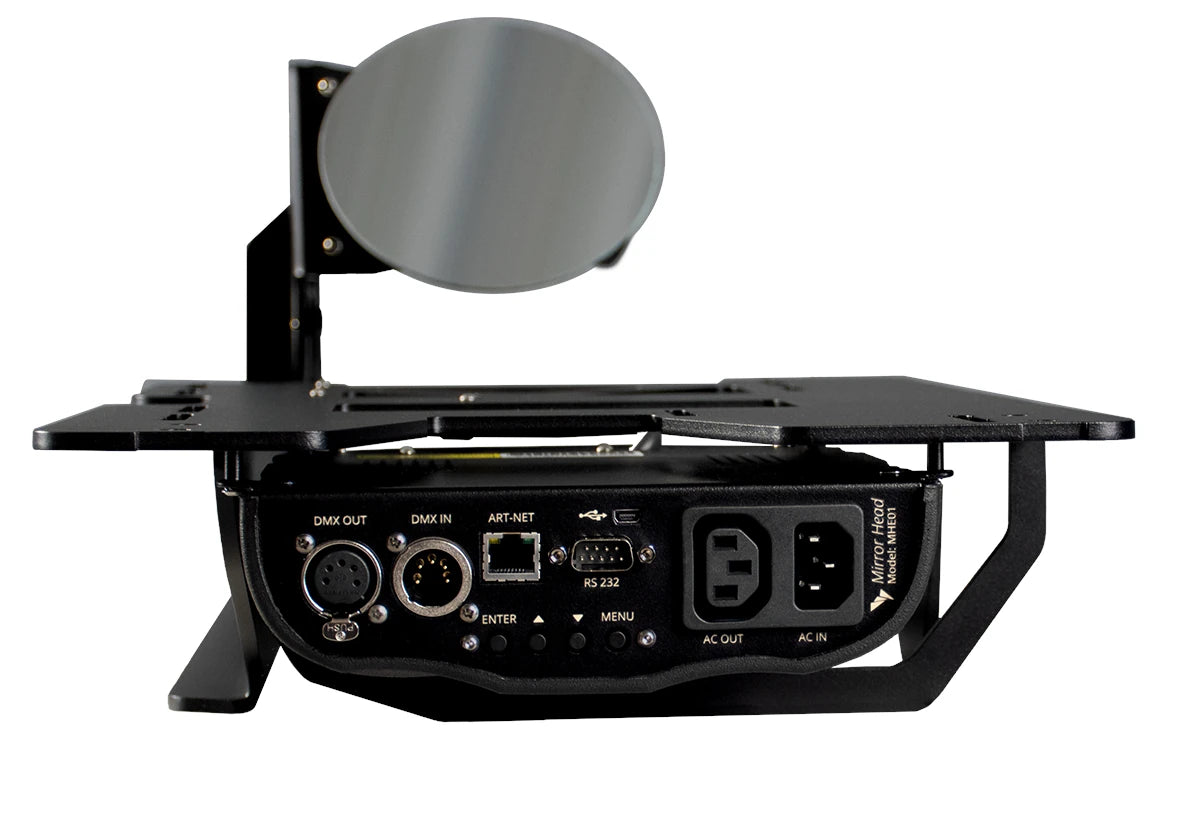

Integration is straightforward: control via DMX‑512 (14 channels), Art‑Net, HTTP or MQTT, with RS‑232 projector control and a DPCC web interface for configuration and browser‑based show control. A robust, powder‑coated steel chassis houses a front‑surface mirror with approximately 98% reflectivity, while passive, fanless operation keeps noise to a minimum. A throw ratio above 1.50:1 is recommended to maximise movement range.
Ideal for immersive installations, architecture mapping, museums and live events where flexible, reconfigurable projection is required. Compatible Panasonic projector required and not included.
Includes
- Dynamic Projection Mirror Head 11 for Panasonic PT‑RZ Series
STAGE16.3.100.075
