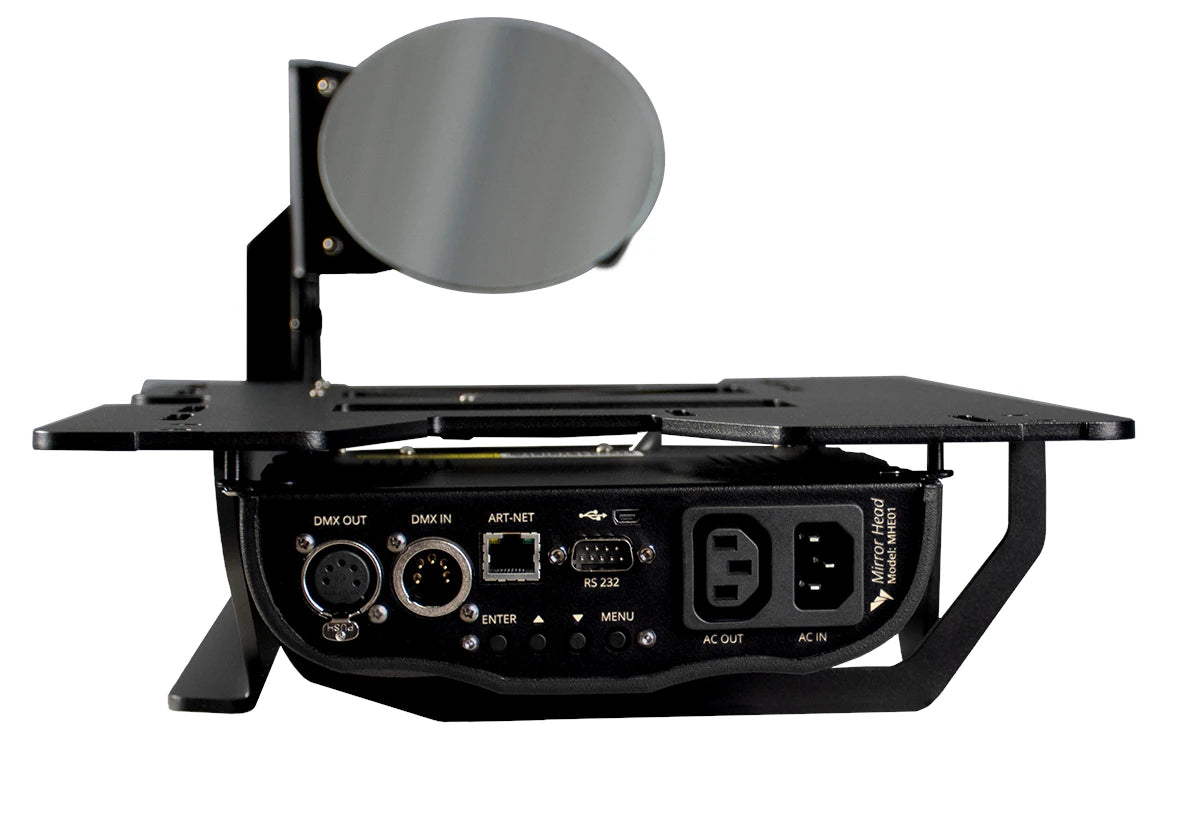

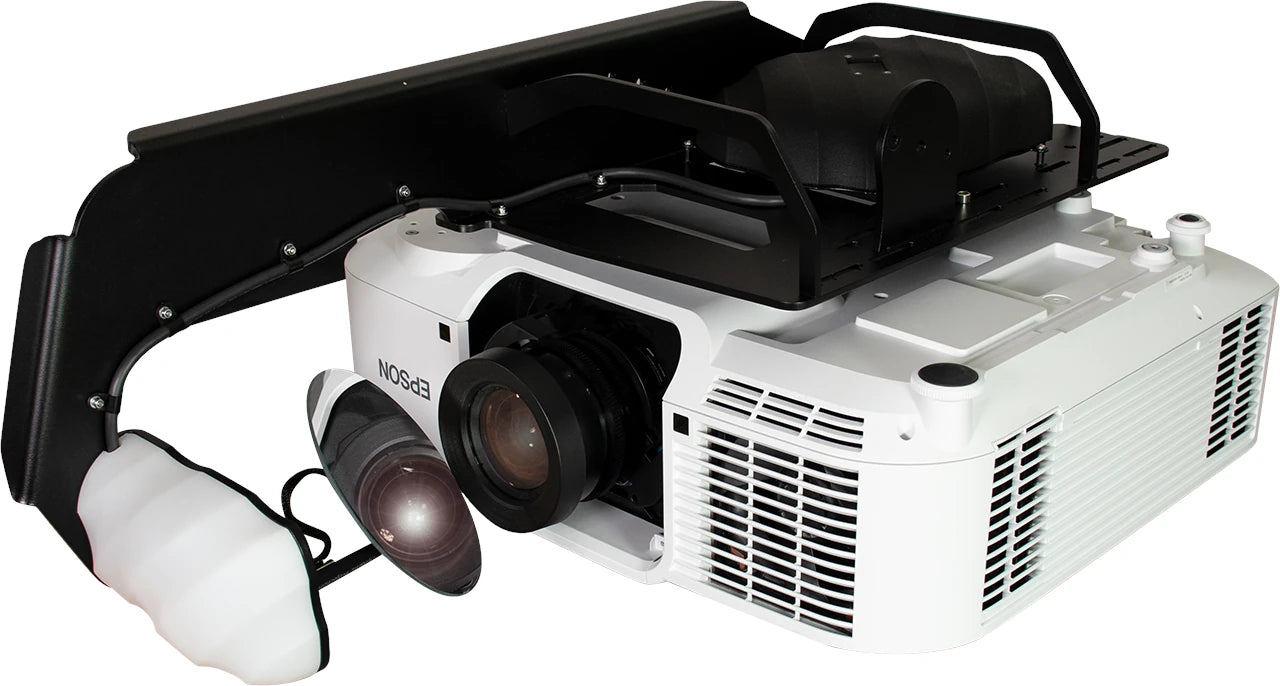

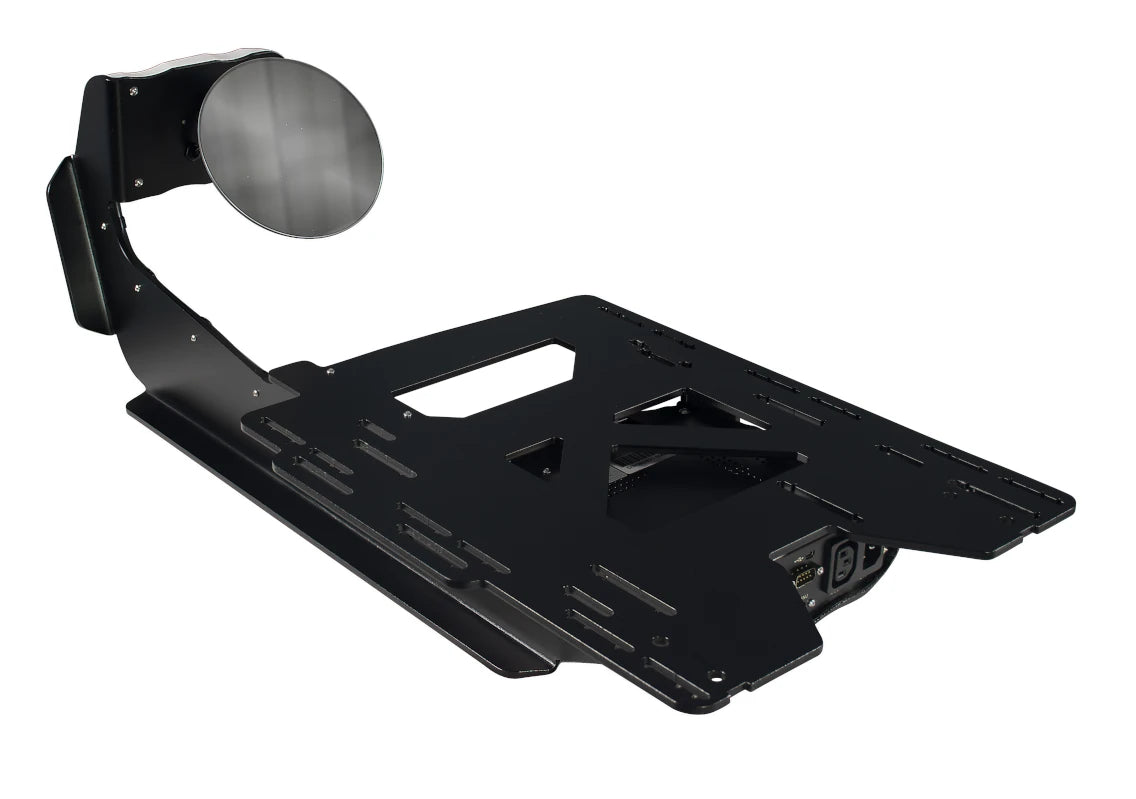

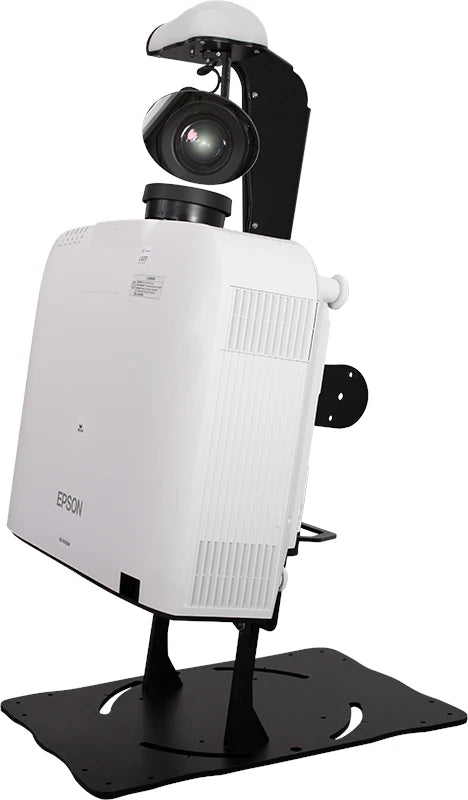

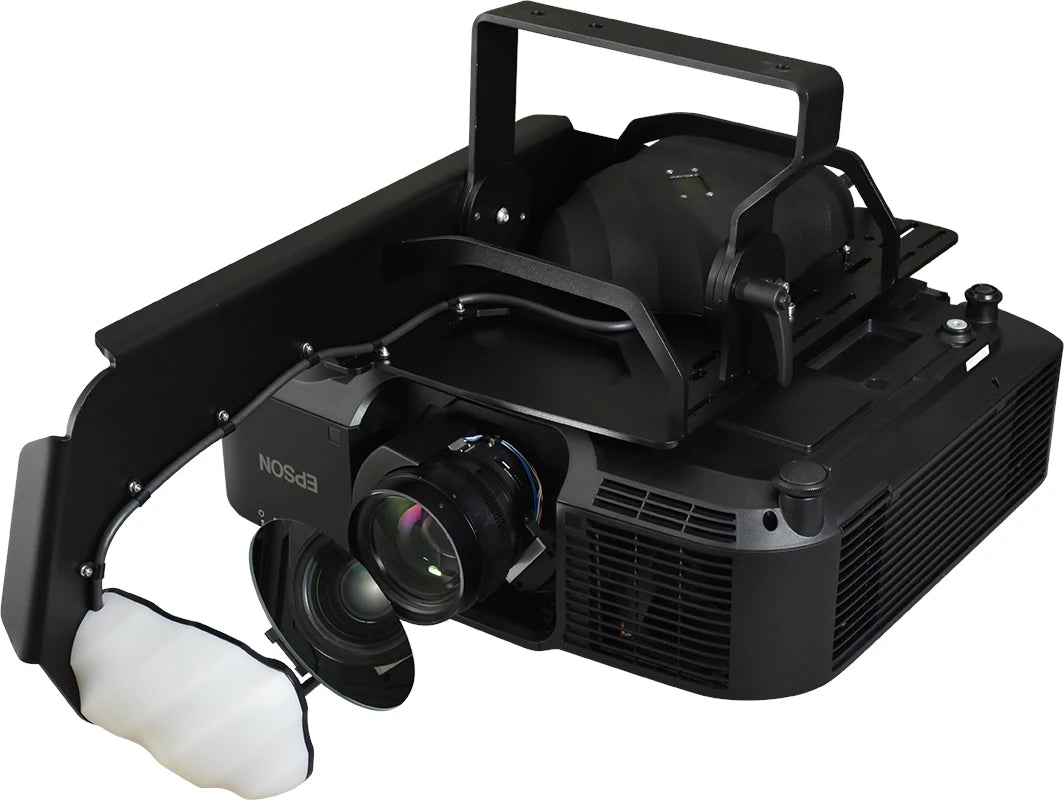

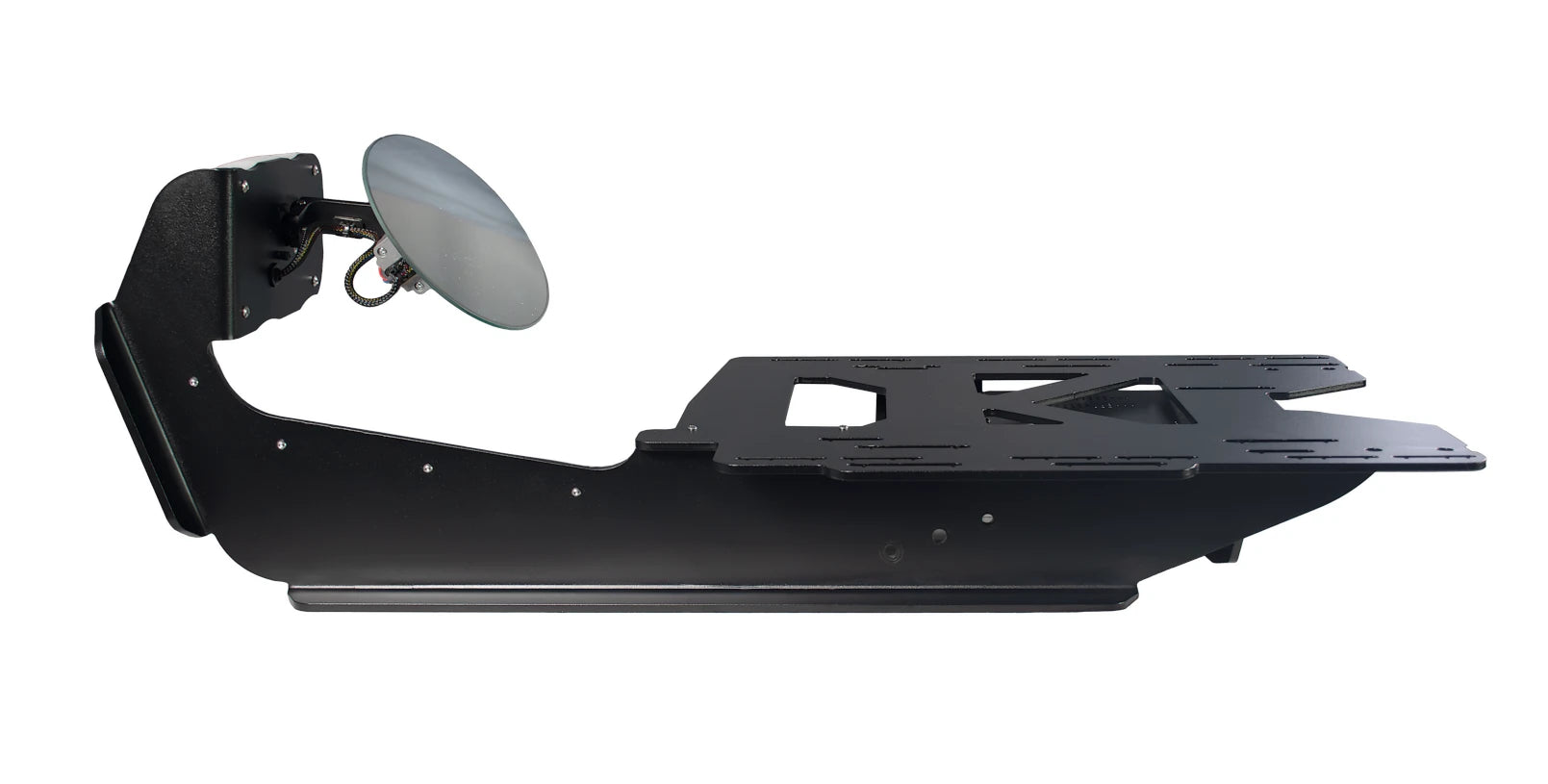

The Dynamic Projection Institute Mirror Head 11 (MH11-PU1L) adds precision, motorised mirror control to compatible Epson EB‑PU1000 series projectors, letting you steer a single output cleanly across multiple surfaces. Purpose-built for EB‑PU1006W, EB‑PU1007W/B, EB‑PU1008W/B and EB‑PU2010W/B models, it delivers smooth, repeatable pan/tilt moves and rapid switching between projection zones. High‑resolution micro stepper motors achieve around 0.01° positioning with absolute repeatability under 0.03°, while self‑calibrating mirror control keeps cues consistent show after show. Control is flexible via DMX‑512 (14 channels), Art‑Net, HTTP and MQTT, with an integrated DPCC web interface for straightforward browser-based setup and operation. A powder‑coated steel chassis, front‑surface mirror with approximately 98% reflectance, and passive, fanless cooling ensure robust, silent performance. Suitable for truss, wall or fixed installation, it is a reliable tool for creative mapping where flexible, kinetic projection is required. For optimum results, use a projection lens with a throw ratio above 1.40:1.
Ideal for immersive experiences, architectural projection, live events and interactive environments where one projector must cover multiple targets with accuracy and speed.
Includes
- Dynamic Projection Mirror Head 11 for Epson EB‑PU1000
STAGE16.3.100.165
