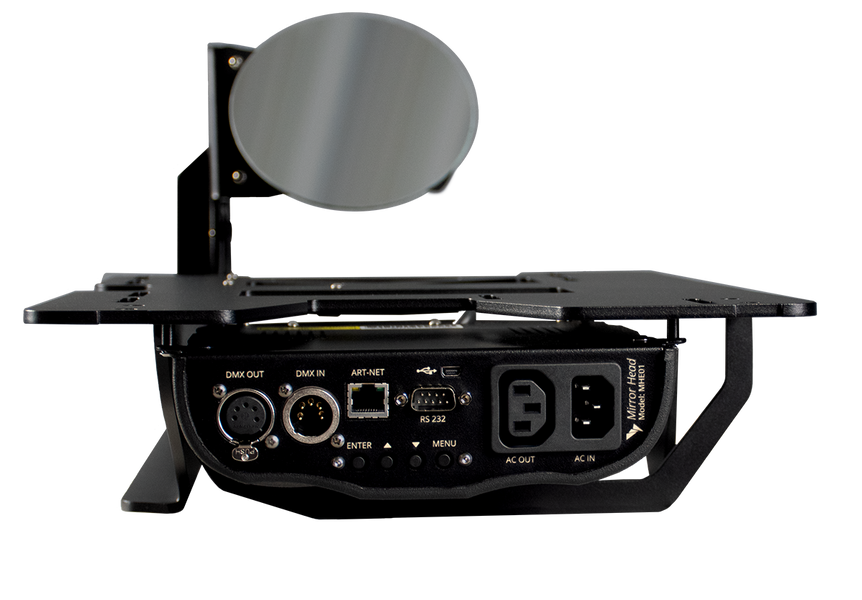

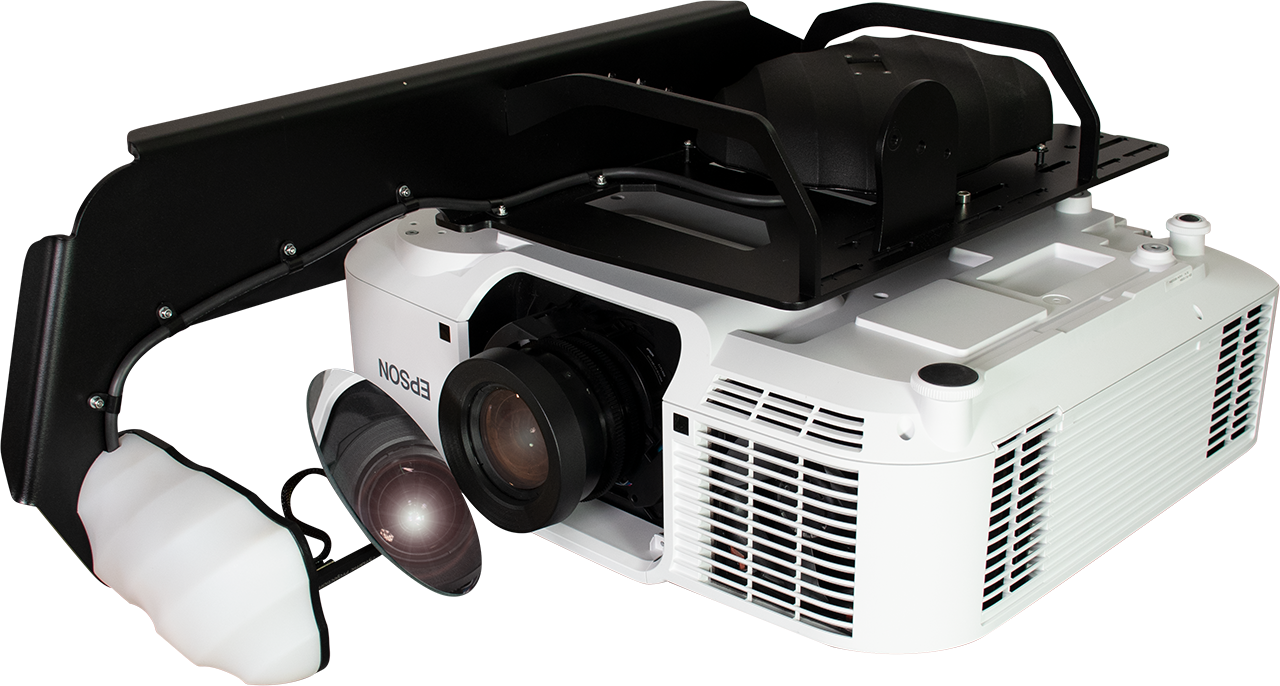

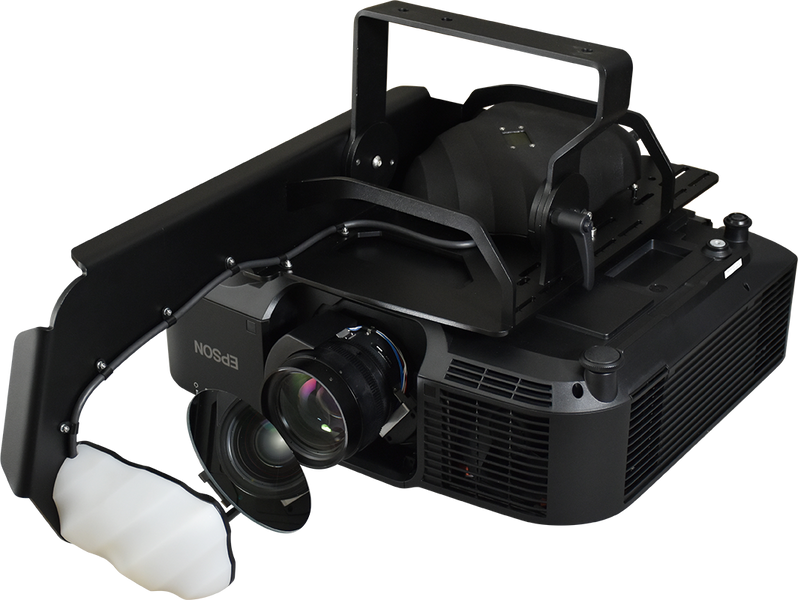

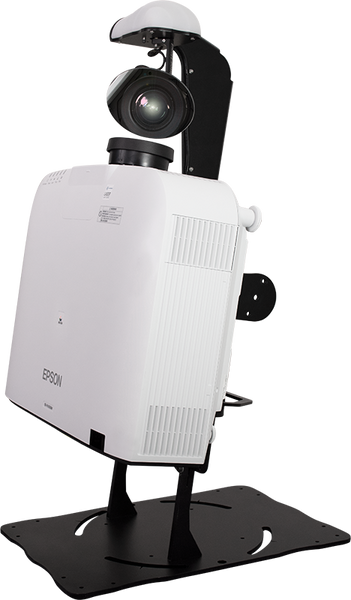

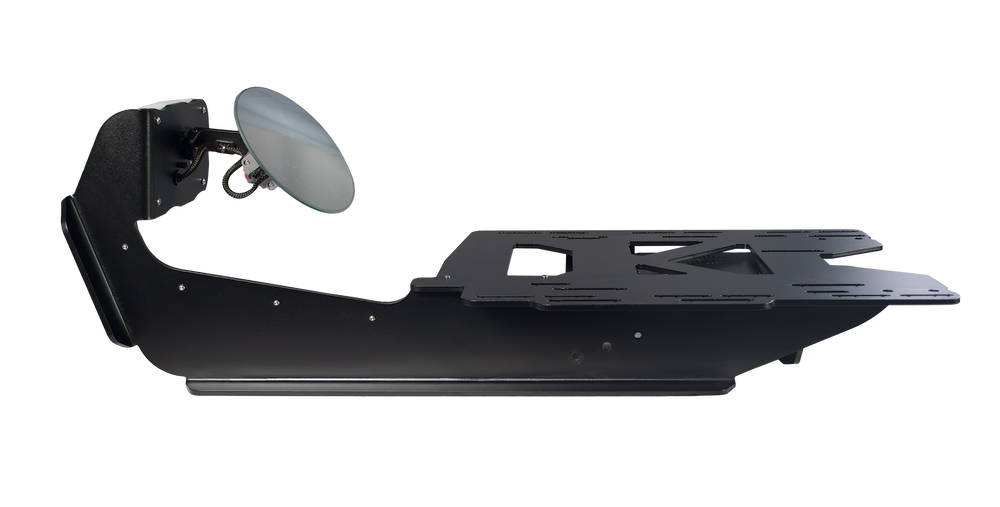

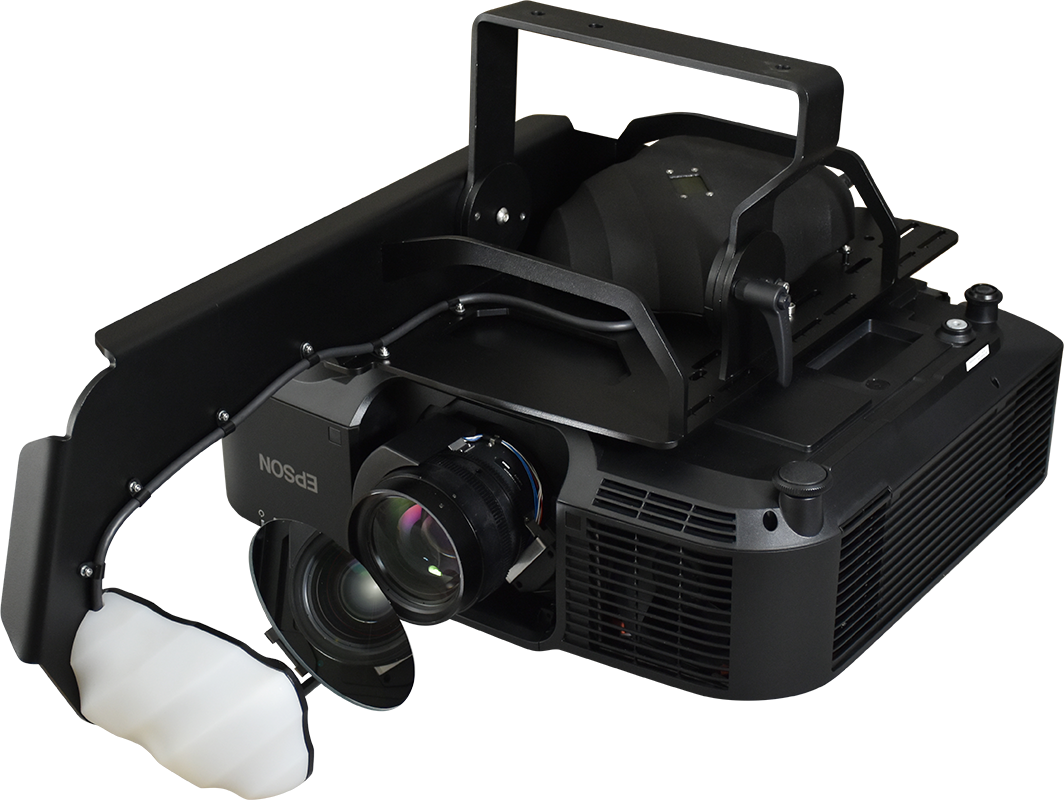

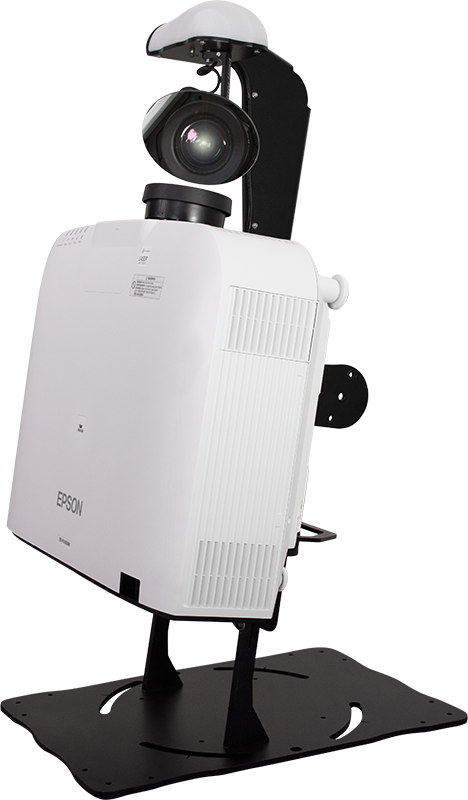

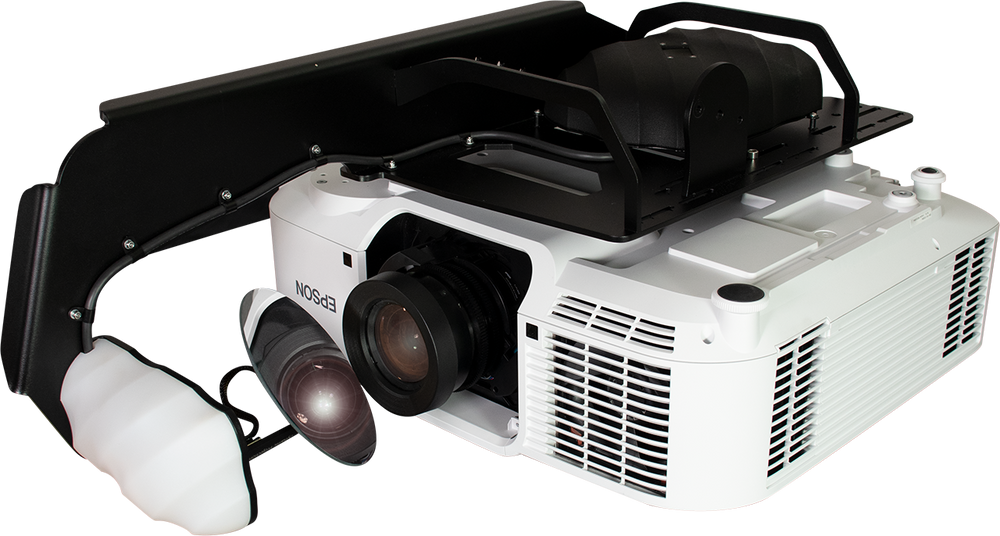

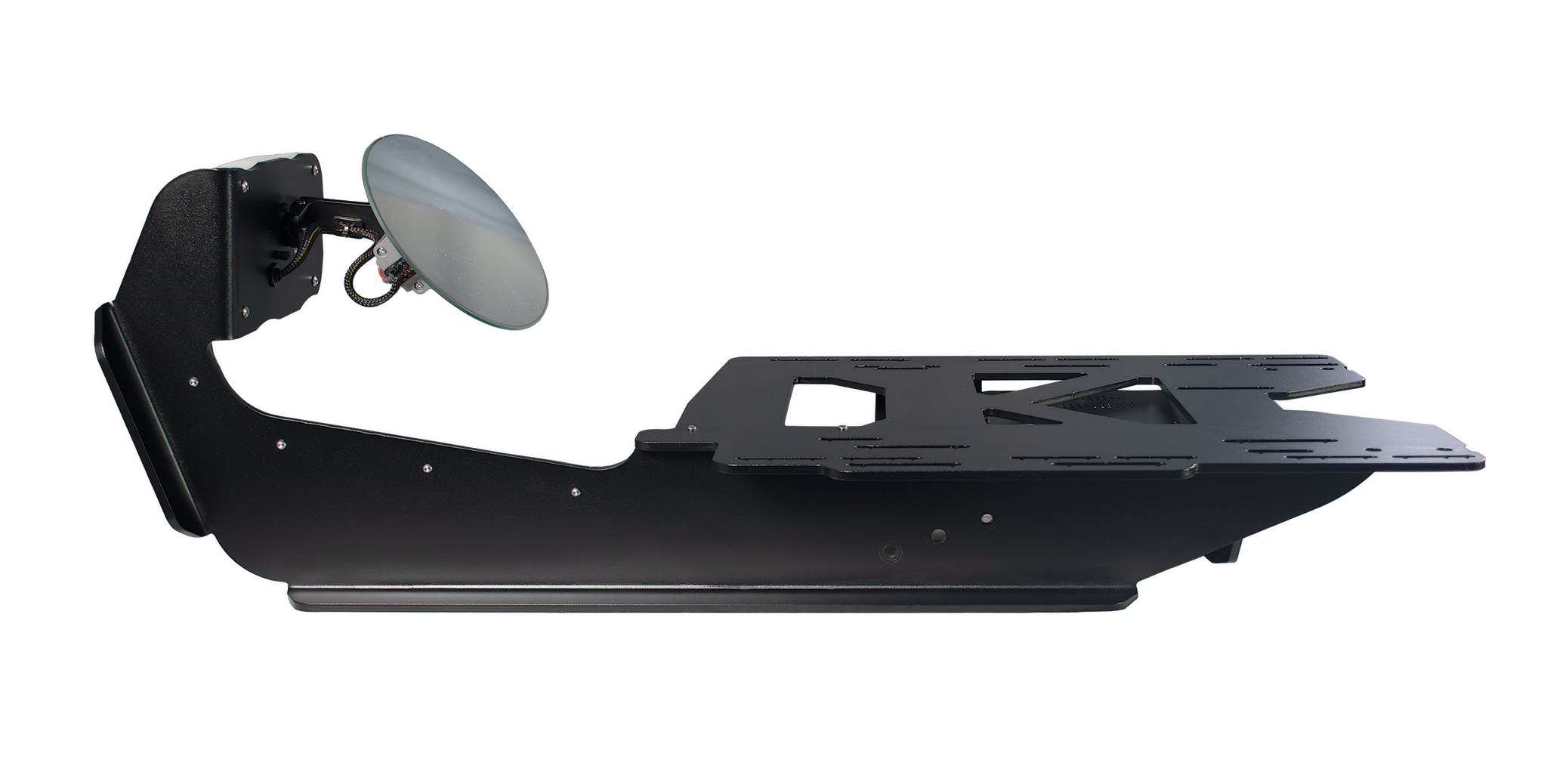

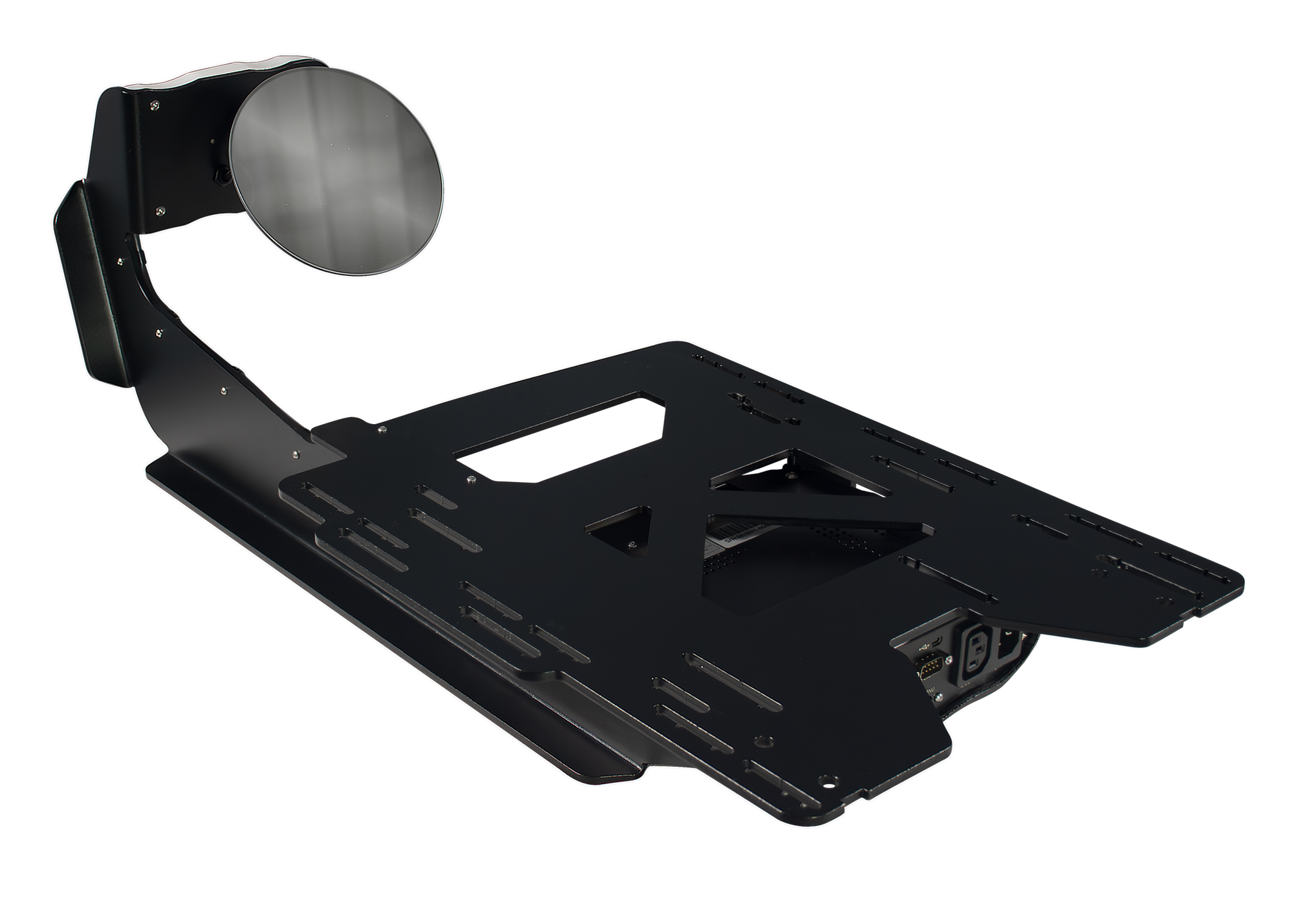

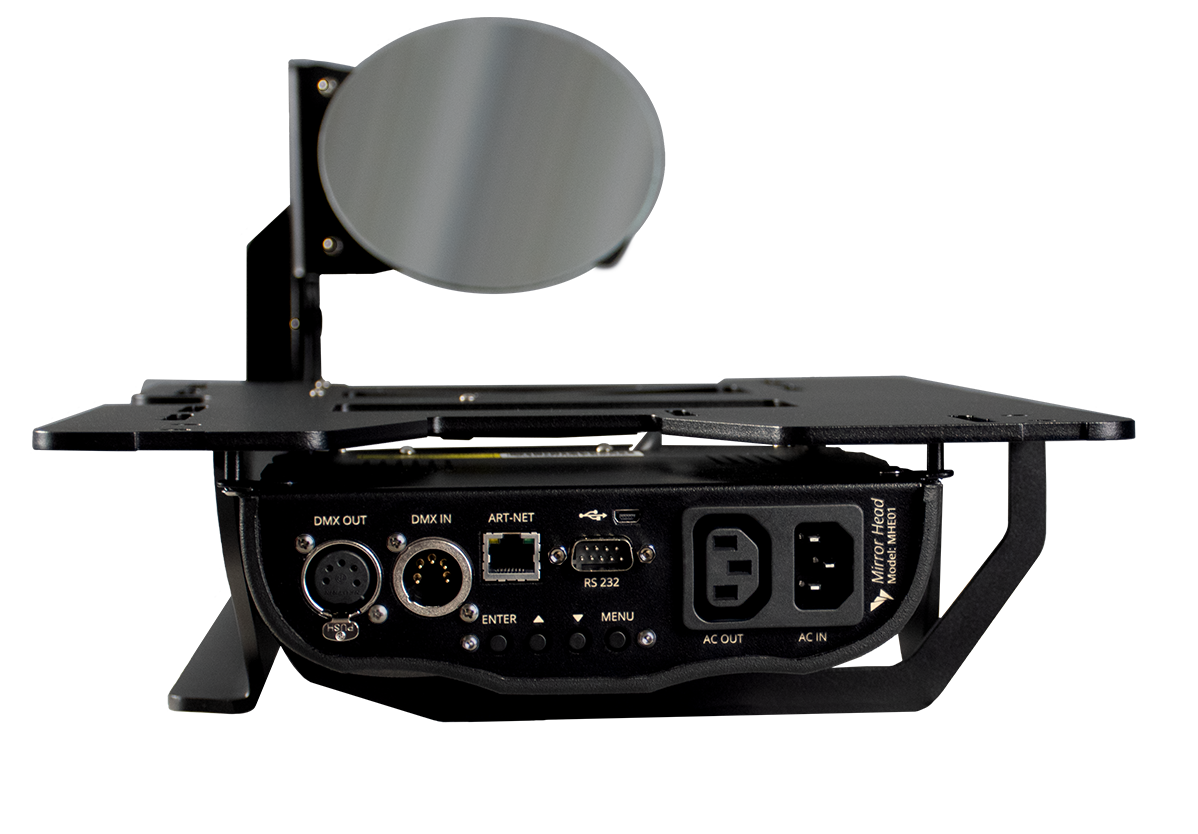

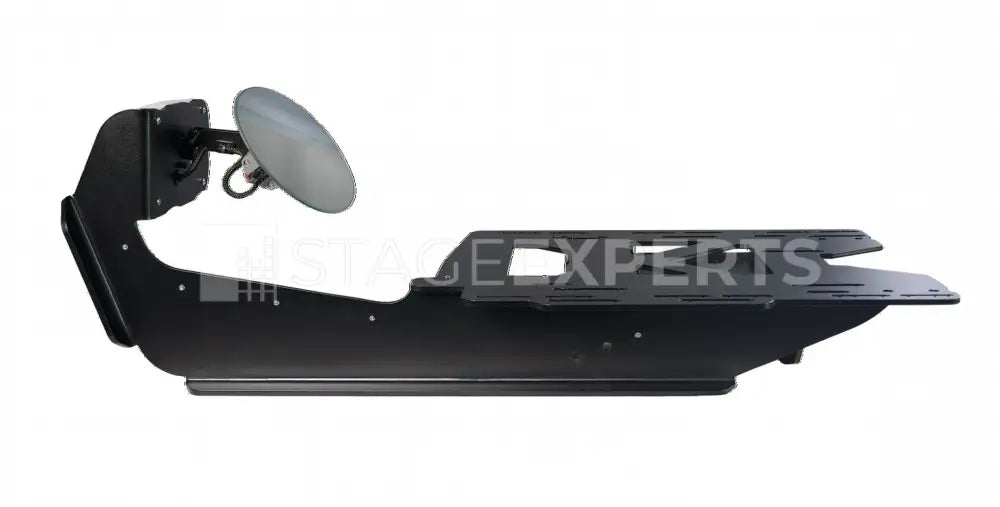

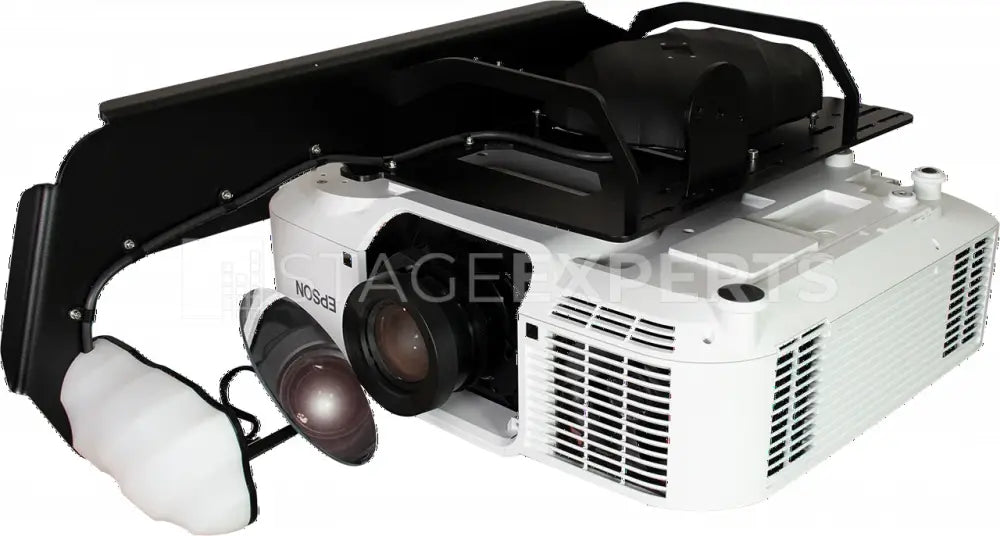

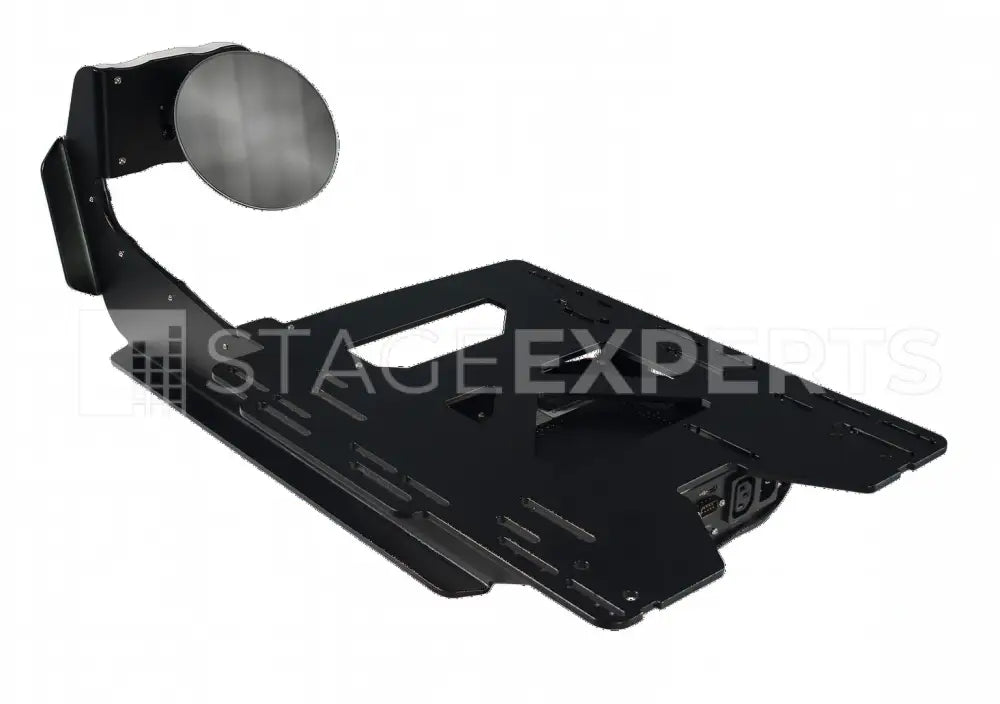

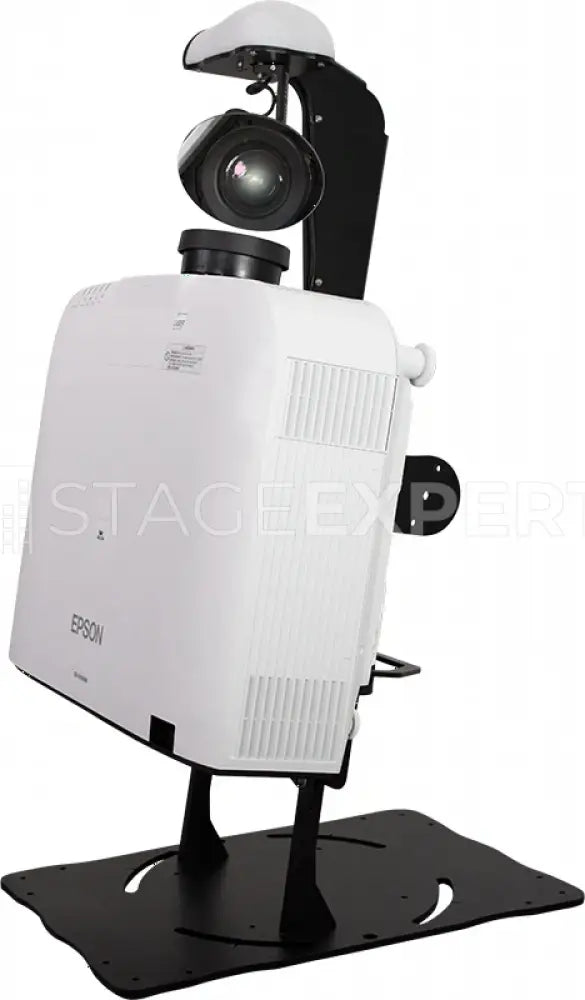

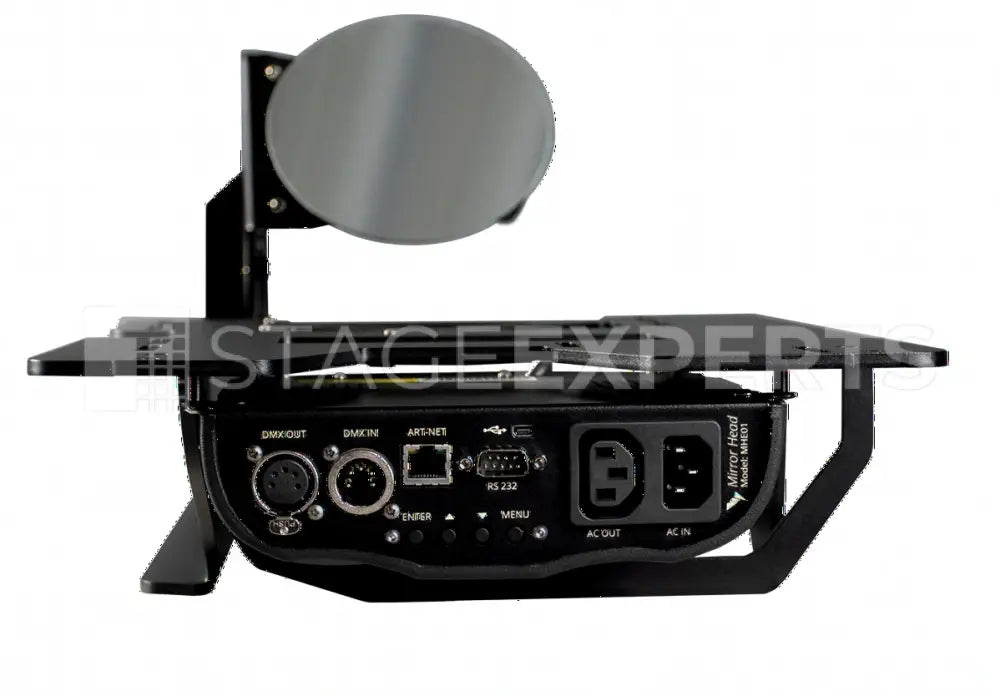

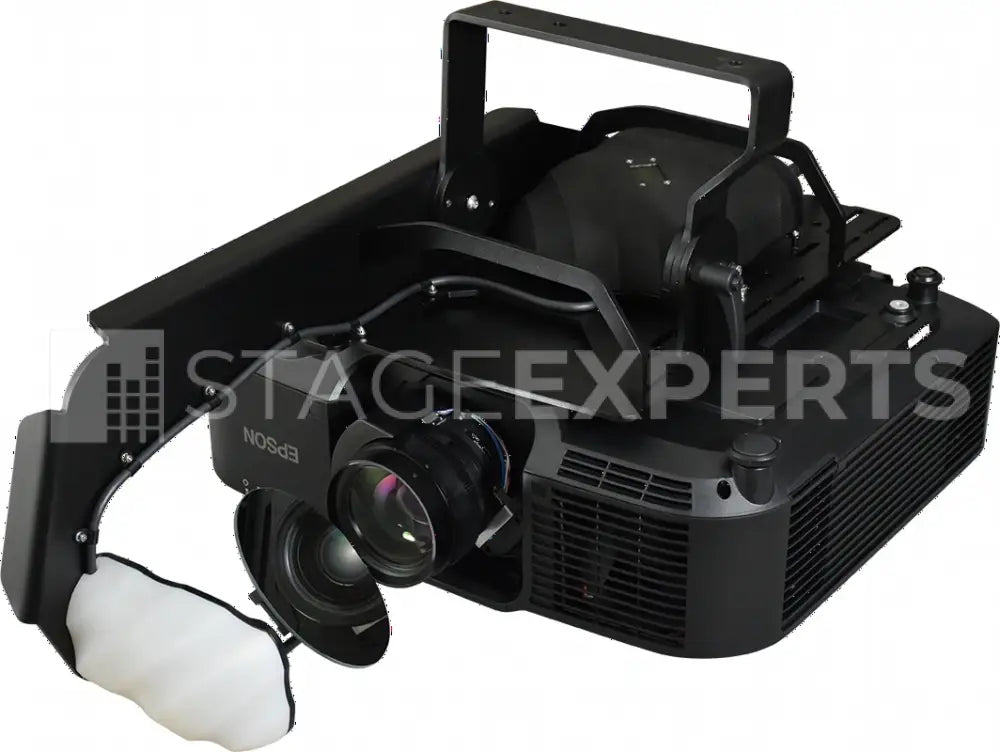

Where fixed projection ends, the Mirror Head 11 begins. The Dynamic Projection Institute Mirror Head 11 for Epson EB‑L1000 series is a digitally controlled, high‑precision mirror system that redirects static or moving images with exceptional repeatability. Compatible with Epson EB‑L1490U, L1495U, L1500U, L1505U, L1750U and L1755U, it supports projectors from 3,000 to 40,000 ANSI lumens. Micro‑stepping direct‑drive motors deliver smooth horizontal and vertical movement with up to 0.01° positioning accuracy and <0.02° repeatability. Control is flexible and integration‑friendly via 16‑bit DMX‑512 (14 channels), Art‑Net over RJ45, HTTP, MQTT and RS‑232 projector control. Setup is fast with auto‑calibration and a high‑resolution LED display, while the specially coated surface mirror offers around 98% reflectivity for crisp, efficient imaging. Built in Austria, the robust powder‑coated steel chassis and passive cooling ensure quiet, reliable operation from 5°–35°C and 20–80% RH (non‑condensing). Ideal for immersive shows, galleries, visitor attractions, retail, hospitality and live events, it enables dynamic, repeatable projection mapping across multiple targets without moving the projector.
Includes
- Dynamic Projection Mirror Head 11 – Epson EB-L1000
