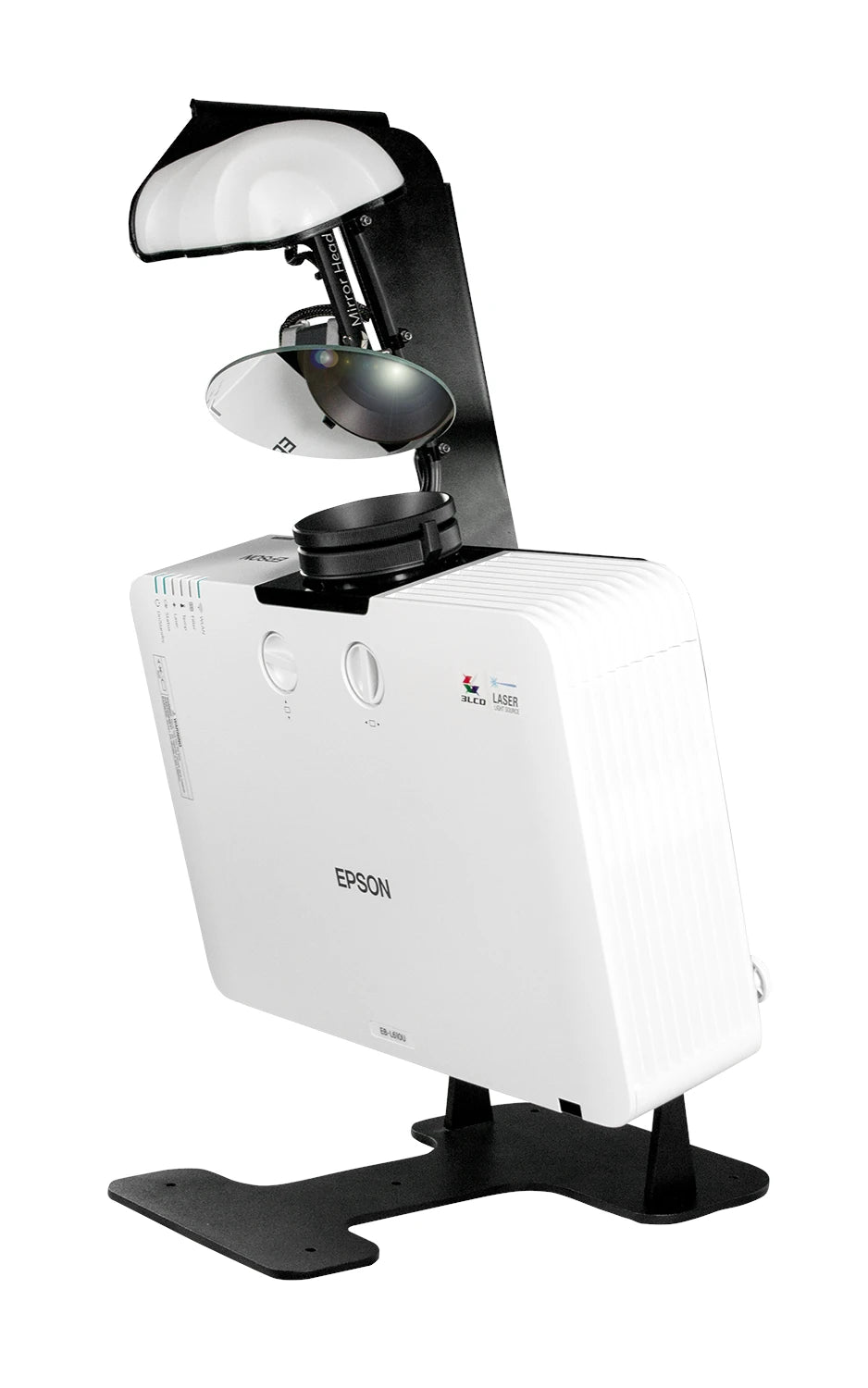

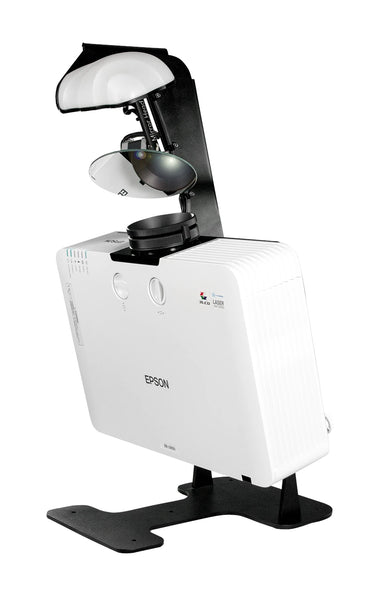

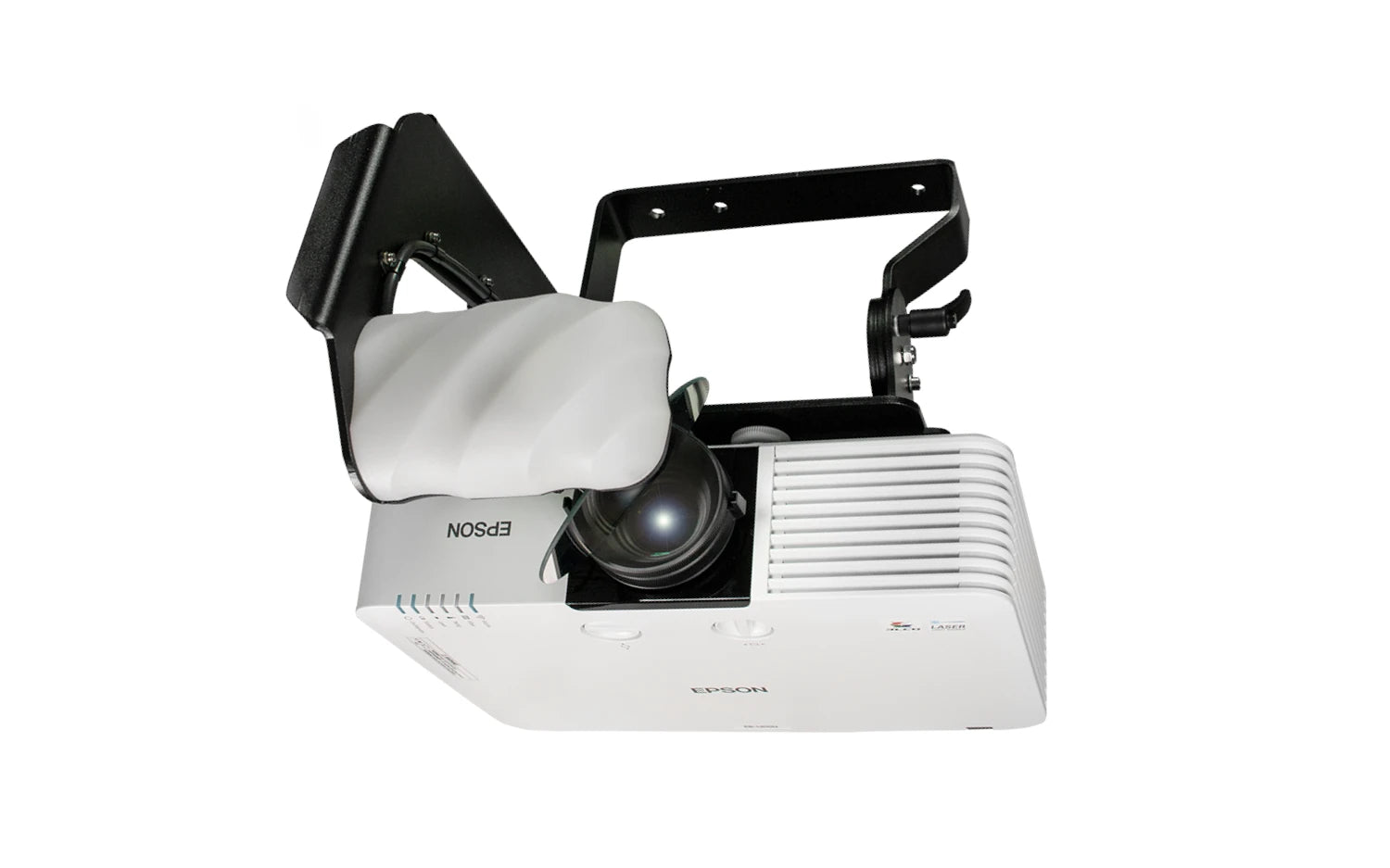

The Dynamic Projection Institute Mirror Head 09 (MH09-EBL6) adds precise, digitally controlled motion to compatible Epson EB‑L500, EB‑L600 and EB‑L700 series projectors. Purpose-built for professional installations, it redirects projection smoothly across multiple surfaces with high repeatability. High‑resolution micro‑stepper motors deliver 16‑bit pan/tilt with repeatability under 0.03°, while self‑calibrating positioning ensures cues remain locked show after show. Control is flexible and integrator‑friendly: DMX‑512 (14 channels), Art‑Net, HTTP and MQTT are supported, with integrated RS‑232 projector control. The DPCC web interface enables straightforward browser‑based setup, alignment and scene management.
A front‑surface mirror with approximately 98% reflectivity preserves brightness and contrast, and the passive, fanless mirror module supports quiet environments. Powder‑coated steel construction suits permanent installs. Recommended throw ratio is >1.40:1, and the unit is designed for WUXGA models up to 7,000 lumens. Typical operating conditions are 5–35 °C and 20–80% non‑condensing humidity.
Deploy the Mirror Head 09 to create dynamic projection mapping, immersive exhibits, retail activations and live event looks, all from a single projector with precise, repeatable movement.
Includes
- Dynamic Projection Institute MIRROR HEAD 09 for Epson L60...
STAGE16.2.100.800
