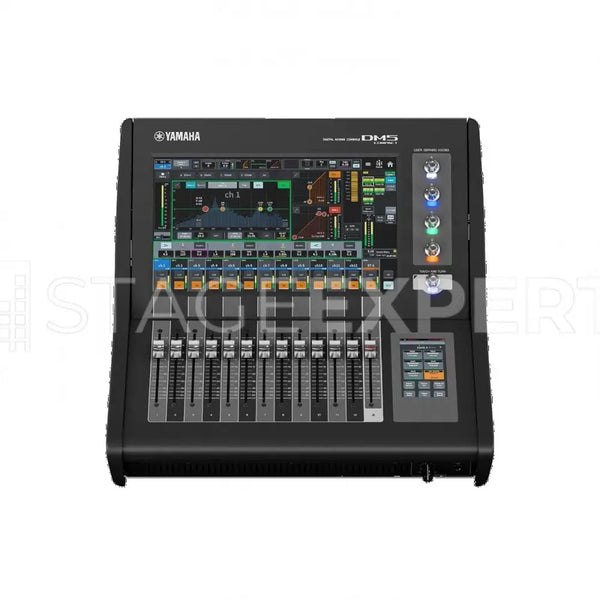

The Yamaha DM5C is a compact digital mixing console designed for professional live sound, broadcast and installed audio. It delivers up to 48 mono input channels with 24 mix buses, 12 matrices and 2 stereo buses, giving engineers flexible routing and control in a space-saving frame. A tiltable 13.3-inch multi-touch screen pairs with a 4.3-inch utility touchscreen for fast, intuitive operation, supported by 26 touch-sensitive 100 mm motor faders, four user-defined controls and a dedicated Touch & Turn encoder. Dante networking (64x64) with primary/secondary ports enables seamless integration with stage boxes and networked systems, while local I/O provides 16 mic/line inputs and 16 outputs. Onboard tools include 12 DCA groups, 12 mute/dim groups, 16 effects, Dugan automixing for 12 channels, and comprehensive EQ/GEQ. Connectivity extends to USB-C 18x18 audio for recording/playback, Bluetooth audio playback, a PY expansion slot and DAW remote mode. Operating at 96 kHz/48 kHz, the DM5C offers pristine audio and efficient workflows. Ideal for touring, corporate events, houses of worship and theatres.
Includes
- Yamaha DM5C
