SPHERISCAN LAMP SCANNER CLAY PAKY
SPHERISCAN LAMP SCANNER CLAY PAKY
SPHERISCAN LAMP SCANNER CLAY PAKY
  • Load image into Gallery viewer, SPHERISCAN LAMP SCANNER CLAY PAKY
  • Load image into Gallery viewer, SPHERISCAN LAMP SCANNER CLAY PAKY
  • Load image into Gallery viewer, SPHERISCAN LAMP SCANNER CLAY PAKY

SPHERISCAN LAMP SCANNER CLAY PAKY

Vendor
Clay paky
Regular price
€1,334.00 (ex.Vat)
Sale price
€1,334.00 (ex.Vat)
Regular price
€1,600.00 (inc.Vat)
Sold out
Unit price
per
We have 13 in stock.
Shipping cost to be calculated.

This is a used / pre-loved item, we do our best to uphold the quality of all our used equipment.

CLAY PAKY SPHERISCAN
Mirror and lamp scanner
Zoom 13 -34°
,
RGB
-
Three DMX channels
Can be used outdoors (IP54).
OSRAM lamp.
Little used

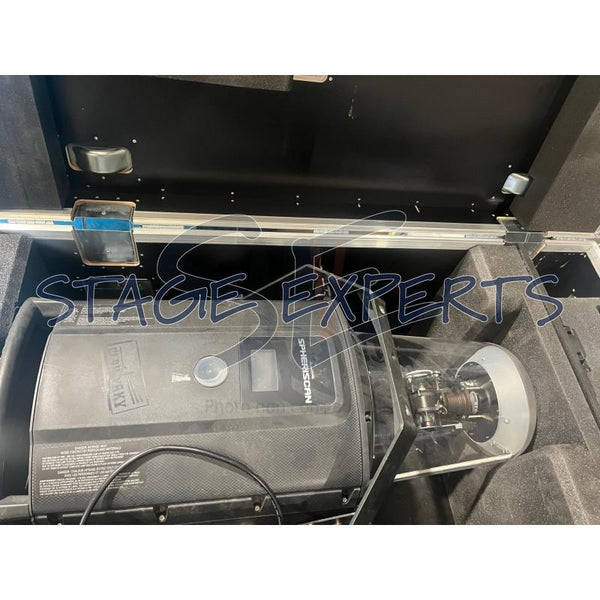

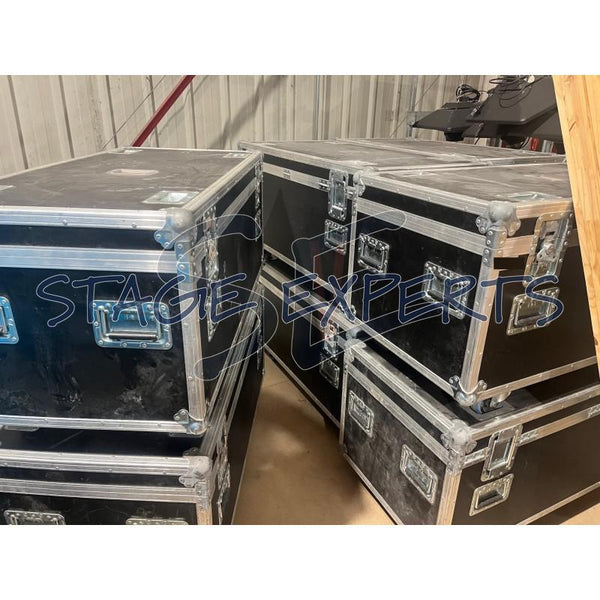

Delivered in flight solo
Revised and checked

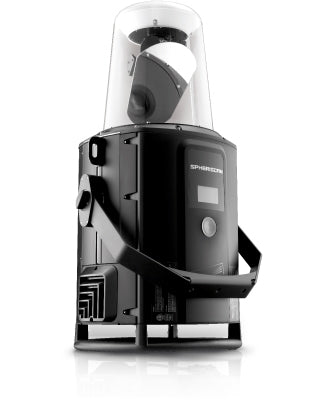

Spheriscan is a revolutionary scanner with a modern twist. The Spheriscan’s pan rotation does not have an end-stop: its mirror goes on turning endlessly beyond 360 degrees, which creates an absolutely original swirling effect. Its speed may be adjusted as desired and reach a maximum of 250 rpm, that is more than four revolutions per second! Spheriscan is without a doubt much more powerful and brighter than any of the other scanners that came before it. Its spanking new OSRAM lamp works at  1200 W. Spheriscan features a 13°-34° high speed zoom, 1 rotating gobo wheel with 6 gobos, 1 fixed gobo wheel with 8 gobos, a rotating prism, a fast sixteen-blade iris, a linear frost filter, CMY system, a 7-color wheel. A RGB system, built into the top head, turns it into a glowing transparent dome. Three dedicated DMX channels allow for unlimited colors. Spheriscan is built to be used outdoors (IP54). Using a special optional support system, Spheriscan may be recessed into the stage floor, with only its transparent head visible, to create original gazing projections. Lastly, you can also use the Spheriscan to project light directly, without the mirror (SPHERILIGHT configuration). Spheriscan is therefore a tribute to the past with an endless variety of state-of-the-art technical features. It is a powerful effects light capable of adding a new distinctive touch to shows and an appliance you can use on many occasions, including big events, indoor and outdoor concerts and architectural installations.
FEATURES


1400W OSRAM lamp (6000 K) working at 1200W
80mm front lens diameter
13°-34° Zoom
Mirror turning very fast over 360° and without stop (250rpm)
CMY System +7-color wheel
3 RGB leds under the dome
6 rotating gobos + 8 fixed gobos
8-facet rotating prism
16 blades fast iris
Variable frost
Fast stop/strobe effect
Art-Net / RDM
High performance electronics and firmware
IP54 Protection rating (the first moving mirror light for Outdoor use)
Conversion into Spherilight configuration (without mirror) to project light directly
It may be recessed to create original grazing projections


SPECIFICATIONS


Power


AC power input Neutrik PowerCON TRUE1 (IP65)


Input Power


1600 VA


Light Source


OSRAM Lok-it 1400-PS Lamp, working at 1200W


Optics


80mm front lens diameter


Color System


CMY System


Effects Section


Wheel with 6 interchangeable and indexable rotating gobos (26mm diam. image)


Control and Programming


31 or 35 DMX 512 control channels


Body


Aluminium and steel structure with plastic cover


Moving Body Pan


PAN


Tilt


Angle Rotation: 60°


Electronics


Long life self-charging buffer battery.


Support


±45° swivel bracket movement


Safety Devices


Automatic break in power supply in case of overheating


Working Position


Vertical or horizontal ±45° Working Position to ensure IP54


Weight


31.5 Kg (69.4 lbs)
