This is a used / pre-loved item, we do our best to uphold the quality of all our used equipment.

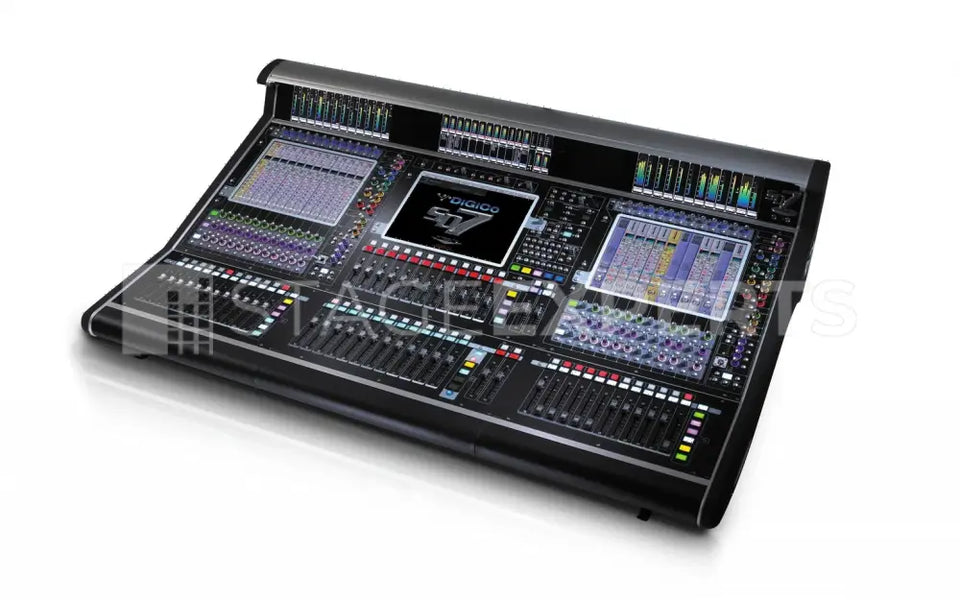

DIGICO MIXING CONSOLE SD7Digital mixing console comprising:
1 x SD7 control surface Stealth Core2 software - 2 engine - HMA in flight case
Sold without SD RACK ( not available )
Option: Theater available as an option
Year 2008
Material in perfect condition
Used - Revised and checked
MADI / OPTOCORE digital mixing console
Area :
38 Faders 10 0mm - 14 Faders 60mm
3 15 ”LCD touch screens
3 LCD Banner Screens
12 Mic / line - 12 AES I / O
4 Redundant MADI BNC Ports
2 Optocore Ports
iGiCo SD7 Digital Mixing Console
DiGiCo SD7: Mind-blowing I/O
The console that gives you everything you could ask for and more, the SD7 is the much-loved choice of the world’s most respected sound engineers. Having redefined touring sound, the SD7 is the standard by which other consoles are judged.
Drawing on ground-breaking Stealth Digital Processing and Super FPGA technology, the SD7 offers the engineer previously unimagined I/O capabilities – 256 processing paths at 48kHz/96kHz.
All of that power sits beneath your fingertips when you step up to the iconic SD7 work surface, equipped with three touchscreens, each accommodating a bank of 12 faders, plus 16 assignable faders in the centre. The resulting workflow is as innovative as it is intuitive and practical, with HD meter bridges and colour-coded knobs to ensure at-a-glance operation. You can even choose to expand your fader count with the DiGiCo EX-007 Fader Expansion Unit, while two EX-007s can be connected via Cat5e for either remote control or an expanded fader-count of 100.
Under The Hood
With a massive 256 processing paths at 48kHz/96kHz, the SD7 is the Einstein of digital mixing platforms.
Standard channel processing, whether inputs or outputs, includes Channel Delay, DiGiTuBe, Single and Multi-Channel Presets, Hi- and Lo-pass filters @ 24dB/octave, four-band parametric EQ (eight on outputs) with band curve selection and Dynamic EQ on each band, Dual insert points, and DiGiCo’s DYN 1 (Compressor, De-esser or Multiband Compressor) and DYN 2 (Gate, Compressor or Ducker).
Incorporated within the master section are 32 gangable 32 band graphic EQs, 48 stereo effects, and 36 control groups (VCAs). Using snapshots, engineers can switch between complete configurations in any live environment at the press of a button – during rehearsals, setup or even during a show.
In addition, the SD7’s 128 busses can be assigned as mono/stereo groups or auxiliary busses, while further configurability is available courtesy of a 32 x 32 output matrix , dual solo busses, and a Master buss. Unlike all other digital console manufacturers, you don’t lose Aux or Group Busses when using the Matrix as they are in addition, including the Master buss.
