K15 HY B-EYE LYRE LED CLAY PAKY

Vendor
Clay paky
Regular price
€4,223.00 (ex.Vat)
Sale price
€4,223.00 (ex.Vat)
Regular price
€5,068.00 (inc.Vat)
Sold out
Unit price
per
We have 14 in stock.
Shipping cost to be calculated.

This is a used / pre-loved item, we do our best to uphold the quality of all our used equipment.

CLAY PAKY A. LED A B-EYE K20
Led lyre of 19 Led x 40  w RGBW
Used - Reviewed and checked
Between 2500 and 3000 hours
In a perfect state

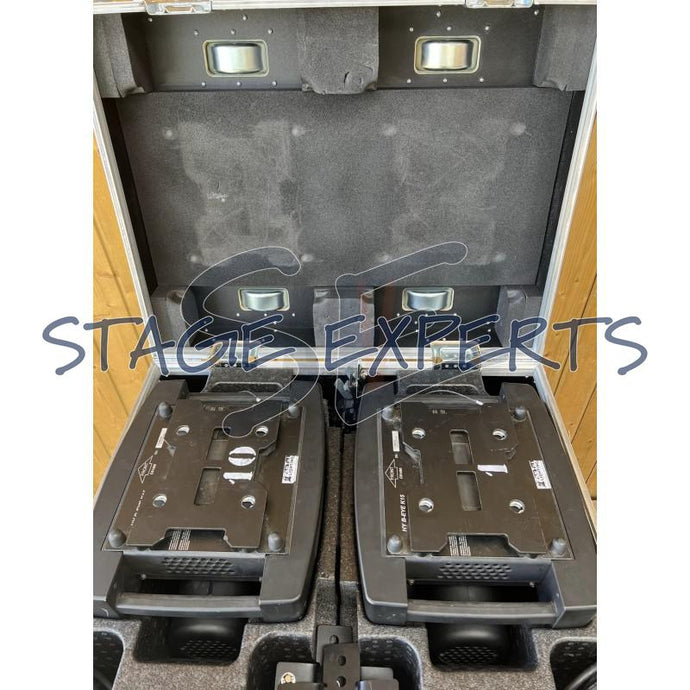

Supplied in a double flight case with Omega.

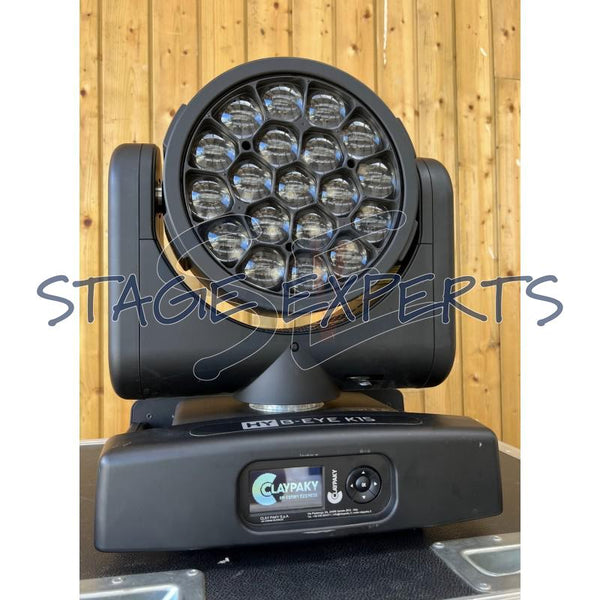

Clay Paky HY B-EYE K15 LED Moving Head Wash
The HY B-EYE K15 and K25 are the logical continuation of the successful B-EYE series, but due to the 40W RGBW LEDs used many times brighter than its predecessors. The HY B-EYE series is also versatile and can be used as wash or beam light. The wide range of spectacular effects leaves nothing to be desired in terms of creativity.
The B-EYE convinces as a wash light with excellent colors, an extremely homogeneous illumination, a variable CTO and an impressive zoom range of 4°- 60°. The rotatable and indexable front lens also enables impressive kaleidoscope and beam effects. Virtual gobos are used to actively change the beam defined with 4°, in the projection, also the colors of the gobos and their backgrounds can be individually adjusted, allowing multi-color projections. With the digital, rotatable and indexable beam shaper (e.g. Ovalizer), the shape of the beam can also be adjusted to illuminate specific areas of the stage.
Features


760W RGBW LED
Versatile use: wash, beam, FX-effects
Rotating front lens for countless kaleidoscope and beam effects
Narrow beam due to parallel micro beams
LEDs can be controlled individually
Very homogeneous illumination
Virtual gobos for impressive effects
Zoom: 4° - 60
Digital beam shaper (e.g. Ovalizer)
Color temperature variably adjustable
Very quiet operation
Technical Data
Light Source and Optics


Light source:19 RGBW LEDs driven at 40 Watt
Light source type: OSRAM OSTAR - Stage II LE RTDUW S2WN
Color Temperature: 6,000 K
Lamp life: 50,000 hrs
Zoom: 4° - 60°
Effects


Three operating modes: wash, beam, FX (Kaleido effects)
Bi-directional Rotating Front Lens
Digital Wash-Beam Framing effect
Beam edge softening control (in Wash mode)
Pixel Patterning Macros with enhanced control
0-100% linear electronic dimmer
Adjustable speed stop/strobe effect, with instantaneous blackout
Dedicated channel for color temperature setting
White CT Emulation 2500-8000K
RGBW auto-tuning to lamp CT Emulation
Tungsten Lamp Emulation
Slow Strobe: 1 flash/sec; Fast Strobe: 25 flash/sec
Control and Programming


DMX protocol signal: USITT DMX 512
Art-Net / RDM
Arkaos Kling-Net protocol already included in the firmware
Display: Graphic LCD backlit b/w Display
Pan: 540°
Tilt: 200°
Pan/Tilt Resolution: 16 bit
Dimmer Resolution: 16 bit
Movement control: vectorial

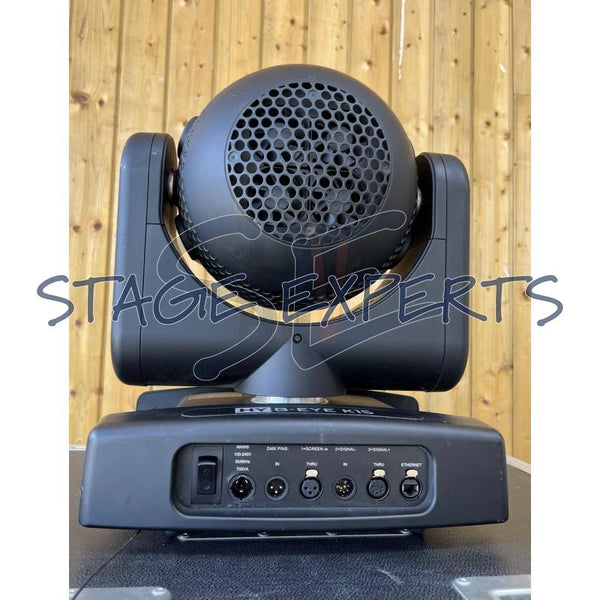

DMX signal connection: 3 and 5 pole XLR input and output
Software upload through DMX input
Electronics


Power supply: 100-240V 50/60Hz
Input power: 700 VA at 230V 50Hz
Display: backlit black-and-white graphic LCD display
Electronic check-up of every single parameter with error alarm
DMX level monitoring on each channel
Automatic internal data transmission error diagnostics
Firmware upgrade even when the unit is not connected to the power supply
Firmware transfer from one light to another
Forced ventilation
General


Housing: Aluminium structure with die-cast plastic cover
Hanging system: with fast-lock omega clamps (1/4 turn) on the base
Dimensions (WxDxH): 391 x 387 x 438 mm
Weight: 20,7 kg
Scope of Delivery


1x HY B-EYE K15
2x Omega Clamp
1x PowerCon cable without power plug
