High End Systems - Hog 4

Stage Experts Ltd
Regular price
€9,999.00 (ex.Vat)
Sale price
€9,999.00 (ex.Vat)
Regular price
€11,998.80 (inc.Vat)
Sold out
Unit price
We have 1 in stock.
Shipping cost to be calculated.

Good Condition Used - Including Flight Case and Dust Cover

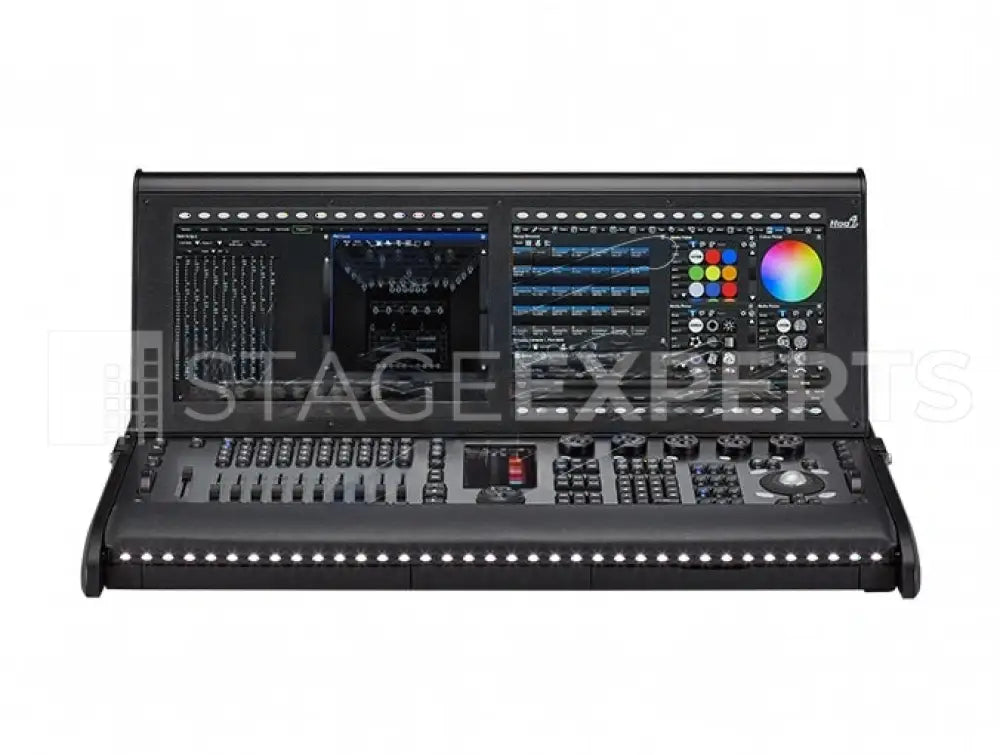

The Hog 4 is designed for the largest stadium shows, theme park installations, and concert tours. Hog 4 shines in any environment requiring a multi console setup and networking.

Hog 4 embraces the latest technology while retaining the familiar control surface of previous generations. Programmers will power through cueing sessions using multitouch monitors, high resolution encoders, jog shuttle wheel, LCD keys and motorised faders. Conveniences such as integrated storage drawers and keyboard, dual colour surface work lights and reading lights Make Hog 4 the programmers choice!

  • Robust Hog 4 OS operating system
  • Hog-Net etherCON connector
  • Fixture-Net etherCON connector
  • Unlimited simultaneous crossfades
  • Internal solid-state hard drive
  • Two 17-inch 10-point touchscreens on tilt-adjustable panel
  • Six-inch center touchscreen
  • Up to three external DVI-I monitors/touchscreens supported
  • 10 motorised playback faders
  • Motorised Grand Master
  • Dedicated DBO toggle key
  • Dedicated intensity and rate wheels
  • Five expanded-wheelset encoders
  • 12 user-assignable function keys with associated LCD
  • Tri-axis backlit trackball with rotary encoder and four configurable buttons
  • User-assignable jog/shuttle encoder
  • 48 toolbar selection keys
  • Integrated QWERTY keyboard
  • Storage space with USB slot beneath arm rest
  • Kensington security slot
  • Integrated dimmable white lap work light
  • Integrated dimmable blue vent light
  • Two dimmable white/blue desk lights included
  • Two USB flash drives for show storage and console recovery included
  • LIGHTCONVERSE Media visualiser dongle included
  • Dust cover included
  • Custom road case included
  • Compliance: ETL, CETL, CE
  • Local output processing: 16x universes (8192 output channels)

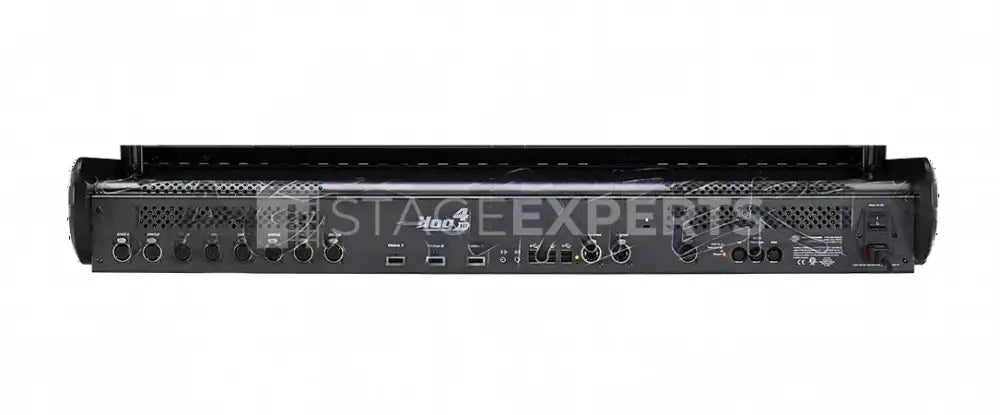

  • Local DMX-512 outputs: 8x Neutrik 5-pin XLR
  • Expandable DMX-512 outputs via USB DMX Widgets
  • Local Art-Net and E1.31/sACN outputs: 1x 1GB/s Ethernet port
  • Unlimited DMX-512, Art-Net and E1.31/sACN universes via HogNet-connected DP8Ks
  • LTC/SMPTE input via 3-pin XLR
  • MIDI in/out/thru supporting MIDI messages, MIDI Show Control, and MIDI Time Code
  • Expandable MIDI and LTC inputs via USB MIDI/LTC Widgets
  • Connectivity with visualisers via Fixture-Net (Art-Net or E1.31/sACN, unrestricted by local output capacity)
  • OSC (Open Sound Control) for remote control and integration
  • Supports USB playback and expansion Wings
  • USB 2.0 ports: 6 rear / 1 armrest / 1 drawer
