This is a used / pre-loved item, we do our best to uphold the quality of all our used equipment.
D&B D20 AMPLIFIERFour channel amplifier
Maximum output power
4 x 1600 W at 4 Ω
All current D&B loudspeakers, except J-Series, M2 and SL-Series
TFT color touch screen, 3.5" / 320 x 240 pixels
Delivered without flight case
Product presentation
The D20 is a 4-channel (2RU) amplifier suitable for sedentary or mobile environments requiring low to medium sound pressure level ( SPL ). The D20, which uses the same Digital Signal Processing (DSP) platform, is designed to work with all loudspeakers in the d&b range (except the J Series and the M2 stage monitor) and proposes a linear mode. Each channel can benefit from a fully configurable delay function up to 10 s (= 3440 m/11286 ft) and two 16-band EQs with optional parametric, asymmetrical, shelving or notch filtering. The D20 incorporates a color TFT touch screen for quick access to the various menus as well as a rotary digital encoder for fine adjustments. The front panel and integrated touch screen of the D20 amplifier is tilted upwards to facilitate operations in case of low placement. The equivalent ratio between the input signal and the output channels of the amplifier allows greater flexibility of application, especially in stage monitor, frontfill or for effects channels. The LoadMatch function integrated into the D20 amplifier makes it possible to compensate for the electrical properties of the speaker cables. The D20 integrates Class D amplifiers with a power supply with Power Factor Correction (PFC) compatible with 10 0 V - 240 V, 50 - 60 Hz standards and offers a stable and reinforced output in case of use behind a weak or unstable electrical source. An NL8 groups all the outputs on a single connector. Dual channel mode configurations are available on four NL4s, and Mix TOP/SUB and 2-Way Active configurations are available on selected d&b loudspeakers via two center NL4 connectors. RJ 45 and etherCON connectors allow (respectively) CAN-Bus and OCA remote network access via Ethernet.
The D20 is a 4-channel amplifier suitable for sedentary or mobile environments requiring a low to medium sound pressure level ( SPL ).
Maximum output power
Suitable for all current d&b loudspeakers, except J-Series, M2 and SL-Series
TFT color touch screen, 3.5″ / 320 x 240 pixels
digital signal processor
Equalizer: 2×16 band EQP notch/filtering/unbalanced
Latency analog and digital inputs: 0.3 msec.
Delay setting: 0.3 – 10 msec.
Configurations: current d&b loudspeakers (except SL-Series, J-Series and M2) and linear mode
Switches: d&b specific speaker circuits
Frequency Generator: Pink Noise or Sine Wave
Sampling rate: 96 kHz / 27 Bit ADC / 24 Bit DAC

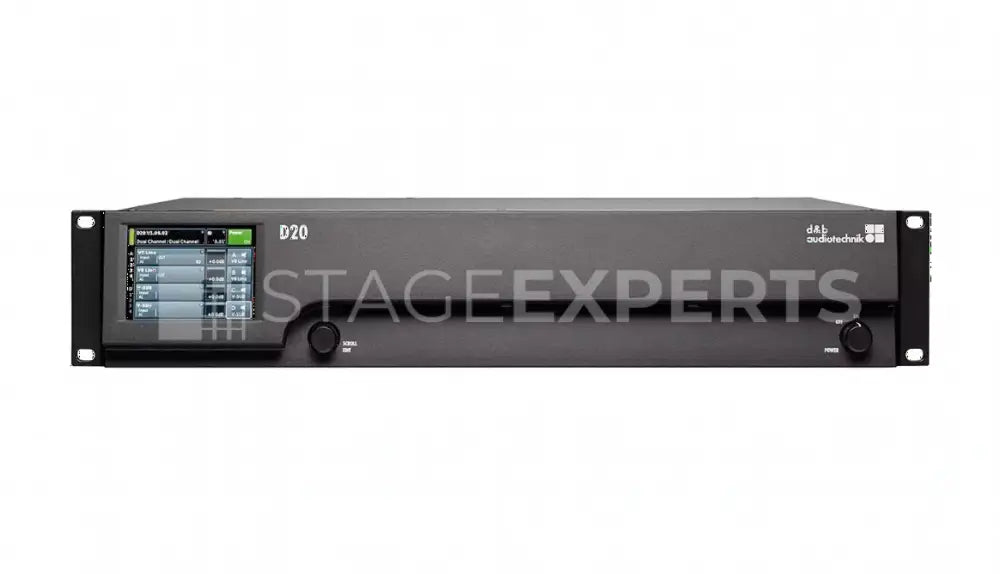

Controls and Indicators
Power: Power switch
Scroll/Edit: Digital rotary encoder
`Display: TFT color touch screen, 3.5″ / 320 x 240 pixels
ISP, GR, OVL A/B: Color TFT

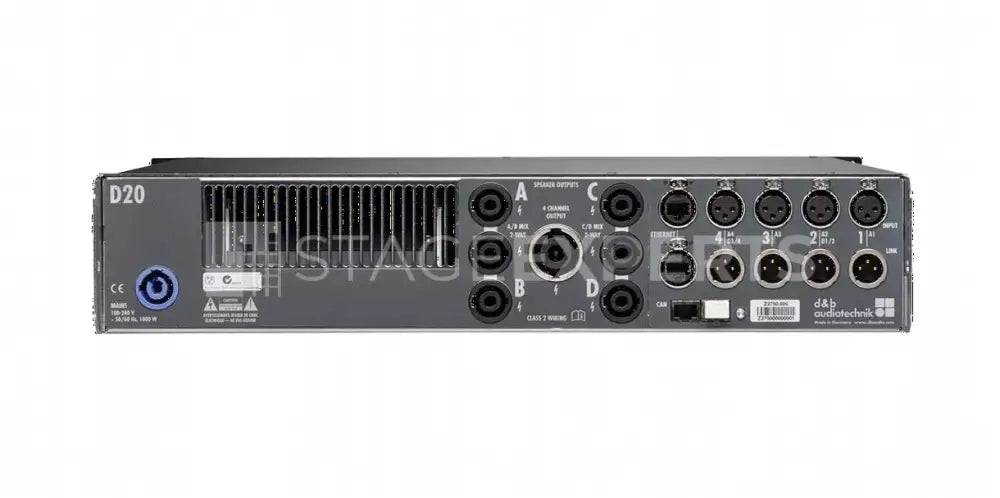

Connectors
ANALOG INPUT (A1 – A4): 3 pin XLR female
CONNECT. ANALOG (A1 – A4): 3 pin XLR male
DIGITAL IN (D1/2, D3/4): 3 pin XLR female AES 3
CONNECT. DIGITAL (output): 3 pin XLR male
AES/EBU digital sampling: 48 kHz/96 kHz
Speaker outputs A/B/C/D: NL4
Output A/B and C/D Mix TOP/SUB / 2 active channels: NL4
4-channel output: NL8
CAN: 2 x parallel RJ 45
ETHERNET: 2 x etherCON
®
Mains connector: powerCON
®
Power supply
Type: Switch mode power supply (universal ranges) with active PFC
Rated voltage: 10 0 – 240 V, 50 – 60 Hz
Dimensions / weight
Dimensions (H x W x D): 2 RU x 19″ x 460mm/18.1″
Weight: 10 kg /23.8 lbs
