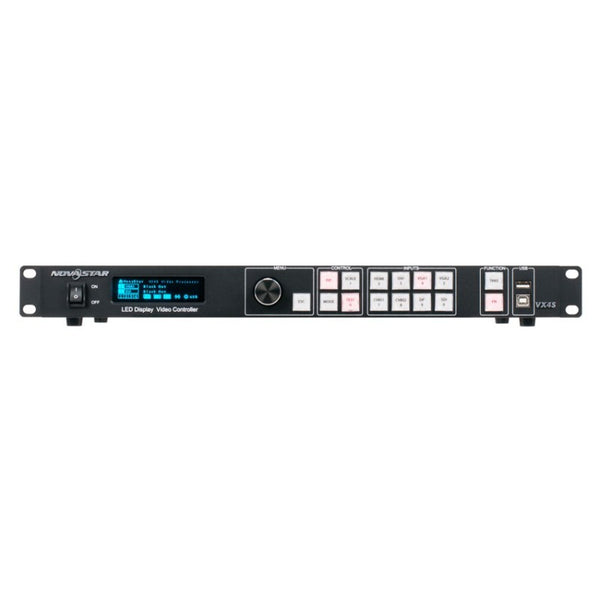

The NovaStar VX4S is a powerful LED video wall controller with an integrated high‑performance scaler, designed for fast setup and reliable operation. It offers versatile connectivity with inputs for HDMI, DVI, DisplayPort, SDI, two VGA and two CVBS sources, plus DVI and SDI loop outputs for signal pass‑through. A preview monitor can be connected via the DVI or VGA outputs to streamline show workflow. For straightforward LED configurations, on‑board menus enable direct setup without a PC; for complex walls, NovaStar PC software is supported. The VX4S drives up to 2.3 million pixels, with a maximum width of 3840 pixels, and provides four RJ45 output ports for distributing data to your LED cabinets. Housed in a 1U, 19‑inch chassis with an auto‑ranging 100–240 V power supply, it’s efficient at just 16 W and built for touring and installations alike. Dimensions are 483 x 275 x 45 mm, weight 2.55 kg. Ideal for corporate events, live production, and fixed installations requiring dependable LED processing and scaling.
Includes
- DisplayPort cable
- VGA cable
- USB cable
- HDMI cable
- DVI cable
- Cat5 cable
- Schuko to IEC mains cable
