This is a used / pre-loved item, we do our best to uphold the quality of all our used equipment.

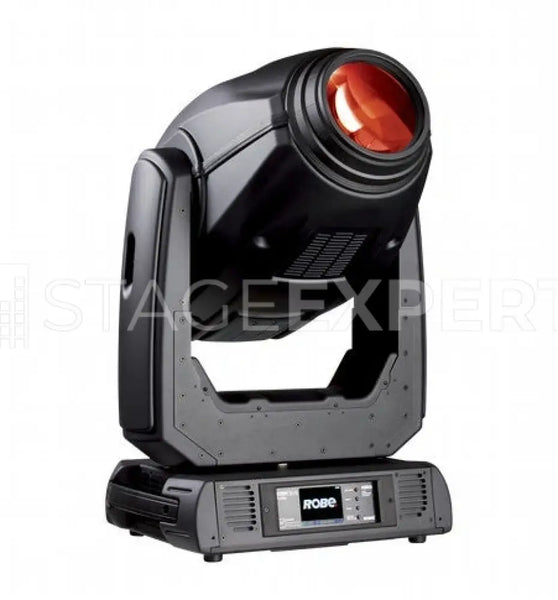

LYRE LED ROBE DL7S PROFILE800w LED knife lyre
Machine in perfect condition.
Little used.
Revised. Controlled.
Delivered without flight case ( possible in option )
( dolly possible following quantity )
The DL7S allows as much superb deep saturations as soft pastels and offers a rich color spectrum: its color composition and gradation modulus has been speci fi cally modified for a very smooth result, without increment, especially at very low output level.
The DL7S also adds a fast 4-knife cutting system to the proven optical train of the DLS Pro fi le format. Each knife is individually controllable in position and orientation, mounted on a fully rotating cradle. It achieves both perfectly sharp images and controlled blur and adds a new series of pre-programmed effects based on sequences of shapes and movements made with the knives. As with all Robe DL models, the phantom shadows traditionally associated with LED sources have been eliminated.
Tungsten emulation allows the DL7S to be easily integrated into a fire plan based on traditional systems.
Technical characteristics :
• Source: 7-color module 800W Robe
• Lifespan: 20,000 h
• IRC:> 90
• Beam opening: zoom 8 ° - 45 °
• Front lens diameter: 132 mm
• CMY or 7 colors (8 or 16 bit) + variable CTO
• Virtual color wheel with 237 pre-programmed colors plus white (2700 K, 3200 K, 4200K, 5600 K and 8000 K)
• Tungsten effect at 2700 K and 3200 K
• Aluminum animation wheel
• Rotating and indexable circular prism effect wheel with 4 facets
• Wheel with 8 fixed gobos, 'SLOT & LOCK' system (8 metal + 1 glass)
• Wheel with 6 rotating, indexable and replaceable glass gobos, 'SLOT & LOCK' system + empty slot
• Cutting module: 4 individually positionable knives and complete rotation of the cutting support by +/- 45 °
• Smooth knife movements at programmable speed
• Ultra fast knife movements for atmospheric effects
• Motorized iris, without increment, pulsation effects up to 3 Hz
• Prism: 5 facets at 10 °, rotating, 2 directions and programmable speed
• Separate progressive frost filter
• Motorized zoom and focus
• EMS: Electronic Motion Stabilizer, stabilization system compensating for deviations of the beam due to movements of structures or vibrations
• User interface: ROBE Navigation System 2 (RNS2) interface
• Communication protocols: USITT DMX-512, Art-Net, MA Net, MA Net2, sACN, RDM
• Optional Lumen Radio CRMXTM wireless technology
• Control channels: 56, 48
• 2 DMX modes
• 3 customizable internal programs of 10 0 steps each • QVGA Robe touch screen with internal battery, inclinometer for automatic orientation of the display, usage history with real time clock
• Ethernet port: Art-Net, MA Net, MA Net 2, sACN
• Data input / output: 3 and 5 pin XLR locking
• Mains connection: Neutrik PowerCon
