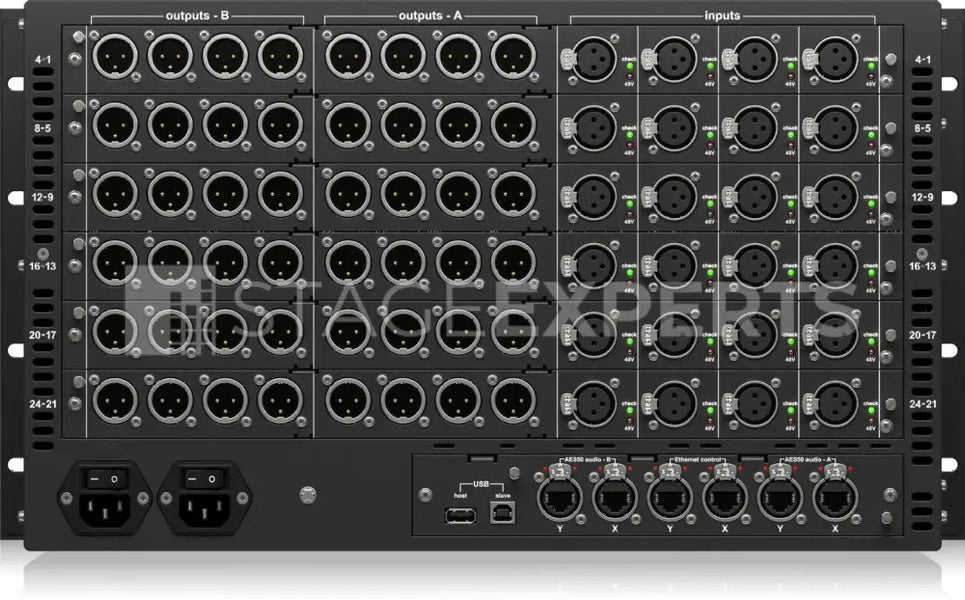

The Midas DL431 is a 24‑input, 72‑output active microphone splitter engineered for the most demanding live and broadcast environments. Each channel features three renowned Midas mic preamps with switchable +48 V phantom power, delivering ultra‑low noise, high headroom performance. For flexible signal distribution, every input provides two electronically balanced outputs plus a transformer‑balanced isolated output per channel, enabling pristine, independent feeds to FOH, monitors and recording. Dual‑redundant AES50 ports (X and Y) offer robust digital networking and remote control up to 80 m over CAT5/5e, while a built‑in headphone amplifier supports quick local monitoring. Operational confidence comes from front‑panel control with a clear configuration LCD, channel status indication and PSU health LEDs. Built for tour‑grade reliability, the DL431 employs Neutrik etherCON connectivity, a rugged 6U rackmount chassis and dual‑redundant, auto‑ranging switch‑mode power supplies. Running at 24‑bit/96 kHz, it ensures superior audio resolution and consistent results.
Ideal for touring productions, festivals, broadcast trucks and fixed installations where reliable, high‑quality mic splitting and networked redundancy are essential.
Includes
- Midas DL431 24ch Active Mic Splitter with AES50
