This is a brand new item.
MIDAS HERITAGE D 96/24Digital console: 144 inputs and 120 flexible mix bus outputs
Year 2024
NEW BRAND - Manufacturer's warranty

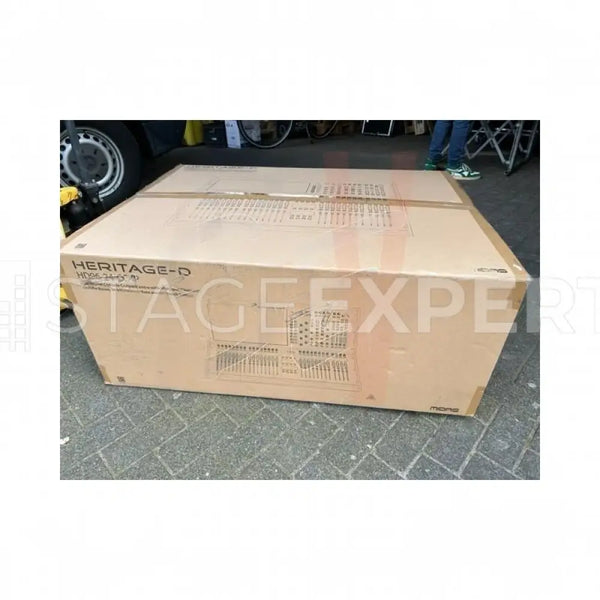

Delivered in original cardboard box
Technical specifications Heritage-D 96:
144 flexible inputs
120 flexible outputs
Up to 96 stereo effects
24 VCA groups
24 POP/ Layer Groups
Variable phase rotation per input
Auxiliary bus can now be returned in an auxiliary allowing different signal paths such as Input -> Aux/Group -> Aux/Group -> Master-> Matrix, integrating processing at each stage and all with total time alignment
Processing and calculation via 64 Bit FPGA and GPU co-processors adapted to each calculation function
Fully flexible insert points
Additional independent 16 to 12 mixing matrix with configuration recall (can be dedicated Order circuit, etc.)
Dual SOLO circuit incorporating Ducker and configurable AFL/PFL for inputs and outputs
In addition to the standard signal processing per channel (Exp/Gate, Compressor, Delay etc.), a bank of 128 freely assignable dynamics processors is available:
128 4-band dynamic EQs/compressors with MS Mode and Sidechain function per band
40 Effects / Processing and emulations (list of course evolving over time) including:
CT 6000 / 3000
2290
Mesa EQ
HD2a, HD670, KT1176, R Comp3, KT Compressor Bus, M6 Compressor, XL4 EQ…
Ocean Eq (Type Lake)
Automatic detection, identification and warning of preamp overload of channels
Connected console with internal/external session backup on Cloud
Off Line editors that can run on MAC/PC
Possibility of importing/exporting configuration parameters via Excel file, Number, etc.
On-stage bus mixing via HD-Q iPad/iPhone app
Surface :
40 240×240 color LCD screens
Large touch screen with 10 simultaneous control points
Large panel of encoders and dedicated buttons for traditional control of an input/output/master strip of the talkback and monitoring network
28 fully programmable channel faders
Central section with encoders and programmable multi buttons
Double circuit of SOLO
Delivered with or without Flight-case.
Consult us
Back Panel:
Standard dual power supply
8 programmable analog inputs/8 analog outputs
4 AES50 Super Mac standard 24-channel local bi-directional ports for a total of 192 channels
2 AES50 Giga Bit Cat5/Fiber ports 192 bi-directional channels per port
3 AES/EBU ports
2 expansion slots provided for up to 128 96kHz/Slot channels (CM1 format initially compatible with current DANTE/MADI KT64-DANTE/MADI cards)
1 Ethernet control port/1 HDMI port/External synchro input/output/MIDI (In, Out, Thru)
Physical specifications:
