This is a used / pre-loved item, we do our best to uphold the quality of all our used equipment.

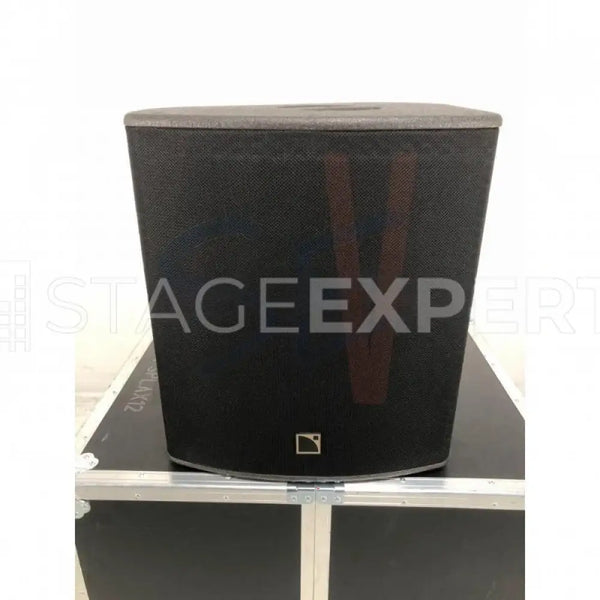

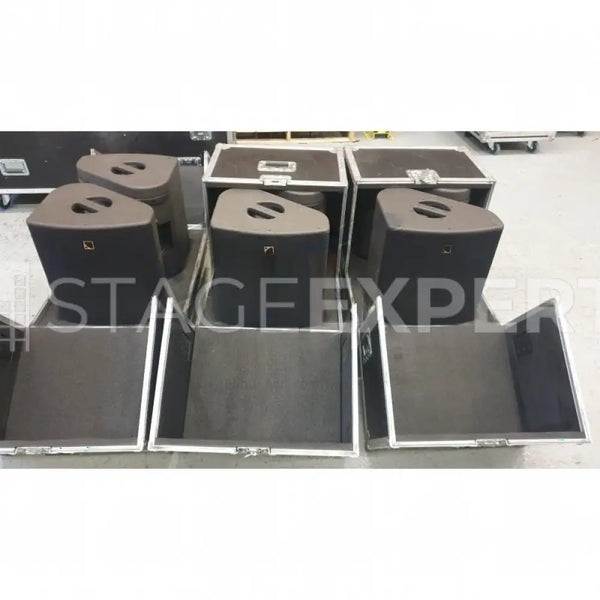

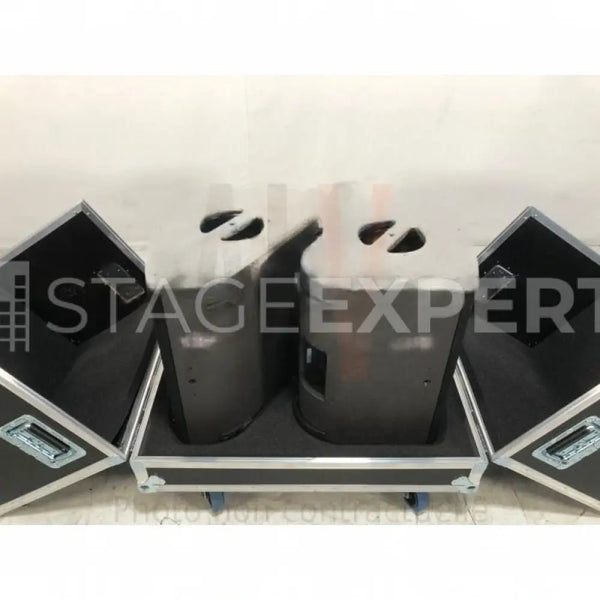

L-ACOUSTICS SPEAKER X122-way passive X12 coaxial speaker
Equipped: 01 x HP 12 '' (LF) + 01 x 3 '' (HF)
Used Equipment . Little used
Delivered without flight case.
Manufacturer's warranty 2024
Detailed descriptions
Multipurpose speaker
90 ° x 60 ° ellipsoid directivity adapted to the facade
Small footprint and RAL colors, easy integration
Reduced weight, optimized ergonomics for handling
Complete range of hanging accessories
Passive design for optimized amplification
Specifications
2-way passive coaxial speaker, amplified by LA4X / LA8. 59 Hz - 20 kHz ([X12])
Useful bandwidth (- 10 dB):
Maximum SPL : 134 dB
Nominal directivity:
vertical: 90 °
horizontal: 60 °
Monitor angle:
35 ° without wedges
55 ° with wedges
Transducers:
LF: 1 × 12 "bass-reflex, laminar vents
HF: 1 × 3 "neodymium compression driver, 8 Ω ellipsoidal waveguide
Nominal Impedance: 8Ω
Connectors:
IN: speakON
LINK: speakON
Hanging and handling:
2 × handles
M8 threaded insert compatible DIN580
4 × thread inserts M 10
2 × 35 mm foot bases
Joinery: birch plywood and Baltic beech
Finishing:
dark gray brown Pantone 426C
pure white RAL 90 10
specific RAL code on order
IP: IP43
