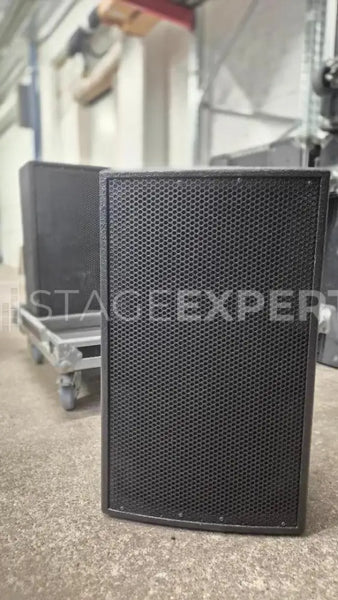

The Concert-Audio V12 is a compact passive 12-inch/1-inch PA loudspeaker built for professional reinforcement where clarity, output and flexibility are essential. A 12-inch cone driver pairs with a 1-inch compression driver on a rotatable 90° x 75° constant-directivity horn, ensuring articulate vocals and even coverage in portrait or landscape orientation. With a 400 W programme rating (800 W peak) at 8 ohms, 99 dB sensitivity and up to 127 dB peak SPL, it delivers confident headroom and a balanced, musical response. A precision passive crossover at 1.8 kHz (3rd/4th order) includes phase and response correction for coherent summation.
The robust 15 mm multiplex bass-reflex cabinet is finished in tough black or white texture and protected by a steel grille with acoustic foam. Hardware includes a top hat for stands, three M10 points for bracket mounting, a top carry handle and rubber feet. Connectivity is via 2 x Neutrik Speakon NL4 (pins 1+/-). Measuring 604 x 356 x 345 mm and weighing 24.2 kg, the V12 extends to 67 Hz (-6 dB) for use standalone or with subs. Ideal for speech, corporate AV, live music fills or main PA in smaller venues.
Includes
- Concert-Audio V12 Passive 12/1 PA Loudspeaker, 8 Ohm
