This is a brand new item.

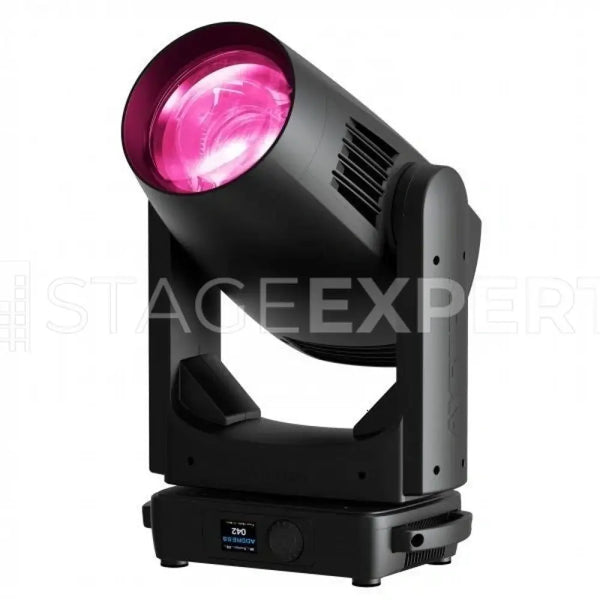

AYRTON LYRE LED MISTRAL SNEW equipment
Delivered in original box.
Full manufacturer warranty
Technical specifications
OPTICS
13-element 17:1 zoom high-resolution optic system
Beam aperture: 2.8° to 47°
Fast motorised linear zoom
Tempered anti-reflective coated lenses
168 mm frontal lens for greater performance
LIGHT SOURCE
20,000 lumens 8000 K white-light engine
Total luminaire output: up to 14,000 lumens
Colour temperature output: 7000 K
CRI: greater than 70
Rated source life: up to 40,000 hours
Flicker-free source management suitable for TV applications and all video-recorded events
MOVEMENT
Highly accurate positioning
Moving-head operated with either 8- or 16-bit resolution
High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
Pan and tilt automatic repositioning
Moving-head range: infinite rotation (pan), 263° (tilt)
COLOURS
Sophisticated colour mix system providing CMY colour mixing
Fixed colour wheel with progressive CTO, 4 colour temperature correction and 9 complementary colours
GOBOS
Indexable rotating gobo wheel with 9 HD glass gobos, plus open position
Adjustable-speed rotating gobo in both directions
Rotating Gobo diameter: 18.0 mm
Fixed multi-position gobo wheel with instant access to 19 HD glass gobos and 20 metal gobos on three concentric circles (patent pending).
Fixed & rotating gobo image diameter: 13.0 mm
FROST
Heavy frost filter
Light frost filter
EFFECTS
Graphic animation effect-wheel with bi-directional continuous rotation
Prism effect system comprising four combinable rotating prisms
DIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
White or colour strobe effect, with speed adjustment from 1 to 25 flashes per second
SOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
Information menu including hour counter, temperature, software version
HARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip function
Clicking jog wheel to set functions
Excess temperature protection
Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
XLR 5-pin male and female connectors for DMX connection
PowerCON TRUE1 male and female connectors for power connection
CONTROL
DMX 512 protocol, through DMX cable or a wireless system
DMX-RDM compatible
Stand-alone mode and Master/Slave modes
Local control panel, with LCD display
Choice of 3 DMX modes (from 32 to 46 DMX channels)
POWER SUPPLY
Electronic supply with active PFC
100 to 240 Volts – 50/60Hz
Power: 550 W maximum
COOLING SYSTEM
Advanced liquid cooling system
Self-adjusting variable speed fans for quiet operation (Auto mode)
Selectable ventilation user modes with a new Silent Mode
Safety protection against temperature excesses
HOUSING
Moving-head skeleton made of aluminium and steel metal plates
Base in die-cast aluminium
Aluminium and copper heatsinks
Moulded covers in self-extinguishing fire-retardant ABS PC (V0 class)
Two-side handles for transportation
Four heavy-duty feet for better stability
IP20 protection rating
Exterior finish: black (carbon)
INSTALLATION
Fastening-bracket system: two Omega ¼ turn brackets designed for use with standard clamps
Mounting points: four ¼ turn locking fittings allowing installation of Omega brackets on luminaire
Safety-cable attachment point
OPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support)
Maximum permitted ambient temperature (Ta max): 45° C (113° F)
Minimum permitted ambient temperature (Ta min): -10° C (14° F)
Minimum usage distance: 2 m (6.56 ft)
COMPLIANCE
EU (EMC & LVD):
EMC Directive 2014/30/EU
LVD Directive 2014/35/EU
US (Safety & EMC):
UL 1573
FCC Part 15, Subpart B: 2018
SIZE
Product: 365 x 622 x 212 mm (l x h x d)
Flight-case foam: 430 x 660 x 280 mm (l x h x d)
WEIGHT
Product: 27 kg
STANDARD EQUIPMENT INCLUDED
1.5 m power cable with powerCON True1 TOP
Stage Omega 1/4 turn bracket (x2)
KARIF LT moulded foam
